CHAPTER 7– SERVICE AND REPAIR
Installation:
1. Do not remove the plastic shields. If they happen to come off reassemble when replacing the
bracktets and display. These are glass protectors.
2. Align the new display assembly with the Left mounting bracket.
3. Align the 2 mounting holes and insert the 2 display mounting screws.
4. Repeat this for the Right mounting brackt.
5. Reinstall the mounting brackets with the display assembly into the cover.
Note: do not tighten screws until all screws have been installed.
6. Carefully reconnect the display cable the CPU board.

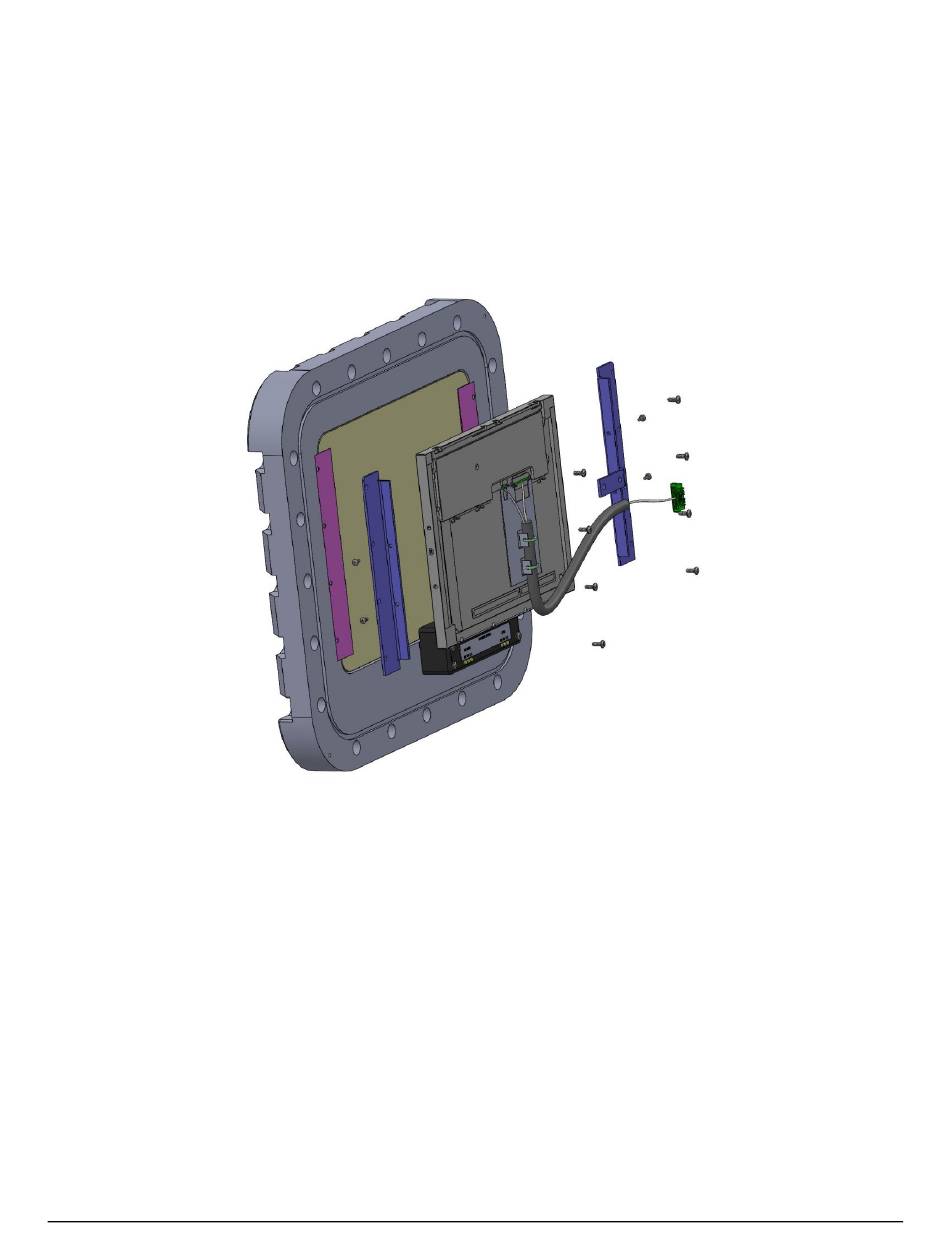

Figure 7.4
55
MultiLoad III/RCU III Hardware - Explosion Proof (EX) Installation Guide
Display Assembly removed from the Mounting Bracket
