Edwards STP Series Instruction Manual
Hide thumbs
Also See for STP Series:
- Instruction manual (167 pages) ,
- Instruction manual (163 pages) ,
- Instruction manual (23 pages)
Advertisement
Quick Links
MT-41E-AA1-A
Instruction Manual

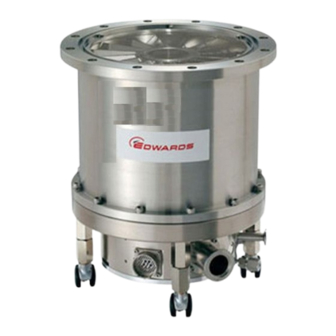

STP Series Turbomolecular Pumps
STP-A2203C3
(First Edition - a)
This Manual has extracted difference of the
STP-A2203 series and the STP-A2203C3. For
the "Safety Precautions", installation,
operation and maintenance, read the STP
pump Instruction Manual (A), STP- A2203
series Instruction Manual (B), and STP control
unit Instruction Manual (C).
Keep this Manual in a place where you can
quickly access it at any time.
Jan. 2008
Copyright 2008 Edwards Japan Limited. All rights reserved. Printed in Japan.
Advertisement
Related Manuals for Edwards STP Series
Summary of Contents for Edwards STP Series
- Page 1 Instruction Manual (A), STP- A2203 series Instruction Manual (B), and STP control unit Instruction Manual (C). Keep this Manual in a place where you can quickly access it at any time. Jan. 2008 Copyright 2008 Edwards Japan Limited. All rights reserved. Printed in Japan.
- Page 2 STP-A2203C3 Instruction Manual (excerpt) INTRODUCTION Thank you very much for purchasing Edwards’ turbomolecular pump. The turbomolecular pump is designed to be installed in the vacuum equipment to exhaust gases from it. This manual covers all items necessary to ensure safe installation, operation and...
-
Page 3: Table Of Contents
STP-A2203C3 Instruction Manual (excerpt) TABLE OF CONTENTS 1 Specifications...................1-1 Specifications for the STP Pump ................1-1 External Appearance of the STP Pump ..............1-2 TABLES Table 1.1 Specifications for the STP Pump................1-1 FIGURES Figure 1.1 External Appearance of the STP Pump (STP-A2203C3).........1-2... -
Page 4: Specifications
Mass The values shown in the table are typical.; They are not guaranteed. : Pumping speed, compression ratio, ultimate pressure and maximum gas flow are measured via a Edwards method. (Ultimate pressure is measured after baking.) : The maximum gas flow rate is measured under the following conditions. -
Page 5: External Appearance Of The Stp Pump
