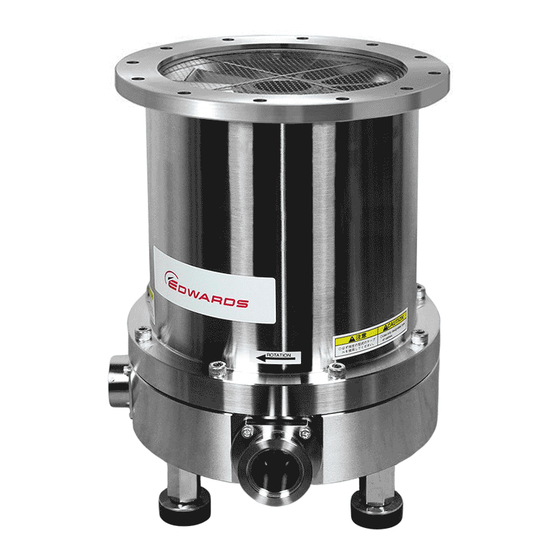

Turbomolecular pump
Hide thumbs
Also See for STP Series:
- Instruction manual (167 pages) ,
- Instruction manual (23 pages) ,
- Instruction manual (37 pages)
Table of Contents
Advertisement
Instruction Manual (B)
STP Series Turbomolecular Pumps
STP-A1603 Series
Pump Specific Information
Model name
STP-1603 series
STP pump consists of the three-volumed Instruction Manuals.
Instruction Manual (A):
Instruction Manual (B):
(This Instruction Manual)
Instruction Manual (C):
Voltage
200 - 240 Va.c.
STP pump generic Instruction Manual
Supplied with STP pump
STP pump specific information
Supplied with STP pump
STP control unit Instruction Manual
Supplied with STP control unit
Copyright 2008 Edwards Japan Limited. All rights reserved. Printed in Japan.
MT-46E-101-A
