Introduction
The library contains a single Library Control Module (LCM). The LCM provides the
logic and circuitry to display the user interface on the library's touch screen. The LCM
includes an embedded web server to provide remote access to the user interface
through the Remote Library Controller (RLC) using a standard web browser.
shows the available connections on the LCM.
Note:
Depending on the ASM service level you purchased, the LCM may not be
included in your on-site ASM kit.
The figures in this document show the Spectra T380 library. The relative
locations of the components and the procedures for replacing them are
the same for both the Spectra T200 and Spectra T680 libraries.
LMC reset
Keyboard
Mouse
USB port

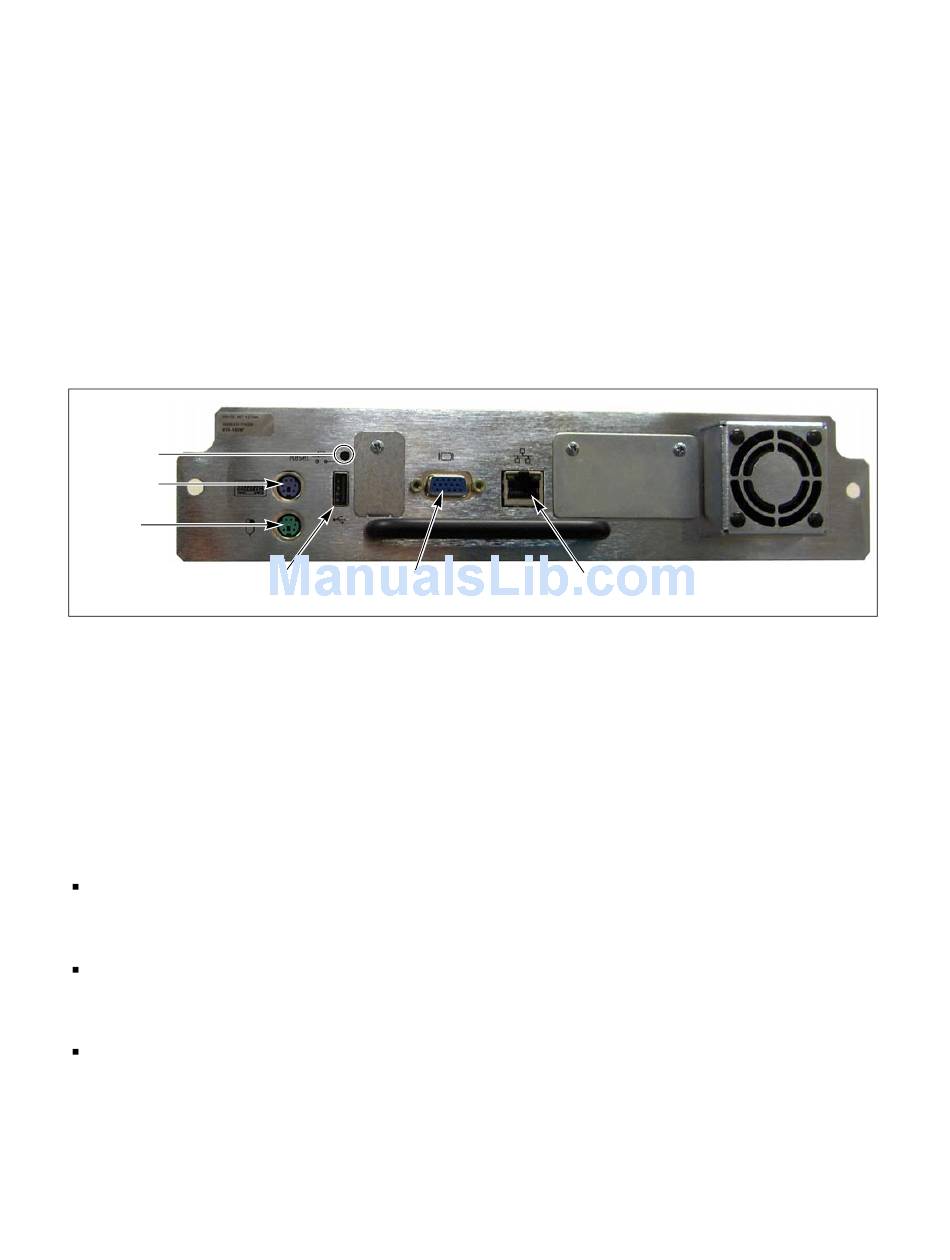

Figure 1 Connections to the LCM.

Preparing for Maintenance

Ensure ESD Protection

The repair environment for the library must be free of conditions that could
cause electrostatic discharge (ESD). To protect the library from ESD, follow these
procedures when repairing or testing the library:
Place a static protection mat on the work surface used while removing and
installing library components. Use a 1-megaohm resistor to ground the static
protection mat.
Wear a static protection wrist band whenever you handle library components that
have been removed from their antistatic bags. Connect this wrist band to the static
protection mat or to other suitable ESD grounding.
Keep all components in antistatic bags when not in use.
Monitor connector Ethernet connector
