Summary of Contents for BOXLIGHT AYW502

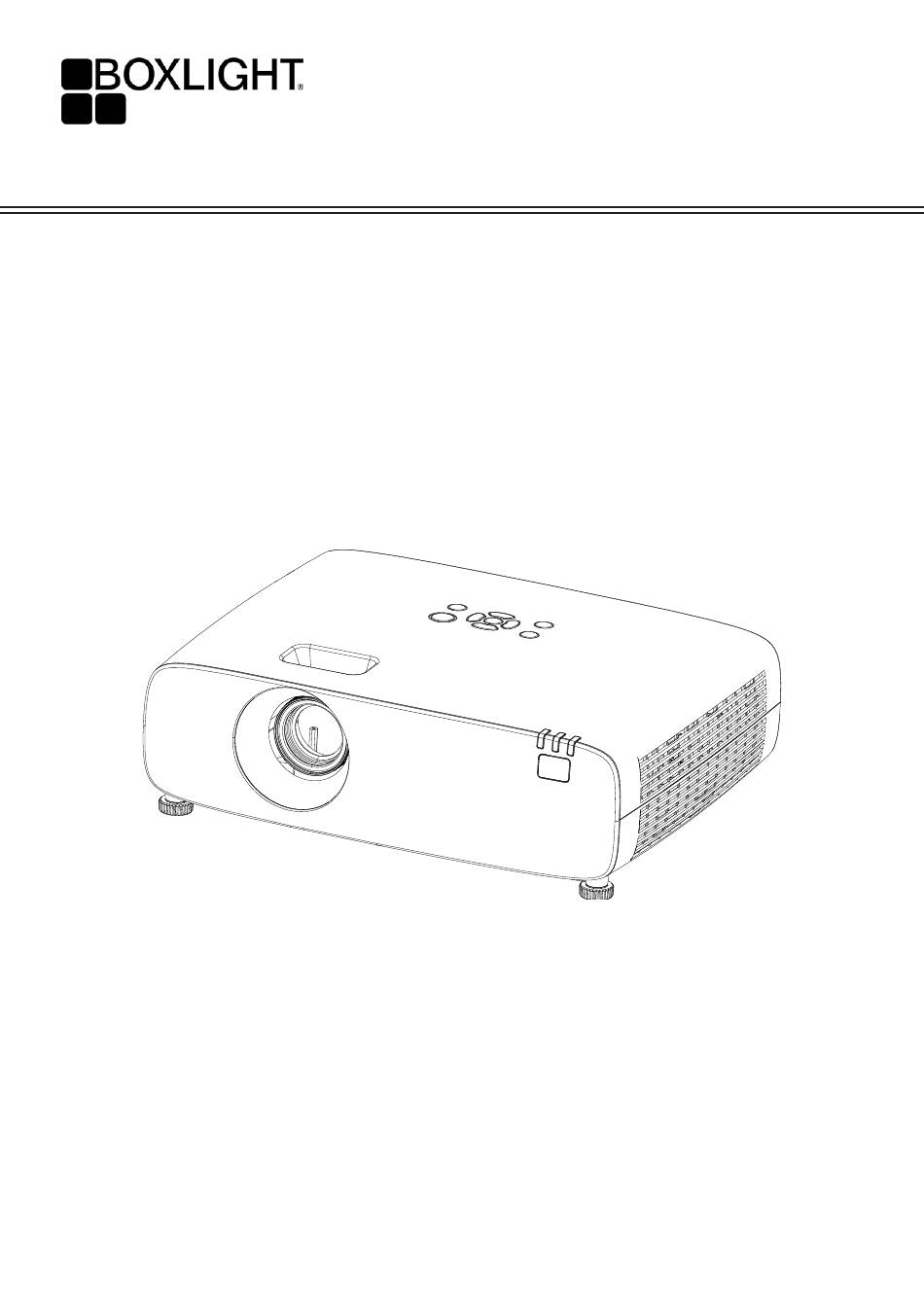

  • Page 1 AYW502 Owner's manual Multimedia Projector V1.0...

  • Page 2: Features And Design

    Features and Design This Projector is designed with the most advanced technology for durability and ease of use. This projector utilizes built-in multimedia features, a palette of 1.07 billion colors and matrix liquid crystal display (LCD) technology. Simple Computer System Setting Security Function The projector has the Multi-scan system to The Security function helps you to ensure secu-...

  • Page 3: Table Of Contents

    Table of contents Features and Design ......Closed caption ...........40 Table of contents Keylock function.........41 ........3 Safety operation guideline Laser control ..........41 .....4 Compliance Sound ............41 ..........13 Accessories HDMI setup ..........41 ..........14 Expand Overview Language ...........42 Name and function of your projector Auto Setup ..........42 Front/Rear/Bottom ........16 Keystone ............43...

  • Page 4: Safety Operation Guideline

    Safety operation guideline Safety instructions This document and your projector employ certain symbols to illustrate how to use your projector safely. They are described below: Please get yourself familiar with them before going through this document. Ignoring messages indicated by this symbol may lead to personal injuries Caution or deaths due to human errors.
  • Page 5 Safety operation guideline Warning: DONOT leave the projector in the rain or expose it to moisture environment to prevent fire or electric shock. The proposed plug should not be used in an extension cord outlet or other outlet unless the pin is fully plugged in.
  • Page 6 Safety operation guideline Disposing of your used product In the European Union EU-wide legislation as implemented in each Member State requires that used electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes projectors and their electrical accessories.
  • Page 7 Safety operation guideline Caution Precautions on air outlet / air intake: ● Keep adequate clearance around your projector for its ventilation and cooling. See figure below for the least clearance requirements. The least clearance is a MUST when your projector is placed within a cabinet or other closed environment. ≥...
  • Page 8 Safety operation guideline Note: Precautions on using your projector: ● DO NOT project the same image for long time as residual images may be left in the panel. This is a property of LCD panel. ● Use power as indicated in tags attached to your projector. If you have doubts over avail- able power type, consult your dealer or local power company first.
  • Page 9 Safety operation guideline About High Altitude mode ● Set [HIGH ALTITUDE] to [ON] in the Setting menu when using the projector at altitudes ap- proximately 1700 meters or higher. Using the projector at altitudes approximately 1700 meters or higher without setting to [HIGH ALTITUDE] can cause the projector to overheat and the protector could shut down.
  • Page 10 Safety operation guideline Laser radiation range The figure below shows the maximum range of laser radiation.() Horizontal / Vertical Angle Angle (Unit: degree) Model Wide Tele Wide Tele 20.6 12.6 25.7 16.1 WXGA 22.3 13.7 24.7 15.3 Safety Labels The caution and the explanatory labels of the LASER PRODUCT in CLASS 1 conforming to IEC 60825-1 Second edition, and in Class 1 conforming to IEC 60825-1 Third edition are stuck on the below indicated positions.
  • Page 11 Safety operation guideline Air ventilation Openings in the casing are designed for ventilation and overheating prevention. DO NOT block or cover these openings to keep your projector in normal operation and from overheating. Note: Heat exhaust at the air outlet Keep the following in mind when using or installing your projector: •...
  • Page 12 Safety operation guideline Note: Precautions on ceiling mount bracket installation: M4xL8 ● Get qualified technician to install the ceiling mount bracket. ● Warranty of your projector does not cover hazards and damage caused by using ceiling mount brackets provided by unauthorized dealers.

  • Page 13: Compliance

    Compliance FCC Caution Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 14: Accessories

    INPUT VIDEO HDMI INPUT AUTO MENU VIDEO HDMI AUTO MENU KEYSTONE IMAGE FREEZE PATTERN Accessories SCREEN LAMP MUTE INFO. KEYSTONE IMAGE FREEZE PATTERN BLANK SCREEN LAMP MUTE INFO. D.ZOOM VOLUME TIMER BLANK D.ZOOM VOLUME TIMER AC Power Cord VGA Cable Remote Control INPUT VIDEO...

  • Page 15: Overview

    Overview This chapter presents names and functions of individual component.

  • Page 16: Name And Function Of Your Projector

    Name and function of your projector ① Projection Lens Front/Side ② Focus adjustment ring ③ Zoom adjustment lever ② ③ ④ ⑤ ⑥ ④ Control Panel ⑤ LED indicator ⑥ Exhaust vent ⑦ IR receiver (Front) Caution: ① ⑦ Air exhaust emits hot air. DO NOT place heat sensitive objects near it.

  • Page 17: Terminal

    Name and function of your projector Terminal ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ② ⑪ ⑫ ① RS-232C ① VIDEO IN ⑥ VGA OUT Connect video output signals to this terminal. Transmit signals from ⑤ to other displays ⑦...

  • Page 18: Remote Controller

    Name and function of your projector Remote controller ⑧  button - Select item or adjust data at OSD ② ① menu. - Select the image display area in digital zoom + mode. INPUT ④ ⑨ OK VIDEO HDMI ③ Enter the sub-menu or select an item.

  • Page 19: Remote Controller Operation Range

    Name and function of your projector Remote controller operation range Point your remote controller to the IR receiver of your projector 30° Maximum operation range of your remote con- 30° troller is an angle within 30° perpendicular. The Maximum operation distance in front of the IR receiver is 7 meters.

  • Page 20: Installation

    Installation This chapter introduces the information of install.

  • Page 21: Set Up Your Projector

    Installation Set up your projector ● Ambient brightness may affect your projection image quality. For the optimal image effect, it is recommended to control brightness in your environment. ● Values shown in figure below are approximates only. They may differ from the actual ones. WUXGA <16:10>...

  • Page 22: Connect The Ac Power Cord

    Installation Connect the AC power cord Standard voltage employed by your projector is AC 100-240V. It adapts to different input voltage automatically. Your projector employs 2-phase power cord with neutral ground cable. Do not use any other type of power cords or you may face the risks of electric shock. In case you have any doubt on type of power cord you are using, please call authorized dealer or service cen- ter for help.

  • Page 23: Connection To Equipment

    Connection to equipment Connection to computer Cables used for connection: ● VGA cable ● USB cable* ● RJ45 cable* ● HDMI cable* ● USB device* ● Serial cable* (*Cables are not supplied with the projector) HDMI output / input output RS232 USB-A output...

  • Page 24: Connection To Video And Audio Equipment

    Connection to equipment Connection to video and audio equipment Cables used for connection: ● Video cable* ● Audio cable* ● HDMI cable* (*Cables are not supplied with the projector) VIDEO AUDIO HDMI output input / output output Video Audio HDMI cable cable cable...
  • Page 25 Operation This chapter introduces you to basic operation of your projector.

  • Page 26: Basic Operation

    Basic operation Power on your projector 1. Connect all external equipment to your projector (e.g. computer or media player) before power- ing it on. 2. Connect AC power cord of your projector to an AC power socket. The Power indicator turns on in red.

  • Page 27: Power Off Your Projector

    Basic operation Power off your projector 1. Press the Power button at the control panel or the remote controller, then “Power off?” message displays. 2. Press the Power button again within 4 seconds after the “Power off?” message Power off ? prompted to you.

  • Page 28: Adjustment Pad

    Basic operation Adjustment pad ● You may use the adjustment leg to raise your projector up to 18 mm / +3.5°. ● Turn the pad to tilt your projector to required height. ● To raise your projector, turn both pads clockwise. ●...

  • Page 29: Auto Setup Function

    Basic operation Expend Auto setup function Auto Setup Auto setup Press the AUTO button on your remote controller to auto execute settings given in Input search the Auto Setup menu (including Auto Input Auto PC adj. Searching, and Auto PC Adjusting). Expend Auto setup Input search...

  • Page 30: How To Use The Osd

    Basic operation How to use the OSD Main menu Sub menu Display Auto PC adj. Fine sync H Position V Position H. Size Aspect Normal Project way Front Menu position Center Background display Blue System 1024 x 768, 60Hz Menu operation 1.

  • Page 31: Menu Item Overview

    Basic operation Menu item overview Main menu Sub menu Display ① Auto PC adj. Fine sync ② H Position V Position ③ H. Size Aspect Normal ④ Project way Front Menu position Center ⑤ Background display Blue System 1024 x 768, 60Hz ⑥...

  • Page 32: Remote Controller Operation

    Basic operation Remote controller operation Use your remote controller for common operations. Auto setup function (AUTO) Press the AUTO button to auto execute the INPUT settings set in the Auto Setup menu (including VIDEO HDMI Auto Searching and Auto PC Adjusting) Image mode selection (IMAGE) AUTO MENU...

  • Page 33: Input Selection

    Input selection Input select Remote control Direct Operation Press VGA, HDMI on the remote control as input source. INPUT INPUT Menu operation VIDEO HDMI HDMI 1 Press INPUT button on the remote control or AUTO MENU control panel to display the input select menu. 2 Press ...

  • Page 34: Display

    OSD Setting-Display Auto PC Adjusting The Auto PC Adjusting function may get Total Dots, Horizontal and Vertical position, Display area H, and Display area V aligned with computer input. Direct Operation Remote control Press Auto button on the remote control to INPUT launch the Auto PC Adj.

  • Page 35: Manual Computer Adjustment

    OSD Setting-Display Manual PC signal format adjustment The scan system of your projector may fail to detect signal format used by certain computers as they opted some special signal format. The manual computer adjustment function of your projector enables you to adjust individual parameter to align with most special signal format. 1 Press MENU button on the remote controller or control panel and the OSD displays.
  • Page 36 OSD setting-Display Project way Project way menu Press button to select the project way. Display Front ..Projects to front screen when projector is Auto PC adj. front standing. Fine sync Rear ..Projects to rear screen when projector is H Position front standing.
  • Page 37 OSD setting-Display System The projector automatically tunes to various types of computers with its function of Multi-scan system and Auto PC Adjustment. If a computer is selected as a signal source, the projector automatically detects the signal format and tunes to project proper images without any additional setting. One of the following messages may appear when input source as computer: When the projector cannot recognize System menu...

  • Page 38: Color Adjust

    OSD setting-Color Adjust Color Adjust (with PC input source) Menu operation 1 Press the MENU button on remote controller and the OSD displays. Press button select Color Adjust icon, press button or OK button to confirm your selection. 2 Press button to point to required item and press OK button to confirm your selection.

  • Page 39: Color Adjust (Video Signals)

    OSD setting-Color Adjust Color Adjust (with Video input source) Menu operation 1 Press the MENU button on remote controller and the OSD displays. Press button select Color Adjust icon, press button or OK button to confirm your selection. 2 Press button to point to required item and press OK button to confirm your selection.

  • Page 40: Setting

    OSD setting-Setting Setting Your projector comes with convenient adjustment function. 1 Press the MENU button on remote controller and the OSD displays. Press button to select Setting icon, press button or OK button to confirm your selection. 2 Press button to point to required item and press OK button to confirm your selection. Direct power on Setting Setting the projector to be turned on automatically...

  • Page 41: Keylock Function

    OSD setting-Setting Keylock Set the security for the projector operation. Setting Direct power on Standby mode O ff... The control panel and remote controller High land are effective. Cooling fast 0 sec Key lock P rojector... Lock the operation of the control Contrast optimization Laser control panel.

  • Page 42: Expand

    OSD setting-Expand Expand Select the Expend menu to set up other functions of your projector. 1. Press the MENU button on remote controller and the OSD displays. Press button to select Expand icon, press button or OK button to enter the submenu. 2.

  • Page 43: Keystone

    OSD setting-Expand Keystone Keystone menu This function is used to correct the distortion image. Expend Keystone Keystone Sets whether or not to keep the keystone Keystone Store correction after turn off the projector or plug out H/V Keystone the power cord. 4-Corner correction 6-Corner correction Store ..
  • Page 44 OSD setting-Expand Curved correction (for WUXGA model only) Adjust when the linearity is not uniform or the vertical and horizontal lines are distorted. Press▲▼◄►to adjust the item. Items Operation Adjustment Press Adjust the right & left of the◄ & ► the width button Curved correction...

  • Page 45: Logo

    OSD setting-Expand Logo This function allows you to customize the screen logo with Logo select, Capture, Logo PIN code lock and Logo PIN code change functions. Logo Select This function decides on the starting-up display Logo from following options. Default . Show the factory-set logo. Expend User ..

  • Page 46: Security

    OSD setting-Expand Security Security This function allows you to use the PIN code lock and PIN code change functions to set the Expend security for the projector operation. Language Auto setup PIN code lock Keystone This function prevents the projector from being Logo operated by unauthorized persons and provides Security...

  • Page 47: Power Management

    OSD setting-Expand Power management Power management For reducing power consumption as well as maintaining the lamp life, the Power management Expend function turns off the projection lamp when the Language projector is not operated for a certain period. Select Auto setup one of the following options: Keystone Logo...

  • Page 48: Network

    OSD setting-Expand Network Function : PC controls projector via LAN. Preparation: 1. Equipments: PC, projector, cables 2. Connection procedures: Connect the projector to routers or switches of the LAN by direct or cross cable. If it fails to connect PC and projector by parallel cable, please switch to cross cable as suggested. 3.

  • Page 49: Memory Viewer

    OSD setting-Memory Viewer Memory Viewer The Memory Viewer function allow to project the pictures which are stored in the USB memory Device. This function only available when the USB memory device inserted into the projector. 1 Press MENU button on the remote control to display screen menu. 2 Press ...

  • Page 50: Info

    OSD setting-Info. Information The information menu is used to the detect signal of projected image and running state. Menu operation info. menu Press MENU button on the remote control or control panel to display the screen menu. Press  to select Info., the information menu Info.

  • Page 51: Description On Using Useful Function

    Description on using useful function...

  • Page 52: Lan Control Operation

    Description on network control operation LAN control Function : PC controls projector via LAN. Preparation: 1. Equipments: PC, projector, cables 2. Connection procedures: Connect the projector to routers or switches of the LAN by direct or cross cable. If it fails to connect PC and projector by parallel cable, please switch to cross cable as suggested.
  • Page 53 Description on network control operation 4. Activate the Web browser in the personal computer. 5. Enter the IP address + /html (i.e. "192.168.1.100/html") set by the projector into the URL input field of the Web browser. (When entering the IP address only, Web browser will open Crestron Roomview page.) 6.
  • Page 54 Description on network control operation "System Status" page Display the status of the projector for the following items. ① ② ③ ① Model Name ③ LAN Status Displays the model No. of the projector. Displays the connection status of the LAN. ②...
  • Page 55 Description on network control operation ① Brightness ④ Color Adjusts the brightness of the projected image. Adjusts the color saturation of the projected image. ② Contrast Adjusts the contrast of the projected image. ⑤ Tint Adjusts the skin tone of the projected image. ③...
  • Page 56 Description on network control operation "Network Setup" page ① ② ① LAN Setup Gateway Select [Obtain an IP address automatically] Enter the default gateway address when if you want to enable the DHCP client. not using a DHCP server. IP Address Enter the IP address when not using a DHCP Enter the DNS server when not using a server.

  • Page 57: Network Display Function

    Description on network display operation Network Display function 1. PwPresenter software: when "Network" is selected in Source Select, you can project the current computer images via network. Input the IP address of the projector in webpage to enter the Network Display System, click "Download"...
  • Page 58 Description on network display operation Play/Pause ② Play or pause the selected image. ③ Choose capture mode Choose a capture mode from "Full Screen", "Fixed Size" or "Alterable." ④ Parameters Setting Basic Setting Setting language, region of capture image etc. Advanced Setting Setting image quality, network port etc.
  • Page 59 Description on network display operation Multicast Setting Setting Sound volume, Bandwidth and Capture rate etc. ⑤ Network Display Management Setting device and password management. ⑥ Disconnect the projector.

  • Page 60: Memory Viewer Function

    Description on using Memory Viewer function Memory Viewer function The Memory Viewer function is used to project the pictures which are stored in the USB memory when the USB memory is inserted into USB A(VIEWER) terminal of the projector. Memory Viewer function supports the following image files. Extension Format Description...
  • Page 61 Description on using Memory Viewer function Play the PDF Playing the PDF file. press ▲▼◄► to select a PDF file and press the OK button, playing the PDF on the full screen. Displays the previous or next page. The page number increases or decreases by 5 pages. The page number increases or decreases by 1 page.

  • Page 62: Usb Display Function

    Description on using USB display function USB Display function The USB Display function is used to project the image from the computer which is connected to USB-B (DISPLAY) terminal of the projector by a USB converting cable. ■ When using Windows Windows operation environment Windows XP, Windows7 32/64 bit, Windows8.1 32/64 bit, Windows10 32/64 bit...
  • Page 63 Description on using USB display function ■ When using Mac OS Mac OS operating environment Mac OS X 10.5, 10.6, 10.7, 10.8, 10.10, 10.11, 10.12, 10.13 Power PC G4 1GHz or faster Amount of memory 512 MB or more Hard-disk free space 20 MB or more Display Resolution 640 x 480 to 1600 x 1200 ●...

  • Page 64: Maintenance

    Maintenance This chapter describes the regular maintenance procedure of your projector to ensure its optimal operation status for long.

  • Page 65: Regular Maintenance

    Regular maintenance LED indicator The LED indicator shows status of projector protection function. Check POWER, STATUS and LIGHT indicator for good maintenance operation. Note: Unplug the AC power cord in case of any abnormality as it may lead to fire or electric shock.

  • Page 66: Clean The Lens

    Regular maintenance Clean your projector when it is contaminated by foreign matter or its display effects are getting worse. Note: Unplug the AC power cord before any cleaning operation. Clean the lens Unplug the AC power cord before cleaning. Gently wipe the projection lens with a cleaning cloth that contains non-abrasive camera lens cleaner, or use a lens cleaning paper or commercially available air blower to clean the...

  • Page 67: Appendix

    Appendix...

  • Page 68: Troubleshooting

    Appendix Troubleshooting Check the following before calling your dealer or service center: Troubleshooting Solution Power on failure – Plug the power cord of your projector in an AC socket. – Check the POWER indicator flash red. – Check the POWER indicator lighting red and STATUS indicator flahing red.
  • Page 69 Appendix Auto PC Adjusting – Check input signal. Auto PC Adjusting function is disable in 480p, function failure 576p, 720p, 480i, 576i, 1080i or 1080p mode. Settings do not save after – Make sure you have selected Store after settings the adjustment. power off Some settings do not keep without selecting with Store.

  • Page 70: Led Indicator Status

    Appendix LED indicator status Check LED indicator to learn status of your projector. Light indicator POWER STATUS LIGHT Status of your projector Green / Red / Green / Red / Green / Red / Orange / Blue Orange Orange Power Off (without AC power supply). Network Standby status.
  • Page 71 Appendix The SPI communication of Laser Light Source is error. (0.5 sec. on (0.5 sec. on 0.5 sec. off) 0.5 sec. off) The Laser Light Source get into standby mode caused by the error situation. (0.5 sec. on (0.5 sec. on 0.5 sec.

  • Page 72: Compatible Computer Screen

    Appendix Compatible computer screen Your projector is designed to accept every analog computer signal below Dot Clock 160MHz and digital computer signal below Dot Clock 150MHz. See table below for details on resolution and relevant frequency. Signal Frequency Signal Frequency Input Resolution Input...

  • Page 73: Terminal Configuration

    Appendix Terminal configuration VGA IN / VGA OUT Terminal (D-sub 15) Red (Input/output) ----- Green(Input/output) Grounding (field synchronizing) Blue(Input/output) Grounding ----- DDC data Grounding Horizontal synchronizing (line synchronizing) (compound sync.)input/output Vertical synchronizing input/ Grounding(red) output Grounding(green) DDC Clock Grounding(blue) SERIAL Terminal(D-SUB 9) ----- ----- -----...

  • Page 74: Menu Tree

    Appendix Menu tree Default Main menu Sub-menu Setting Remarks value Auto PC adj. Fine sync 0-31 H Position -5 - +5 V Position -5 - +5 The range of H H Size -15 - +15 Size differs from signals. Normal Aspect 16:9 16:10...
  • Page 75 Appendix Default Main menu Sub-menu Setting Remarks value Direct power on On/Off Standby Mode Normal/Eco mode High land On/Off Cooling fast Normal/0 Sec/30 Sec 0 Sec Closed caption Off/CC1/CC2/CC3/CC4 Key lock Off/Projector/Remote controller Normal/Full Light source normal/Eco 1/ Normal mode Laser Control Eco 2 Setting...
  • Page 76 Appendix Main menu Sub-menu Setting Default value Remarks Filter counter Filter Counter Timer Filter counter reset Off / Gray scale（1-4） / Color bar / Test pattern Red / Green / Blue / Cross hatch / White / Black / Raster gray DHCP(On/Off) Off Expand IP address...

  • Page 77: Dimensions

    Appendix Dimensions Unit: mm Screw Holes for  183mm Ceiling Mount Screw: M4 Depth: 8.0 149mm 52mm 95mm 183mm M4X4 390mm 127mm 294mm...

  • Page 78: Pin Code Memorandum

    Appendix PIN code memorandum Write down the PIN code in the blank below and keep it, If you forgot or lost the number and unable to operate the projector, contact the service center. Factory default PIN code 111* PIN code lock Factory default PIN code 111* Logo PIN code Lock No.
