Note: See "Dimensions," p. 9
dimensions.
Panel Component Installation
(All Kits)
Install the following components listed in
approximate locations as shown in
Table 8. AFD panel component installation
Index Description
1 SUPPORT, CHOKE CORE
2 DIN RAIL, 4 in.
3 FUSE HOLDER, 1F1-1F3 – REUSE (4 to 5 amp)
4 DIN RAIL END-STOP
5 BUSS BAR, STRAIGHT
6 BUSS BAR, FORMED
7 RELAY SOCKET, 4PDT (for relays 1K14 and 1K15)
8 RELAY, 4PDT, 8A (relays 1K14 and 1K15)
9 Dual Relay Output 1A8
10 FUSE HOLDER, 1F4-1F6 – REUSE (6 to 10 amp)
11 DIN RAIL, 7.5 in. REUSE
Note: Items 3, 10, and 11 already exist and are re-used.

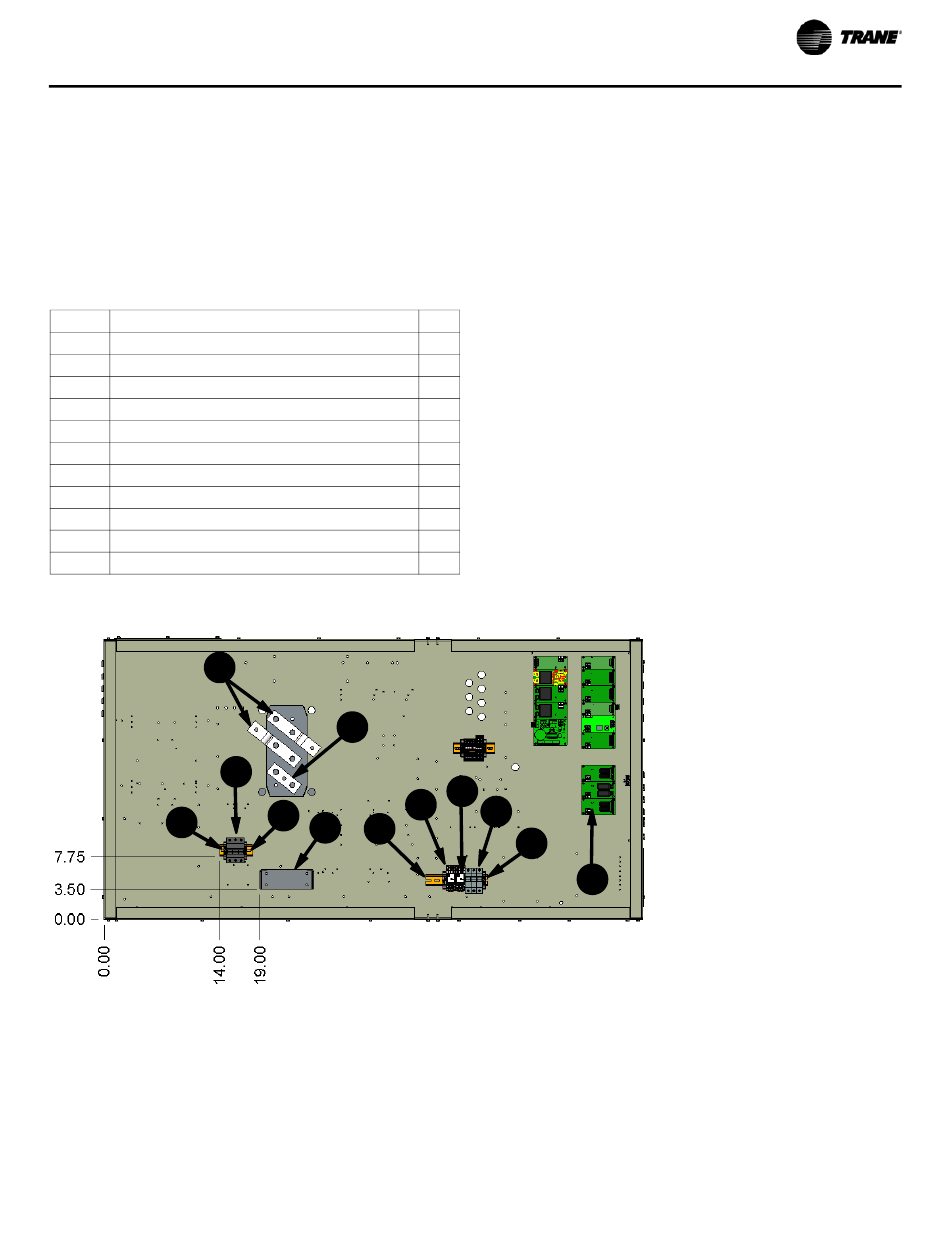

Figure 38. Panel component installation locations
6
4
SO-SVN048A-EN
for conduit location
Table 8 at the
Figure 38.
5
3
2
1
11
Qty
1
1
1
4
1
2
2
2
1
1
1
43
8
7
10
4
9
Installation
