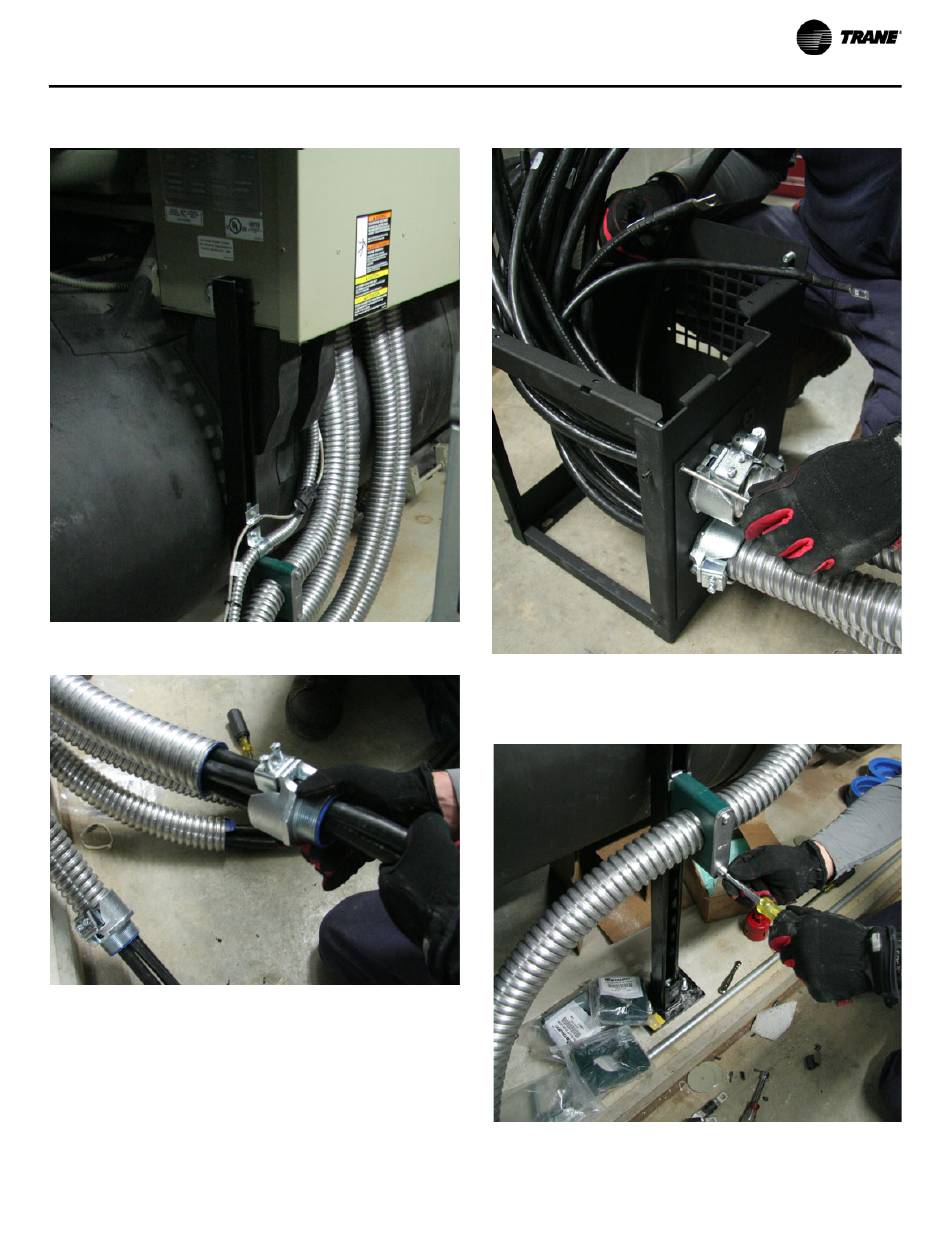

Figure 49. Modbus
cable and control power mounting
Figure 50. Conduit connector assembly
6. Install pedestal adaptor plate to the pedestal.
SO-SVN048A-EN
Figure 51. Adaptor plate assembly
7. Install the power wire conduits to the strut channel using
supplied brackets.
Figure 52. Power wire conduit mounting
Installation
41
