6. After the download is complete, two confirmation dialog
boxes appear. Click OK in each dialog box.

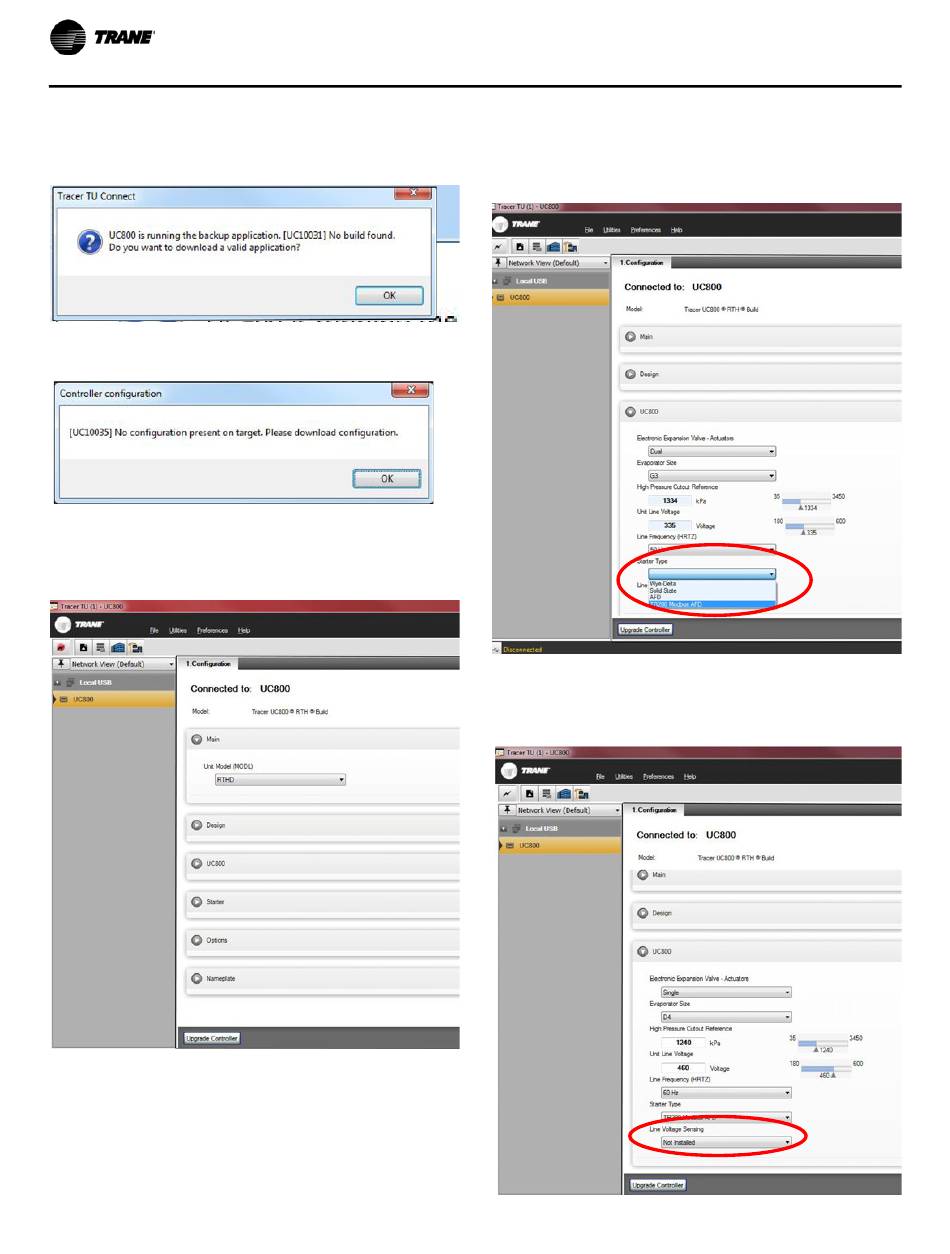

Figure 84.
Figure 85.
7. Tracer TU's Configuration tab appears; refer to
Figure 86.
Figure 86.
Important: Trane recommends configuring the unit
manually rather than browsing to an existing
Chiller Service Report electronically.
8. Because the new AFD is being retrofit with Modbus
communications, reference the Chiller Service Report in
PDF or XML to configure the unit for best results.
52
a. For Starter Type (located in the UC800 section or in the
Starter section, depending on actual software version
used), select TR200 Modbus
Figure 87.
b. For Line Voltage Sensing, select Not Installed; refer
to Figure
Figure 88.
®
client
®
AFD; refer to
88.
Figure 87.
