Installation

2. If a Chiller Service Report has not already been generated,

Trane recommends creating one at this time. Select

Reports > Chiller Service to open the Chiller Service

Report dialog box, and save the report both as XML and

PDF (check Convert Report to PDF). Be sure to note the

location where the files will be stored, or use Browse to

specify a different location. Click Save.

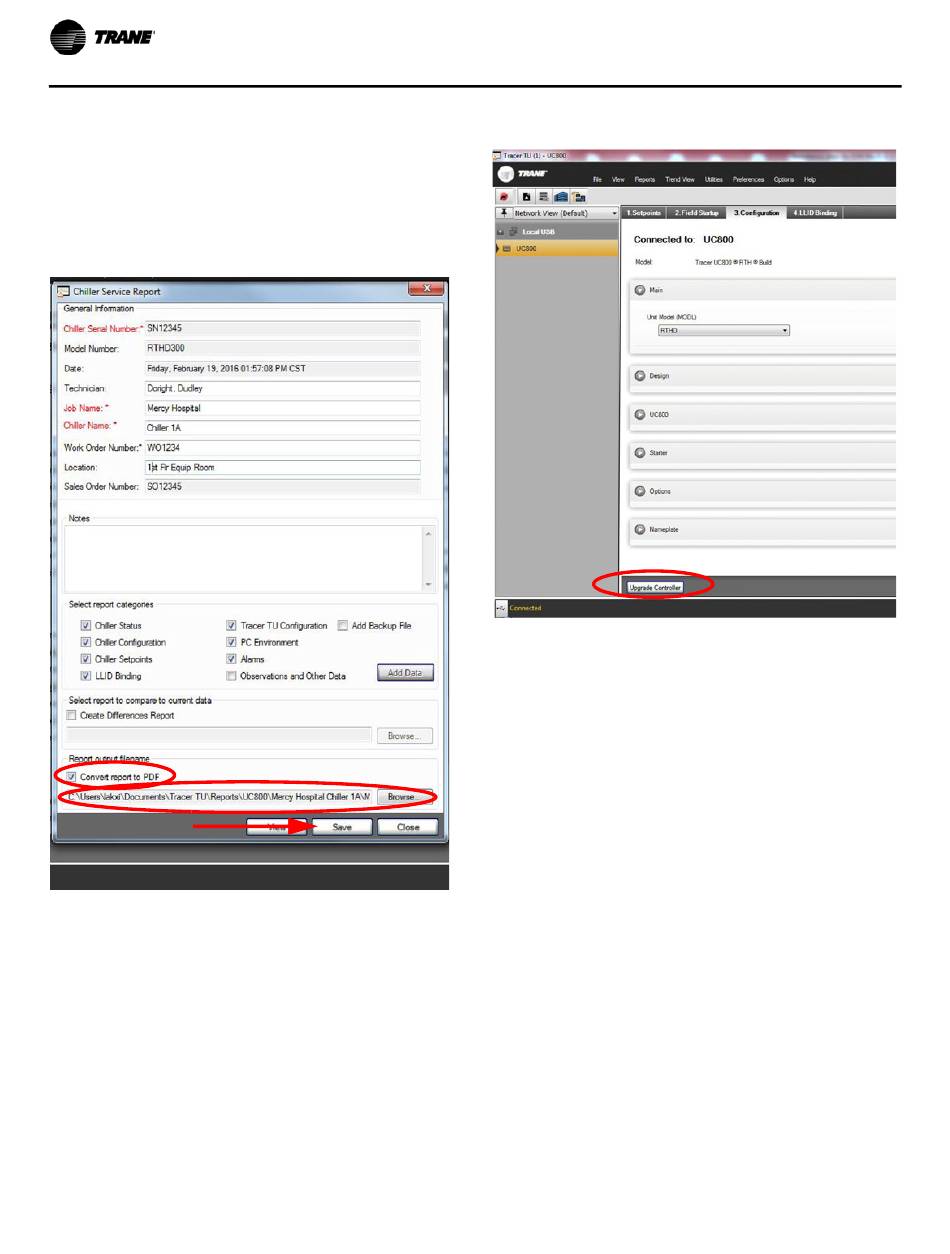

Figure 98.

3. Navigate to the Configuration tab (Utilities > Equipment

> Configuration, or double-click the wrench icon on the

right-hand side of Tracer TU and then click the

Configuration tab). Click the Upgrade Controller button.

Figure 99.

4. The Application Software Download dialog box appears,

allowing selection of chiller products. For Product Name,

select RTHD, and for Version, select 3.03 (or newer).

Then click Upgrade Device.

Note: If version 3.03 (or newer) does not appear for

selection, obtain that or a newer version and install

it into Tracer TU on the service computer. Refer to

"Preparing Tracer® TU on the Service Computer,"

25.
