Installation

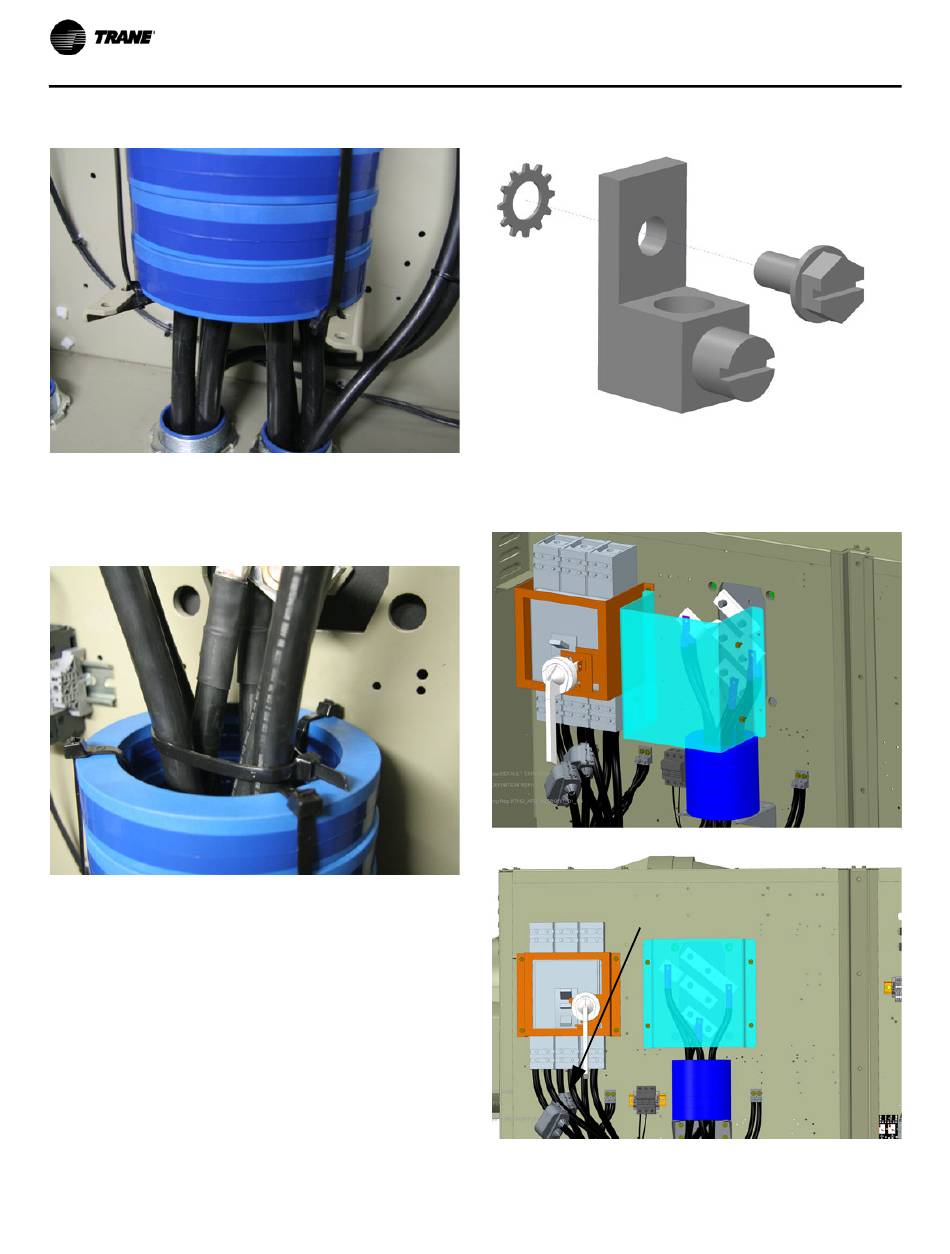

Figure 63.

7. Use provided tie wraps to secure the cores to the core

bracket and use tie wraps to keep the power wire

positioned in the center of the cores.

Figure 64.

8. Install ground terminals in the control panel and connect all

ground wires. Drill as needed and use tapping screws and

star washers provided. See

Table 67, p. 47

for location.

Figure 65.

9. Align cover over motor terminals and drill four holes for

mounting. Install cover over motor terminals using four

screws (provided); refer to

Figure 66. Cover installation

Wire tap supplied

on all options

Figure

66.

SO-SVN048A-EN
