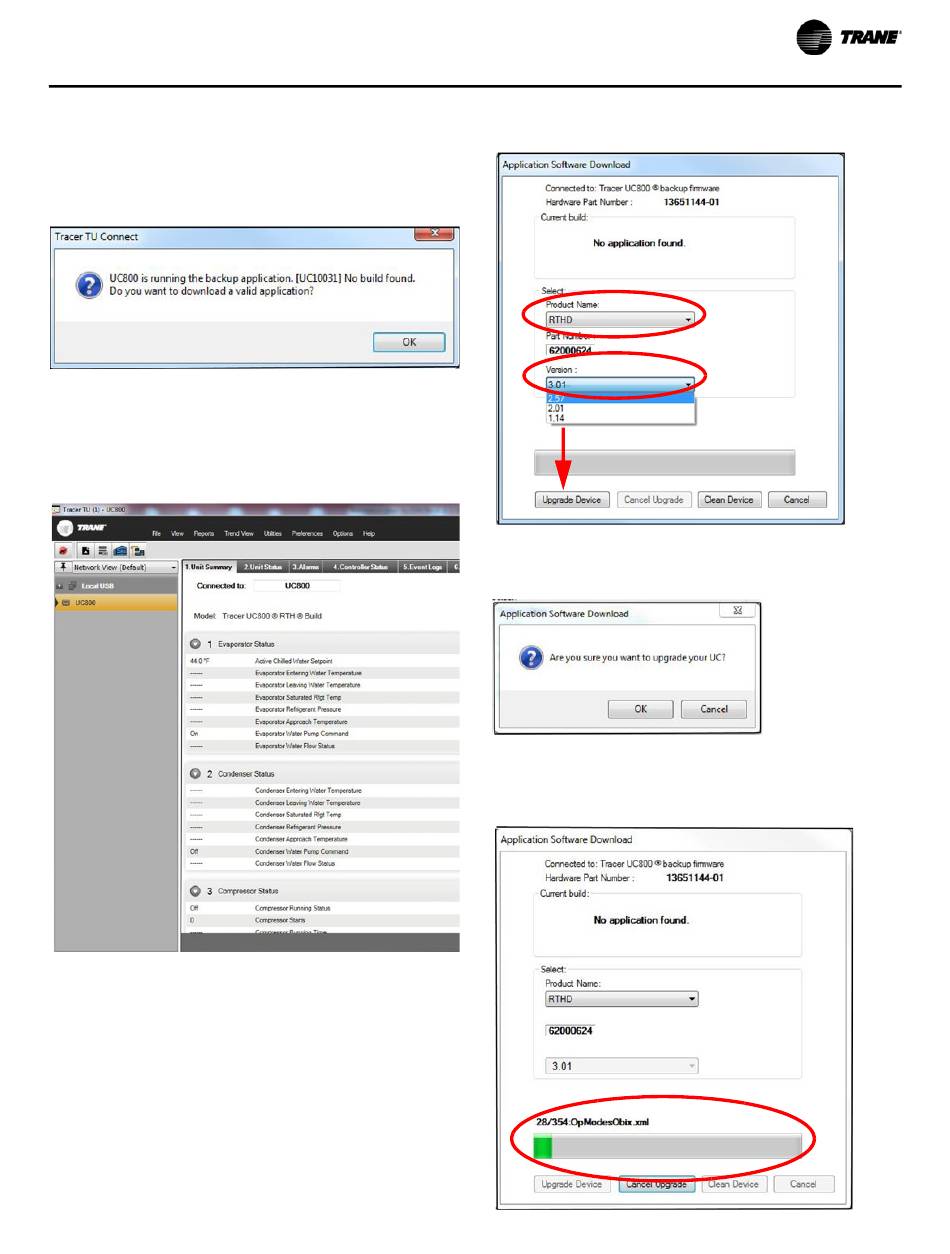

a. If the UC800 target controller has no application
already installed, the Tracer TU Connect dialog box
appears; refer to Figure
Step 3, p. 51.
Figure 79.
b. If the UC800 target controller has an application
already installed, Tracer TU's Unit Summary tab
appears; refer to Figure
with Software Already Installed," p.
Figure 80.
3. The Application Software Download dialog box appears,
allowing selection of chiller products. For Product Name,
select RTHD, and for Version, select 3.03 (or newer).
Then click Upgrade Device.
SO-SVN048A-EN
79. Click OK and proceed to
80. Skip to "Existing UC800
55.
Figure 81.
4. A confirmation dialog box appears. Click OK to continue.
Figure 82.
5. The download's progress is indicated by a bar at the
bottom of the Application Software Download dialog box.
Figure 83.
Installation
51
