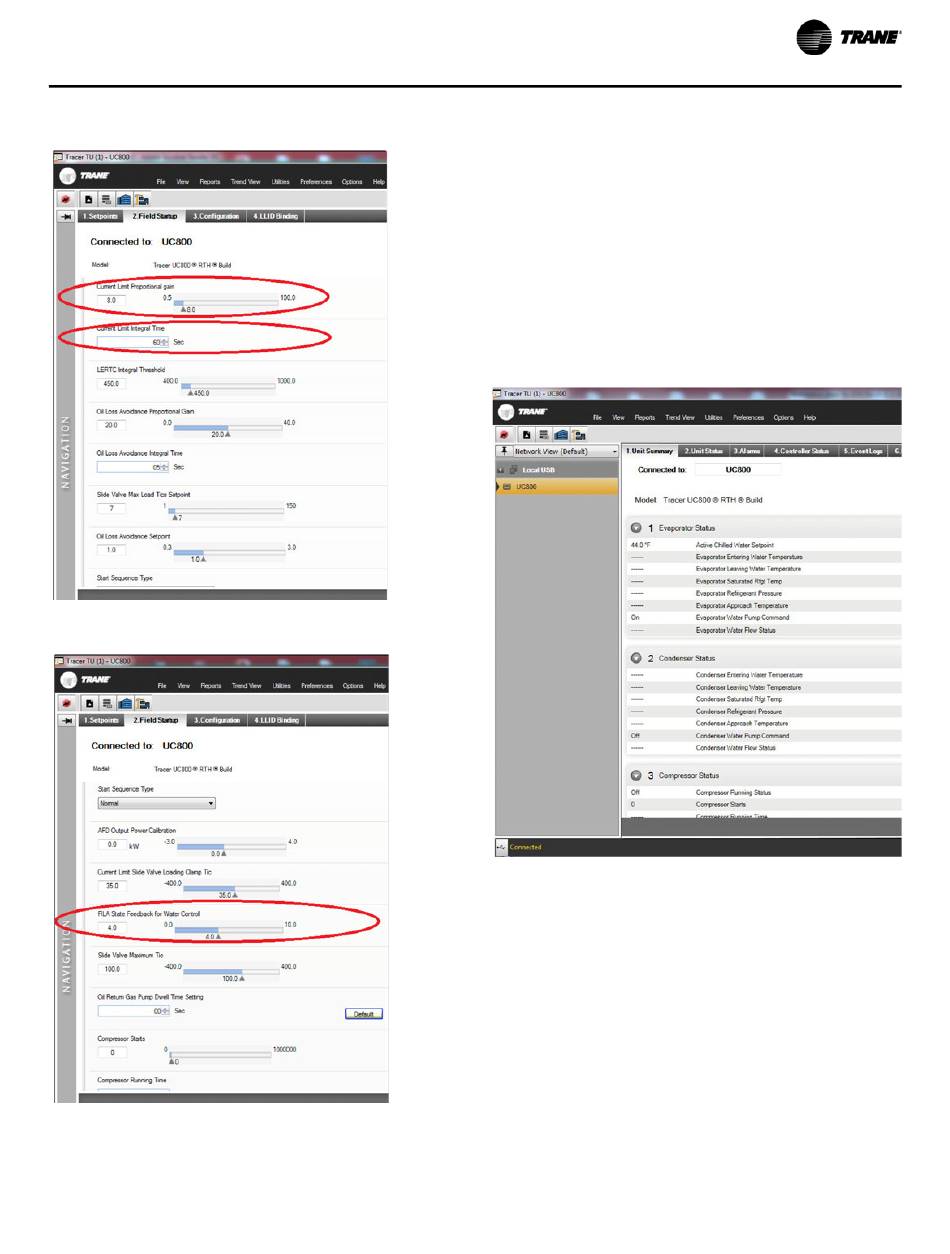

Figure 95.
Figure 96.
SO-SVN048A-EN
Existing UC800 with Software
Already Installed
1. If an AFDR retrofit is installed on an RTHD chiller with an
existing UC800 controller/Tracer AdaptiView™ display,
the software installation will be slightly different than in
"UC800 Software Installation and Configuration," p.
Because the UC800 already has code and configurations
®
installed, when Tracer
laptop with a direct USB connection to the controller,
Tracer TU displays its Unit Summary tab; refer to
Figure 97.
Figure 97.
Installation
TU is launched on the service
50.
