Installation

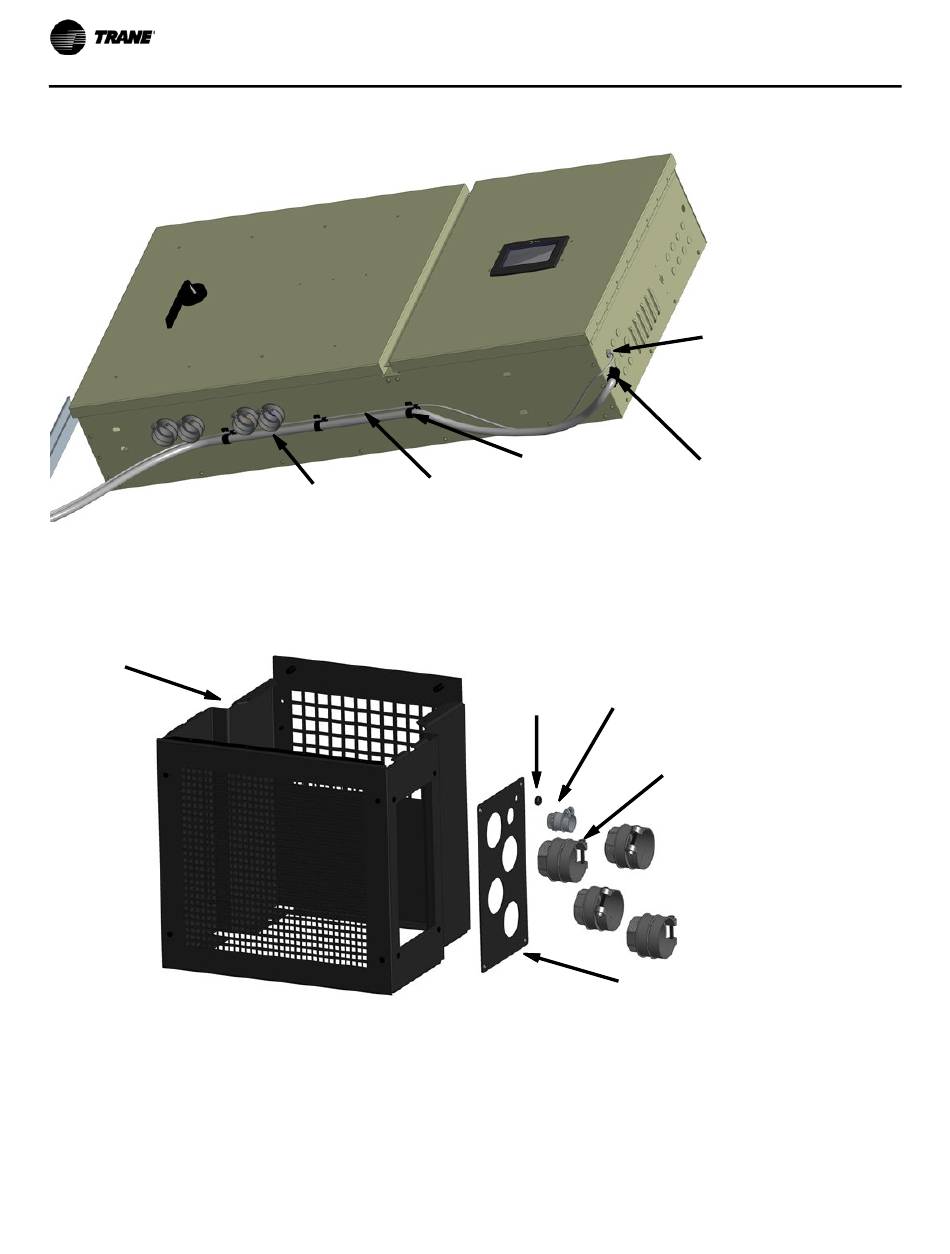

Figure 47. Control cable
4. Remove pedestal adapter plate and install 2-inch and
3/4-inch conduit connectors and 3/8-inch grommet; refer to
Figure 48.
Figure 48. Pedestal
Drive Pedestal
5. Install power wire conduit into conduit connectors, and
secure conduit to strut channel with provided clamps.
40
®
Modbus Cable
Control Power
Conduit
Loop Clamp
1.25-in.
0.375 in.
Grommet
Grommet
2-in. Conduit
Connector
Pedestal
Adapter Plate
Cable Bushing
Conduit
Connector
