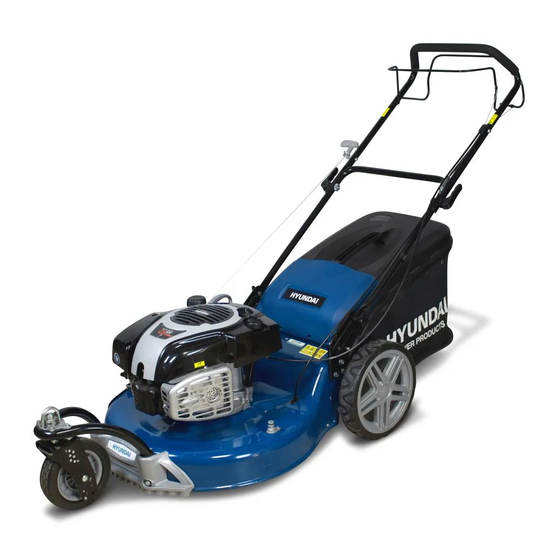

- Page 1 PETROL LAWN MOWER HTDT561BSRP WARNING: Read thoroughly the instruction manual before use.
-
Page 2: Safety Instructions
1. SAFETY INSTRUCTIONS Instructions Read the instructions carefully. Be familiar with the controls and proper use of the equipment. Never allow children to use this mower. If the mower is given to an other people, also give this manual. Also make sure that this person uses this device only after receiving the necessary instructions. - Page 3 Stop the blades if the mower is to be tilted during transport when crossing surfaces other than grass, and when transporting the mower due to the area to be mowed. Do not mow on steep slopes. Use extreme caution when tipping or pulling the mower towards you. ...
- Page 4 To reduce the risk of fire, keep the machine clean without grass, without grease, the muffler and the engine cools, disconnect the battery if necessary and empty the fuel tank Check the grass catcher frequently, its condition or deterioration. ...
- Page 5 Fuel Handling Use caution when handling fuels. They are flammable and the vapours are explosive. Use only an approved container. Never remove the fuel cap or add fuel while the machine is on. Turn off the unit and allow the engine and exhaust components to cool down before refuelling.
- Page 6 symptoms usually appear on the fingers, hands or wrists. Risk increases at low temperatures. Intended use This model of thermal mower is designed for natural grass mowing. Any other use is prohibited. It is suitable only for private use in a garden or plot. Lawnmowers designed for private plots or gardens are those used for the maintenance of grassy areas and private lawns and should not be used in public areas, parks, sports, agricultural or forest areas.
- Page 7 Warning, risk of injury! Wear eye protection and hearing protection. Never mow while people, especially children, or animals are nearby. Cutting diameter Danger! Keep your hands and feet away. Guaranteed sound power level Stop the device: release the security bar...
- Page 8 Driving wheels on: pull the training bar Fuel filling Warning! Check the oil level before starting. Oil filling Warning symbol Forbidden symbol Information symbol...
-
Page 12: Your Product
2. YOUR PRODUCT 1. Description (figure 1 upper handlebar 2 Self-propeller bars 3 Operator control lever 4 star rope 5 lower bar 6 flap 7 fuel tank 8 grass catcher 9 oil tank 10 rear wheel Muffler 12 Side discharge with flap 13 front wheel 14 cutting height adjustment lever 15 Mulching kit... - Page 13 Sound pressure level (L 82,5 dB (A) K= 2,5dB(A) Sound power level 94,52 dB (A); KWA=1,52dB Guarantee sound power level 98 dB(A) Vibration Max 7,476 m/s2; K=1,5 m/s 3. ASSEMBLY a. Front wheel (figure - From the rear, insert the screws through the recesses (the longer screws must penetrate the lower hole) and immobilize the front wheel linkage with the nuts - Secure the cowling against the lower protruding lower screws.
- Page 14 c. Bars assembly ( figure - Fasten the lower handlebar (4) with the fixing screws of the latter and with the wing nuts. To determine the desired inclination, choose one of the two possible screw positions. - Fold down the upper handlebar (1) (small image) and press the lock...
- Page 15 lever (20) in the direction of the bar. - Secure the control cables to the handlebars with cable clamps (5). d. Grass catcher (figure - Place the synthetic tabs (28) on the grass catcher (27). - Insert the handle into the grass catcher and secure it with the attached screw.
-
Page 16: Oil And Fuel Filling
g. Adjust the cutting height (Figure The device has 6 positions for adjusting the cutting height (from 25 to 75 mm): - Pull the lever (18) outward and push it to the desired position. - Press the lever inward again. - Set the corresponding height also on the front wheel. - Page 17 - do not smoke when refuelling; - avoid contact with the skin and inhalation of vapours; - Clean the gasoline if you have spilled. - Keep gasoline away from any spark, flame or other source of fire. - Do not use gasoline and oil mixture. - Use normal or super unleaded gasoline.
-
Page 18: Maintenance
d. Mowing - Self-propeller function (Figure M) The self-propelled mechanism engages by pressing the safety lever on the handle. Self-propelled mechanism ceases when you release this bar. Pull the safety lever back towards the handle to mow without the self- propelled mechanism. - Page 19 - Always keep the device clean. To clean it, use a brush or cloth but no cleaning agents or acidic solutions. Do not use water to clean the engine as it may clog the fuel system. - To clean the blade guard, it is possible to connect a hose to the top of the housing.
- Page 20 damaged spark plugs (Champion QC12YC) (recommended torque tightening 20 Nm). d. Change the engine oil - Tilt the unit backwards by the handlebar to change the engine oil. - Do not lay the tool on its side so that no liquid escapes. - Make the first oil change after approximately 5 hours of use, then all 50 hours of use or once a year.
- Page 21 The blade is made of hardened steel. To get a clean job, sharpen the blade frequently, about every 25 hours of use. Make sure the blade is always well balanced. Insert a small iron pin (2 or 3 mm in diameter) into the hole in the middle of the blade: it must remain horizontal.
- Page 22 7. STORAGE a. General storage tips Do not store the device with the filled recovery bag. In hot weather, grass com to ferment under the effect of heat. Fire hazards. - Clean the appliance before cleaning. - Let the engine cool down before store the unit in a closed room. - Use suitable and authorized containers to conserve fuel.
- Page 23 8. Elimination / protection of the environment Dispose the tool, its accessories and its packaging for ecological recycling. Carefully empty the fuel and oil tanks and take your unit to a recovery center. Plastic and metal parts can be sorted and recycled. Return used oil and petrol residues to the appropriate dump stations and collection points and do not discharge them into sewers or sewers.
- Page 24 32, rue Aristide Bergès -Z1 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below PETROL LAWN MOWER HTDT561BSRP Serial number: 20220128119-20220128430 Complies with the following European Directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EU...
-
Page 25: Warranty
10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 26: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 27: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
