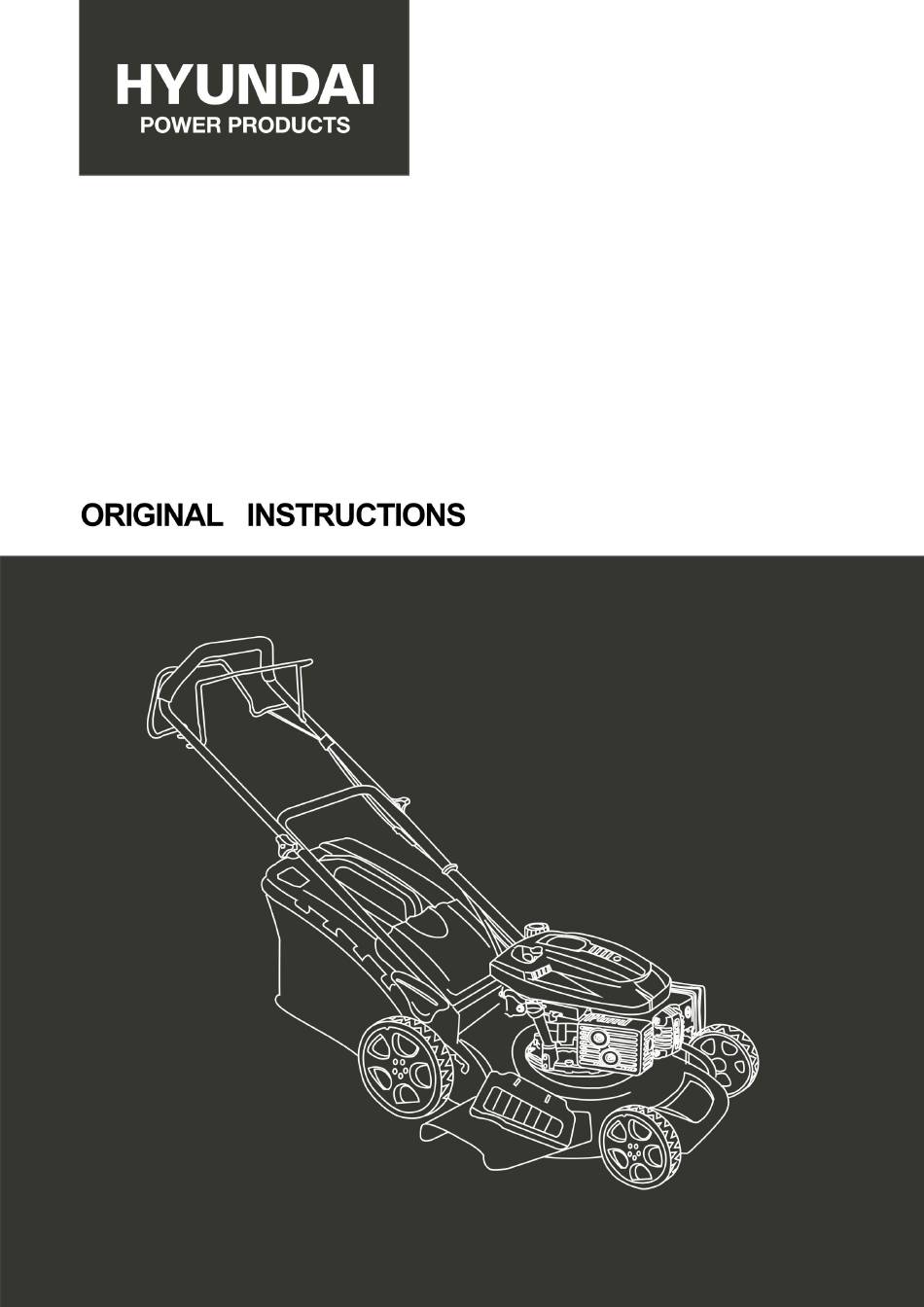

- Page 1 PETROL LAWN MOWER HTDT5196 WARNING: Read thoroughly the instruction manual before use!
-
Page 2: Table Of Contents
CONTENTS 1. INTENDED USE.....................3 2. SAFETY INSTRUCTIONS ..................3 3. YOUR PRODUCT ....................7 4. ASSEMBLY......................8 5. FILLING FUEL TANK.....................10 6. USE ........................10 7. MAINTENANCE AND STORAGE................11 8. EC DECLARATION....................14 WARRANTY......................15 10. PRODUCT FAILURE ....................16 11. WARRANTY EXCLUSIONS .................17... -
Page 3: Intended Use
1. INTENDED USE This device is only for lawn mowing grass and grass up to 1800 m² in the domestic area. The device is designed for home use. It is not intended for continuous professional use. Any other use that is not expressly permitted in this manual may result in damage to the device and constitute a serious danger to the user. - Page 4 Do not mow on steep slopes. Use extreme caution when tipping or pulling the mower towards you. Never use the mower with defective guards, or without safety devices such as baffles and or collection bins, which are not in place. Do not change the motor configuration or increase the speed.
- Page 5 Do not use the mower in the event of rain or when the grass is wet. Never lift the rear of the mower when starting the engine and never place your hands or feet under the mower deck or in the rear ejection port while the engine is running. Turn off the engine and remove the spark plug cap in the following cases: ...
- Page 6 Prolonged use of this product exposes the operator to vibrations and can produce so-called "white finger" disease. To reduce the risk, wear gloves and keep your hands warm. If any of the symptoms of "white finger syndrome" occur, seek immediate medical attention. Symptoms of "white finger"...
-
Page 7: Your Product
Wear hearing and ocular protection. 3. YOUR PRODUCT 3.1 DESCRIPTION 1. Upper bar 8. Flap 2. Operator control lever 9. Grass catcher 3. Self-propeller bar 10. Starter rope 4. Fuel tank 11. Lower bar 5. Engine 12. Flap of the lateral discharge 6. -
Page 8: Assembly
3.2 TECHNICAL DATA Model HTDT5196 Nominal power 3.2kW Displacement 196cm³ Max engine speed 2850/min Cutting width 502mm Volume of the collection bag Weight 37.5kg Blade type DY0605-12 Fuel tank capacity 1,5 L Oil tank capacity 0,6 L Sound pressure level Lpa: 83.4dB(A), K=3,0 dB(A) - Page 9 4.3 SETTING OF THE CUTTING HEIGHT According operation to be performed, adjust the desired cutting height; Grasp the lever, pull it to the right and then lower it to decrease the cutting height or raise it to increase the cutting height 4.4 LATERAL DISCHARGE Push the tab and open the flap of the side discharge.
-
Page 10: Filling Fuel Tank
5. FILLING FUEL TANK 5.1 FILLING TANK WARNING! Gasoline is extremely flammable. Store fuel in specially designed cans for this purpose. Fill the fuel tank only outdoors and before starting the engine. Do not smoke when filling the fuel tank or handling fuel. Never open the fuel tank cap and never add fuel while the engine is running or when it is hot. -
Page 11: Maintenance And Storage
Pull the starter rope firmly until that the motor starts. Stand behind the handlebars. Move the operator control lever positioned in front of the handlebars rearwards so that the lever is resting against the handlebars. Take hold of the starter handle firmly with the other hand. - Page 12 Reposition the mower onto its four wheels. Do not use a pressure washer or hot water to clean the mower. Be careful to avoid soaking parts such as the engine, air cleaner, wheel bearings and metal fastenings. Dry off the machine before storing by leaving it running for a few minutes on a flat, clear surface to prevent corrosion or seizure.
- Page 13 remaining fuel is consumed. Allow the engine to cool. Remove the grass collection bag. Loosen the quick release and fold down the top section of the handles taking care not to bend the cables. To avoid scratching the mower, insert corrugated cardboard or similar padding between the upper and lower handlebars and the engine.
-
Page 14: Ec Declaration
32, rue Aristide Bergès -Z1 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below PETROL LAWNMOWER HTDT5196 Serial number: 20220125326-20220125605 Complies with the following European Directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EU Emission directive (UE) 2016/1628 &... -
Page 15: Warranty
9. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 16: Product Failure
10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 17: Warranty Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
