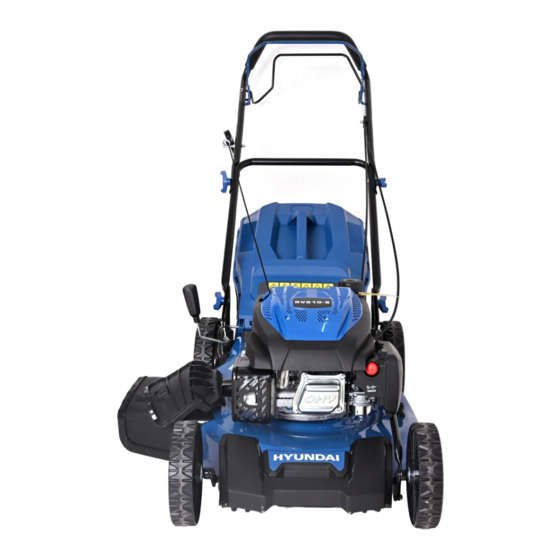

PETROL LAWN MOWER
HTDT5090
Warning：Read this instruction manual carefully before using this machine!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTDT5090 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai HTDT5090

Summary of Contents for Hyundai HTDT5090

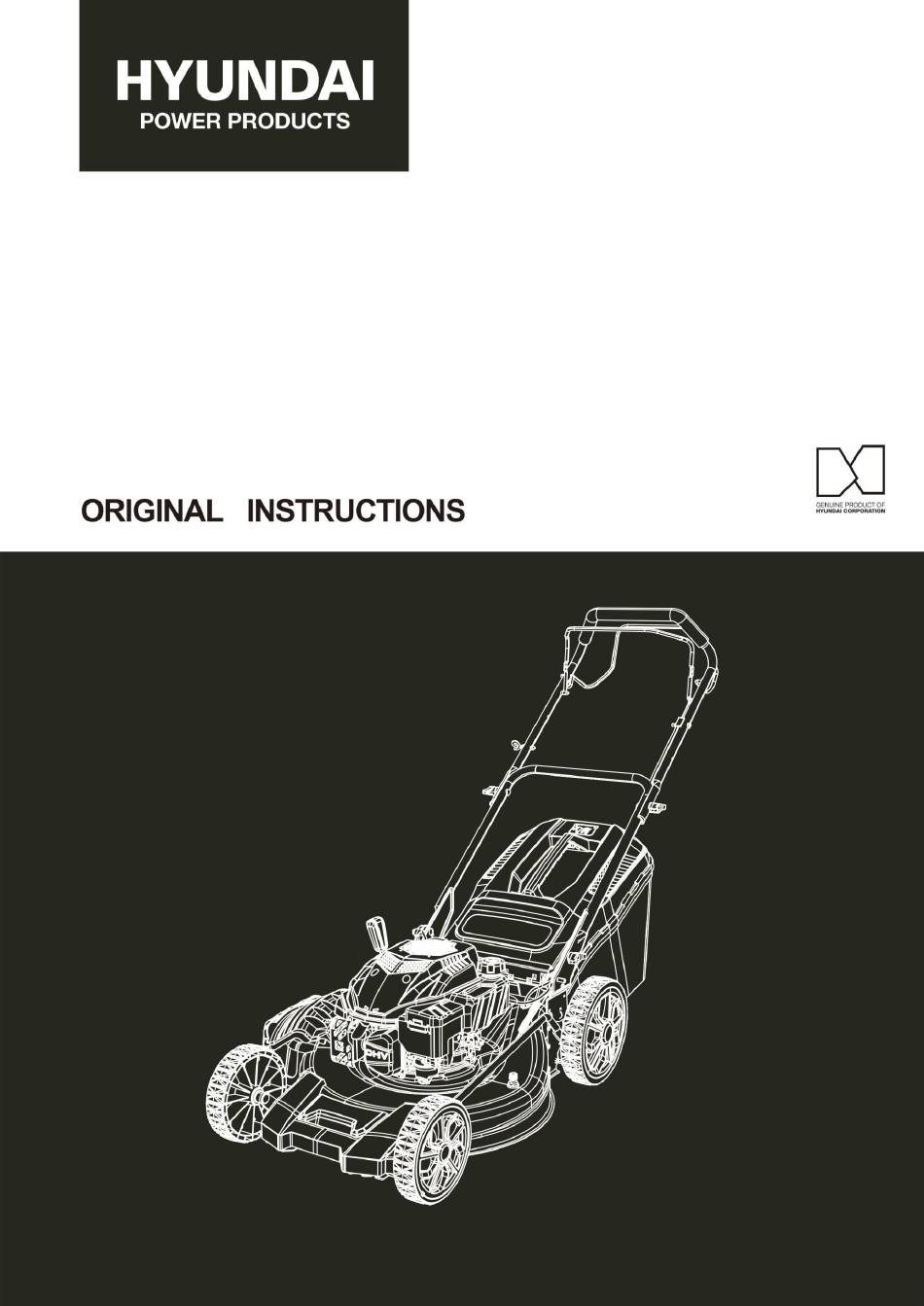

  • Page 1 PETROL LAWN MOWER HTDT5090 Warning：Read this instruction manual carefully before using this machine!

  • Page 2: Table Of Contents

    CONTENTS 1. INTENDED USE............................3 2. SAFETY INSTRUCTIONS........................3 3. YOUR PRODUCT........................... 7 4. ASSEMBLY............................. 9 5. FILLING FUEL AND OIL TANK......................13 6. OPERATION ............................14 7. MAINTENANCE AND STORAGE..................... 17 8. TROUBLESHOOTING.........................21 9. DECLARATION OF CONFORMITY....................22 10. WARRANTY............................23 11. PRODUCT FAILURE.........................24 12. WARRANTY EXCLUSIONS......................25...

  • Page 3: Intended Use

    1. INTENDED USE This equipment is intended for mowing lawns. It is not suitable for commercial use. Any use other than specifically permitted in this instruction may result in damage or injury. This equipment is intended for use by adults. Children or other people who are unfamiliar with the operating instructions must not operate this equipment.
  • Page 4  Exercise extreme caution when changing direction on slopes.  Stop the blades if the mower is to be tilted during transport when crossing surfaces other than grass, and when transporting the mower due to the area to be mowed. ...
  • Page 5  Replace worn and damaged parts for safety.  If the fuel tank is to be drained, it must be made outdoors. Special safety instructions  In case of lack of knowledge or first use of this product, we recommend that you have a formation/ training with a professional or an experienced person.
  • Page 6 Fuel Handling Use caution when handling fuels. They are flammable and the vapors are explosive. Use only an approved container. Never remove the fuel cap or add fuel while the machine is on. Turn off the unit and allow the engine and exhaust components to cool down before refueling.

  • Page 7: Your Product

    Danger! Keep your hands and feet away from the cutting element. Caution – Risk of burn, Stay clear of hot surface. Unplug the spark plug before maintenance and repair. Read the instruction manual. Risk of noise injury. Wear ear protection. Add oil slowly.
  • Page 8 13. Height adjusting lever 4. Inferior handle Steel Deck 14. Grass catcher 5. Fuel tank cover Engine oil port 15. Recoil start handle 3.2 TECHNICAL DATA Model HTDT5090 Engine RV210-S Engine Type Air cooled, 4stroke Displacement 209cm³ Starting style Recoil...

  • Page 9: Assembly

    4. ASSEMBLY 4.1 ASSEMBLY OF THE HANDLE 1) Take out the machine from carton box and check all accessories completely or not.(Fig.1,2,3) Fig.2 Fig.1 Fig.3 2) Unfold the handle as below picture show Fig.4. 3) Fix tightly the Inferior handle(4) with bolt and nuts on both side.(Fig.5) 4) Fix the superior handle(3) with bolt and nuts on both side.(Fig.6) 5) Connected the cables on the hole of self-propelled lever(1) and Engine control lever(2).
  • Page 10 Fig.6 Fig.7 Fig.8 Fig.9 4.2 ASSEMBLY OF GRASS BAG For rear discharge with grass collection.(Fig.14) 1) Pull up the deflector and take out the mulcher guard if there it is(Fig.10) 2) Pull up the deflector and place the grass catcher at its place.(Fig.11,12,13) 3) Keep the side discharge is closed.
  • Page 11 Fig.12 Fig.13 Fig.14 Fig.15 4.3 ASSEMBLY OF SIDE DISCHARGE For grass side discharge function(Fig.21) 1) Take out the grass catcher and put the mulcher guard in place(Fig.16,17 ), keep the deflector closed. 2) Push the unlock device to open the side discharge cover.(Fig.18) 3) Put the side discharge guiding board at it’s correct place.(Fig.19,20) Fig.17 Fig.16...
  • Page 12 Fig.19 Fig.18 Fig.20 Fig.21 4.4 ASSEMBLY OF MULCHING GUARD For grass mulching function.(Fig.23)  Take out the grass catcher and insert the Mulcher Guard in its correct position.(Fig.22) Keep the deflector is closed.  Keep the side discharge is closed. ...

  • Page 13: Filling Fuel And Oil Tank

    5. FILLING FUEL AND OIL TANK WARNING! Gasoline is extremely flammable. Store fuel in specially designed cans for this purpose. Fill the fuel tank only outdoors and before starting the engine. Do not smoke when filling the fuel tank or handling fuel. Never open the fuel tank cap and never add fuel while the engine is running or when it is hot.

  • Page 14: Operation

    6. OPERATION 6.1 SAFETY PRECAUTIONS a) Always use the lawnmower with the grass catcher or/ and the deflector in position. b) Stop the engine before emptying the grass catcher or before you change the cutting height. c) While the engine is running, never introduce your hands or feet under the lawnmower or under the grass ejection area.
  • Page 15 6.3 ENGINE STARTING COLD STARTING a) Press the primer bulb 3 - 5 times b) Pull engine control lever until it touches the upper handle. c) Pull the starter rope until the engine starts. HOT-STARTING THE ENGINE d) Pull Engine control lever until it touches the upper handle. e) Pull the starter rope until the engine starts.
  • Page 16 the engine control lever (2) in working position. The engine will stop as soon as you release the engine control bar(2). 6.4 FOR THE SELF-PROPELLED MOWER To engage the self-propelled system, pull on the self-propelled lever(1) and maintain it engaged together with the handle.

  • Page 17: Maintenance And Storage

    When cutting edges require resharpening, this must be done evenly on both sides so as to prevent any imbalance. If the blade is damaged, it must be replace. 4. When mowing always wear a long trousers and strong footwear. 5. Do not run the engine in an enclosed and/or poorly ventilated area, where gas of the engine contains carbon monoxide, which are dangerous for your health.
  • Page 18 a. Cleaning the mower Cut grass is damp. Regular cleaning after each use will ensure better functioning of the mower and reduce the risk of corrosion or seizure. Having finished mowing, allow the engine to cool then remove accumulated grass clippings from and around the engine with a brush.
  • Page 19 When reassembling the blade, make sure that the cutting edges are in the same direction as the direction of rotation of the motor. The tightening torque of the blade screw should be 3.7 kg * m/s (37 N.m) and can be checked with a torque wrench. c.
  • Page 20 Sharpening the blade For best mowing results, have the edges sharpened and the blade balanced at least once a year by a specialist service dealer or agent. Spark plug Check the spark plug initially after the first five hours of mower use. Thereafter, maintenance of the spark plug should take place every 25 hours.

  • Page 21: Troubleshooting

    8. TROUBLESHOOTING PROBLEM CAUSE SOLUTION Engine runs roughly Choke in the wrong position. Move choke lever to the RUN position. Dirty air filter. Clean or replace with a new one. Dirty fuel valve. Clean the fuel valve. Engine stops suddenly Low oil level.

  • Page 22: Declaration Of Conformity

    32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below Petrol lawn mower HTDT5090 Serial number: 20240204719-20240204880 Complies with the following European Directives:...

  • Page 23: Warranty

    10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 24: Product Failure

    11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 25: Warranty Exclusions

    12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
