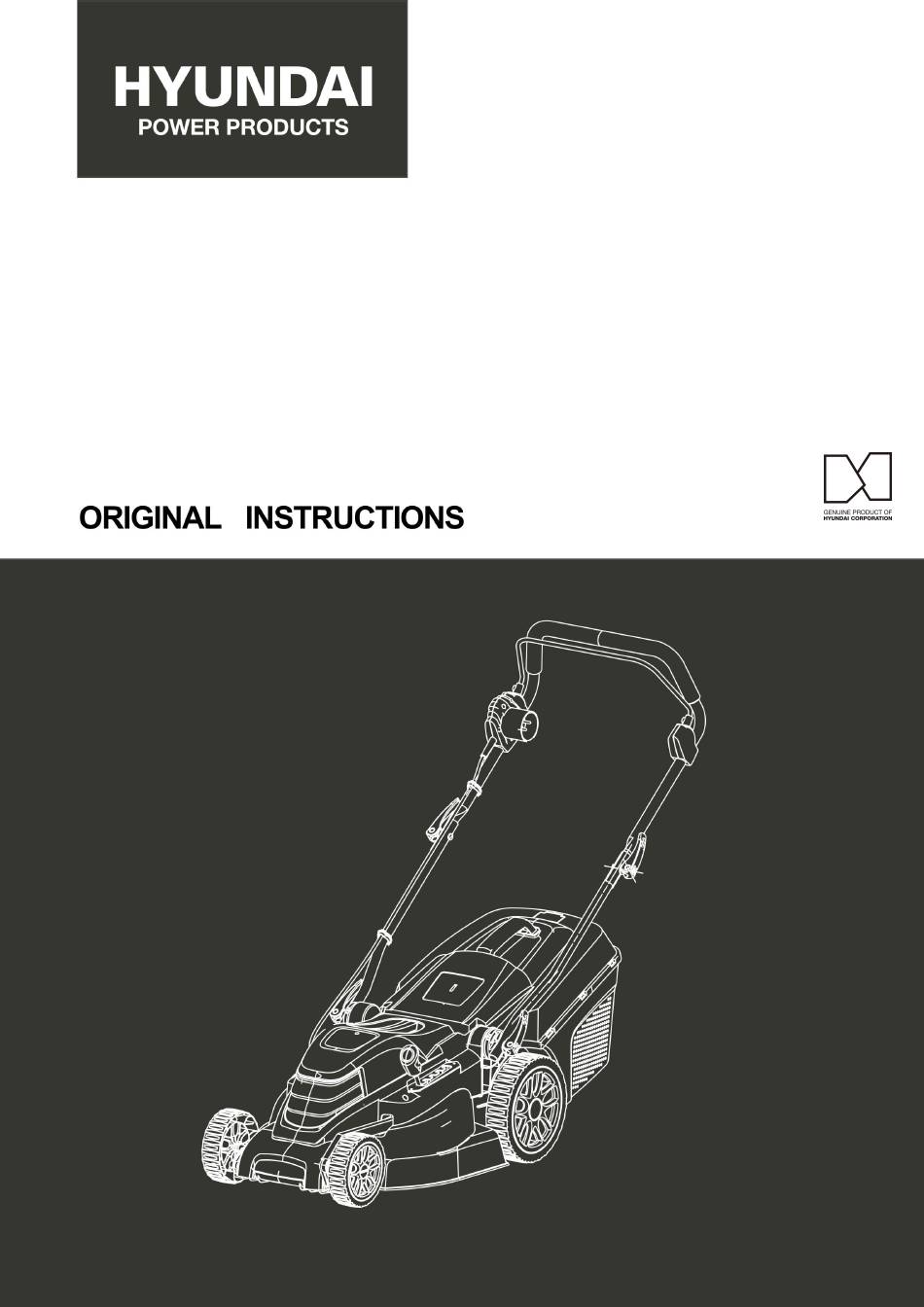

- Page 1 ELECTRIC LAWN MOWER HTDE1800-1 WARNING: Read thoroughly the instruction manual before use.
-
Page 2: Table Of Contents
CONTENTS 1. GENERASAFETY INSTRUCTIONS....................3 2. YOUR PRODUCT..........................10 3. ASSEMBLY............................10 4. OPERATION............................14 5. MAINTENANCE AND STORAGE....................16 6. DECLARATION OF CONFORMITY....................17 7. WARRANTY............................18 8. PRODUCT FAILURE.......................... 19 9. WARRANTY EXCLUSIONS......................20... -
Page 3: Generasafety Instructions
1. GENERAL SAFETY INSTRUCTIONS LEARNING Please read the operating instructions carefully. Familiarize yourself with the controls and proper use of the device. Never allow children to use the device. Never allow persons unfamiliar with the operating instructions to operate the device. Local regulations may restrict the age of the user. - Page 4 Replace worn or damaged blades and all screws to maintain balance. Examine closely the area where you are going to use the mower and remove all objects that could be thrown by the machine (stones, twigs, wire, bones etc.). Before mowing, install and check the condition of the ...
- Page 5 Never use the device if the guards are defective or without safety devices, such as the grass catcher in place. Use only an extension cord attached to a coupler according to IEC 60320-2-3 standard. Use and operation Always direct the cable away from the device. ...
- Page 6 Always be careful to your position on the slopes. Mow facing the slopes, never from top to bottom. Be extremely careful when changing direction on slopes. Do not mow on slopes higher than 20°. Walk, never run, never let yourself be pulled by the ...
- Page 7 or unlocking the blade and before checking, cleaning or working on the lawnmower. After striking a foreign object, stop and disconnect the mower, check for damage and repair before restarting and operating it. If the mower starts to vibrate abnormally, stop the mower, check and eliminate the cause of vibration.
- Page 8 Store the device only in a dry place. To reduce the risk of fire, remove grass, leaves and excess grease from the mower and especially from the engine. Empty, clean the grass catcher and let it dry before ...
- Page 9 Wear sturdy, non-slip shoes. Risk of personal injury, death, or damage to the device in case of non-compliance. Read the instructions for use. Use of protective gloves. Do not expose to rain. Risk of splashing; keep people away. The blade will continue to rotate for a short time after the engine has stopped. Never grab or carry the mower until the knives have stopped rotating.
-
Page 10: Your Product
2. YOUR PORDUCT Description 1. Upper handle 4. Grass collection compartment 2. Lower handle 5. Wheels 3. Switch box 6. Motor protection Technical data Model HTDE1800-1 Voltage 230-240V~ 50Hz Power index 1800W No-load speed 3450min Cutting height 25-80mm, 5 Positions Cutting width... - Page 11 (Fig.1) Fig. 1 2) Put the cable hook(1) on upper handle(2) (Fig.2) Fig. 2 3) Connect upper handle (2) and lower handle (1) with supplied screws(3) , washers (4) and clips(5) (Fig.3) Fig. 3 4) Fix the cable holders (Fig.4)
- Page 12 Fig.4 5) Fit each wheels(2,3,4) over the axles(1) and press the wheel covers (5) into place (Fig.5) Fig. 5 6) Grass collection box assembly. Assemble two halves (1 and 2) and fix them together with upper cover (3), then fix grass catcher handle(4) on upper cover (Fig.6)
- Page 13 Fig.6 7) Lift the flap(1) and place the grass box(3) over the lugs(3) (Fig.7) Fig.7...
-
Page 14: Operation
8) Finish assemble (Fig.8) Fig.8 CUTTING HEIGHT ADJUSTMENT In order to achieve the desired cutting height, the front and rear axles should be repositioned under the mower frame. Caution! Disconnect the mower from the area and make sure the blade has stopped rotating before adjusting the height. - Page 15 Start On/off switch (Fig. 3C) Caution! Do not start the mower if the grass on which it is placed is too high. Press the safety button (A) on the switch and pull the safety lever (B) against the bar. Hold the switch lever while you release the safety button.
-
Page 16: Maintenance And Storage
never use the device without the grass catcher. If you need to tighten the cutting blade, first make sure that your mower is not connected to a power supply, then as shown in the diagrams below, use a screwdriver to lock the pin, then use a wrench to tighten the blade. -
Page 17: Declaration Of Conformity
32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Declares that the machinery designated below: ELECTRIC LAWN MOWER HTDE1800-1 Serial number: 20241005775-20241005894 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it;... -
Page 18: Warranty
7 . WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. It can be extended by one year if the user subscribes to website of myswap. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 19: Product Failure
8 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 20: Warranty Exclusions
9 . WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
