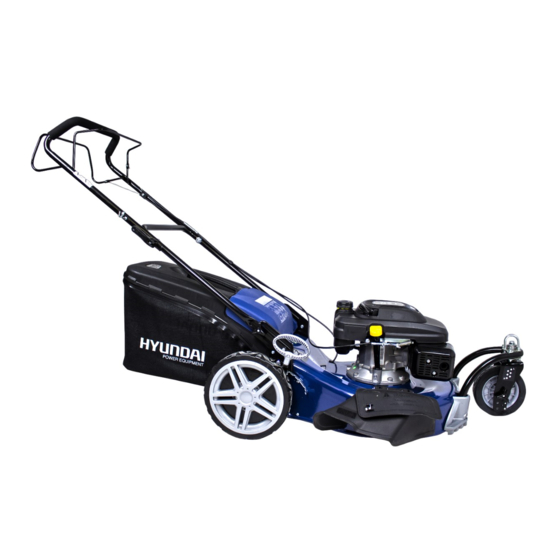

- Page 1 LAWN MOWER PETROL HTDT561RP-1 WARNING: Read thoroughly the instruction manual before use.
-
Page 2: Safety Instructions
1. SAFETY INSTRUCTIONS Instructions Read the instructions carefully. Be familiar with the controls and proper use of the equipment. Never allow children to use this mower. If the mower is given to an other people, also give this manual. Also make sure that this person uses this device only after receiving the necessary instructions. - Page 3 monoxide emissions can be collected. Mow only under daylight or under good artificial light. Always have a good visibility. Avoid using the equipment on greasy grass, where possible. Always be sure of your walking on the slopes. Walk, never run.
- Page 4 When the tool is stopped, park it in a safe place. Move slowly when moving. The lawnmower should not be used in slopes and near drop-offs, ditches or embankments; if the tool must be used in these kinds of emplacements, take an extreme precaution and operate carefully the tool.
- Page 5 the engine is running. Turn off the engine and remove the spark plug cap in the following cases: o Before operating under the mower deck or near the ejection opening. o Before any maintenance, repair or verification. o Before transporting, lifting or storing the mower. o If you leave the mower unattended or change the cutting height.
- Page 6 Fuel Handling Use caution when handling fuels. They are flammable and the vapours are explosive. Use only an approved container. Never remove the fuel cap or add fuel while the machine is on. Turn off the unit and allow the engine and exhaust components to cool down before refuelling.
- Page 7 10min of operation and 20min of rest). Intended use This model of thermal mower is designed for natural grass mowing. Any other use is prohibited. It is suitable only for private use in a garden or plot. Lawnmowers designed for private plots or gardens are those used for the maintenance of grassy areas and private lawns and should not be used in public areas, parks, sports, agricultural or forest areas.
-
Page 11: Your Product
2. YOUR PRODUCT 1. Description (figure 1 Upper handlebar 2 Training bar 3 Security bar 4 Lower handlebars 5 Cable clamp 6 Flap 7 Oil tank cap with dipstick 8 Tank cap 9 Engine cover 10 Muffler protection 11 Candle + candle sheet 12 Front wheel 13 Air filter (not visible) 14 Air filter cover... - Page 12 Engine oil HD SAE 30 Spark plug Torch F6RTC or LG F6RTC Cutting width 56 cm Cutting height 6 positions 25-75 mm Grass catcher volume 75 l Weight 33.9 kg Sound pressure level (L Max. 84,9 dB (A); K =2,5 dB Sound power level (L Max.
- Page 13 c. Bars assembly ( figure - Fasten the lower handlebar (4) with the fixing screws of the latter and with the wing nuts. To determine the desired inclination, choose one of the two possible screw positions. - Fold down the upper handlebar (1) (small image) and press the lock lever (20) in the direction of the bar.
- Page 14 d. Grass catcher (figure - Place the synthetic tabs (28) on the grass catcher (27). - Lift the flap. Insert the handle into the grass catcher. The hook must be on the bar of the grass catcher emplacement. NOTE: When using the grass catcher, do not use the mulching device and the lateral discharge in same time.
-
Page 15: Oil And Fuel Filling
g. Adjust the cutting height (Figure The device has 6 positions for adjusting the cutting height (from 25 to 75 mm): - Pull the lever (18) outward and push it to the desired position. - Press the lever inward again. - Set the corresponding height also on the front wheel. - Page 16 - do not smoke when refuelling; - avoid contact with the skin and inhalation of vapours; - Clean the gasoline if you have spilled. - Keep gasoline away from any spark, flame or other source of fire. - Do not use gasoline and oil mixture. - Use normal or super unleaded gasoline.
-
Page 17: Maintenance
c. Mowing - Self-propeller function (Figure M) The self-propelled mechanism engages by pressing the safety lever on the handle. Self-propelled mechanism ceases when you release this bar. Pull the safety lever back towards the handle to mow without the self- propelled mechanism. - Page 18 - Always keep the device clean. To clean it, use a brush or cloth but no cleaning agents or acidic solutions. Do not use water to clean the engine as it may clog the fuel system. - After mowing, remove the remains of plants stuck with a piece of wood or plastic.
- Page 19 d. Adjust the cable (fig. P) If the control cable for the transmission is out of sync and has too much play, you can fix it. - Loosen the small lock nut (32a). - Turn the adjusting nut (32b) counter clockwise: The control cable is shortened.
- Page 20 To remove the blade, loosen the screw, check the blade bracket, and replace all parts if they are worn or damaged. To sharpen the blade, place it in a clamp and file the sharp edges evenly, checking the balance of the blade. When reassembling the blade, make sure that the cutting edges are in the same direction as the direction of rotation of the motor.
- Page 21 - Empty the fuel tank into a well-ventilated place. Start the engine and let it run until it stops due to lack of fuel. - Change the oil. - Unscrew the spark plug. - Pour a tablespoon of motor oil into the engine space by opening the spark plug;...
- Page 22 BUILDER SAS 32, rue Aristide Bergès -Z1 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below LAWN MOWER PETROL HTDT561RP-1 20210106641-20210107000 Serial number: 20210304087-20210304526 Complies with the following European Directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EU Emission directive (EU) 2016/1628 &...
-
Page 23: Warranty
10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 24: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 25: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 26 Responsible of technical file: M. Olivier Patriarca...
