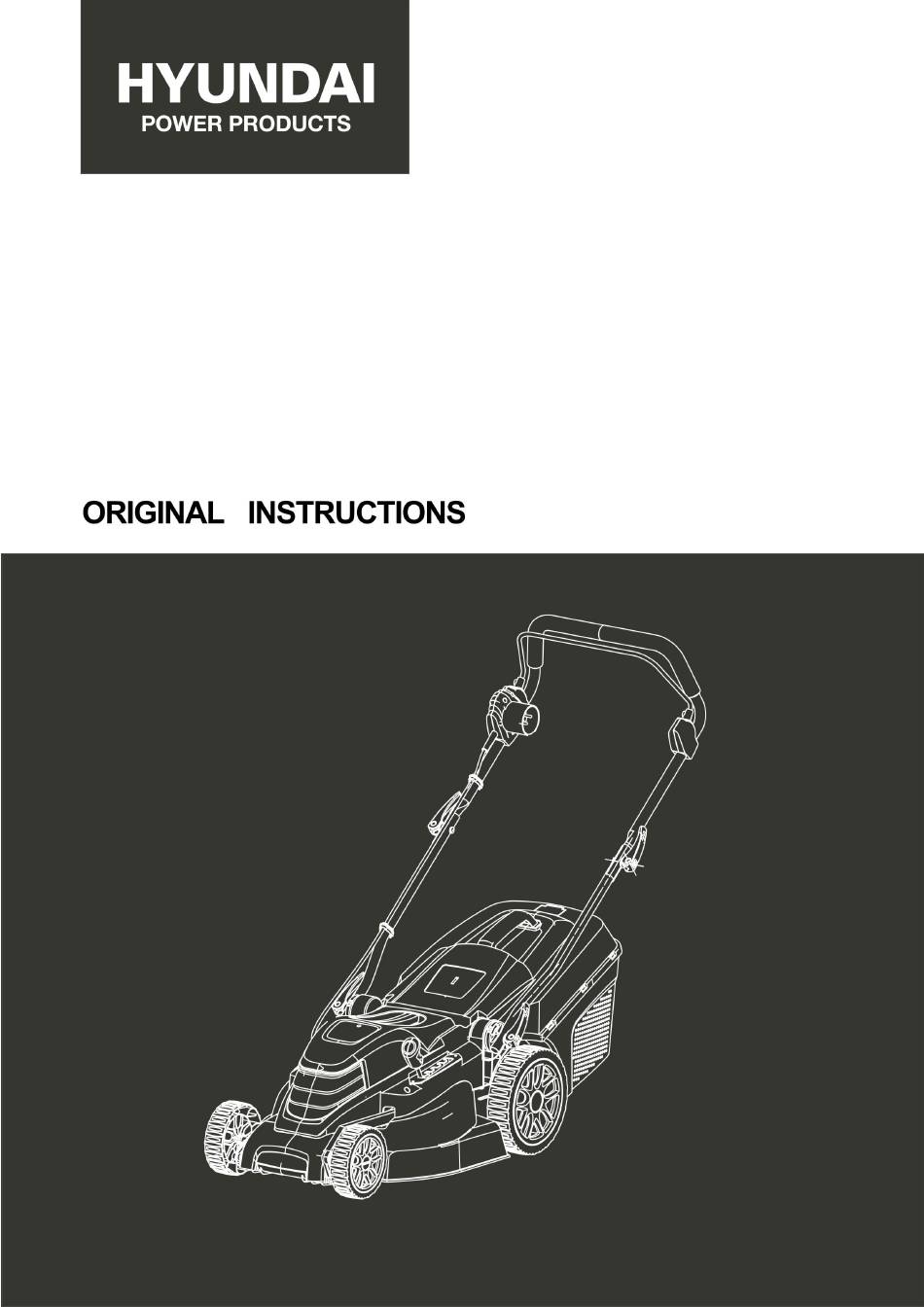

- Page 1 ELECTRIC LAWN MOWER HTDE1400 WARNING: Read thoroughly the instruction manual before use.
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRCUTIONS........................3 2. TECHNICAL DATA..........................9 3. ASSEMBLY............................10 4. OPERATION............................11 5. MAINTENANCE AND STORAGE....................12 6. DECLARATION OF CONFORMITY....................13 7. WARRANTY............................14 8. PRODUCT FAILURE.......................... 15 9. WARRANTY EXCLUSIONS......................16... -
Page 3: Safety Instrcutions
1. SAFETY INSTRUCTIONS A) LEARNING Please read the operating instructions carefully. Familiarize yourself with the controls and proper use of the device. Never allow children to use the device. Never allow persons unfamiliar with the operating instructions to operate the device. ... - Page 4 etc.). Before mowing, install and check the condition of the grass catcher. C) WARNINGS AND HAZARDS Moisture and electricity do not mix well. The handling / connection of the cables should be done in a dry place. ...
- Page 5 Mow in daylight or under adequate artificial light. Avoid operating the device on wet grass or in the rain. Never run the lawnmower over the power cable. When mowing, the cable should always be behind the mower and in the area where the grass has already been cut.
- Page 6 mow. Never operate the lawnmower with defective guards or without safety devices, such as a deflector or grass catcher, which are not in place. On trailed or powered models, disengage before starting the engine. Turn the engine on with the engine switch on, carefully as instructed, and with your feet well away from the blade.
- Page 7 problem. F) Maintenance and storage Regular maintenance is essential for safety and to maintain performance levels. Check all bolts, nuts and screws to ensure that the device is in good working conditions. Inspect the condition of the grass catcher frequently. It should always remain in perfect condition.
- Page 8 G) Symbols Waste from electrical products should not be disposed of with household waste. Please recycle them in the dedicated facilities. Check with your local authority or retailer for information on recycling. Complies with all regulatory standards in force in the EU country where the product is bought Risk of personal injury, death, or damage to the device in case of non-compliance.
-
Page 9: Technical Data
2. TECHNICAL DATA a) Parts list 1. Upper handle 5. Wheels 2. Lower handle 6. Motor protection 3. Switch box 7. Cable hook 4. Grass collection compartment b) Technical data - Voltage: 230-240V~50Hz - Power index: 1400W - No-load speed: 3450min - Cutting height: 25-75mm, 5 Positions - Cutting width: 380mm Protection class: II... -
Page 10: Assembly
3. ASSEMBLY Preparation: 1) Place the cable hook on the upper handle (fig.1a) 2) Secure the upper and lower handles with the screws and bolts provided (fig.1b) 3) Insert the handles into the mower body (fig.1c) 4) Adjust each wheel to its axis, secure them with the "R" pins (fig. 1d) 5) Attach the cable holders (fig.1e) 6) Mounting the grass collection compartment. -
Page 11: Operation
Warning! Disconnect the mower from the power supply and ensure the blade has stopped coasting before adjusting the height. 4. OPERATION Connect to power supply Warning! Before connecting to the mains supply, always check the switch is in off position. Connect the plug into the RCD protected power supply. -
Page 12: Maintenance And Storage
supply, then as shown in the diagrams below, use a screwdriver to lock the pin, then use a wrench to tighten the blade. Caution! Avoid working towards the cable. 5. MAINTENANCE AND STORAGE 1. Keep all nuts, bolts and screws firmly tightened to ensure that the mower can operate safely. 2. -
Page 13: Declaration Of Conformity
BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux -France Declares that the machinery designated below: ELECTRIC LAWN MOWER HTDE1400 Serial number: 20221106340-20221106449 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it;... -
Page 14: Warranty
7. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 15: Product Failure
8. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 16: Warranty Exclusions
9. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
