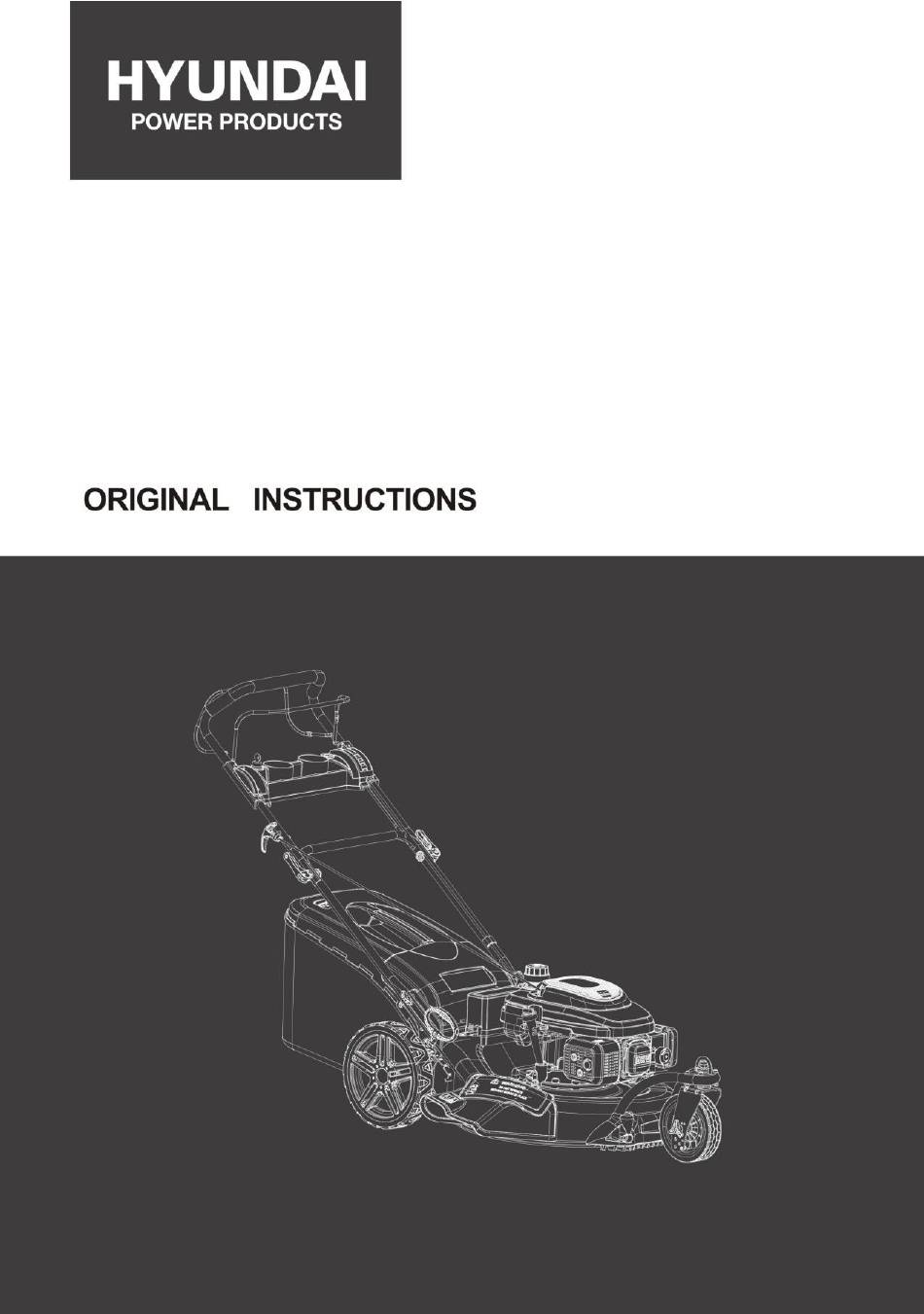

- Page 1 Petrol lawn mower HTDT561ES-1 WARNING: Read thoroughly the instruction manual before use...
-
Page 2: Safety Instructions
1. SAFETY INSTRUCTIONS Instructions Read the instructions carefully. Be familiar with the controls and proper use of the equipment. Never allow children to use this mower. If the mower is given to an other people, also give this manual. Also make sure that this person uses this device only after receiving the necessary instructions. - Page 3 monoxide emissions can be collected. Mow only under daylight or under good artificial light. Always have a good visibility. Avoid using the equipment on greasy grass, where possible. Always be sure of your walking on the slopes. Walk, never run.
- Page 4 o Before refuelling. When the tool is stopped, park it in a safe place. Move slowly when moving. The lawnmower should not be used in slopes and near drop-offs, ditches or embankments; if the tool must be used in these kinds of emplacements, take an extreme precaution and operate carefully the tool.
- Page 5 Never lift the rear of the mower when starting the engine and never place your hands or feet under the mower deck or in the rear ejection port while the engine is running. Turn off the engine and remove the spark plug cap in the following cases: ...
- Page 6 handle blades when they are in a complete stop and wear protective gloves. Fuel Handling Use caution when handling fuels. They are flammable and the vapours are explosive. Use only an approved container. Never remove the fuel cap or add fuel while the machine is on. Turn off the unit and allow the engine and exhaust components to cool down before refuelling.
- Page 7 temperatures. A long exposition to noise can affect the health of the operator. A hearing protection must be always used when operating the tool. The operation of the tool must be limited and some rest must be taken between two sessions (e.g. 10min of operation and 20min of rest).
- Page 8 Stop the machine before removing any foreign objects from the working area. Never mow while people, especially children, or animals are nearby. Guaranteed sound power level...
-
Page 12: Your Product
2. YOUR PRODUCT 1. Description (figure 1 Upper handlebar 2 Training bar 3 Security bar 4 Lower handlebars 5 Cable clamp 6 Flap 7 Oil tank cap with dipstick 8 Tank cap 9 Engine cover 10 Muffler protection 11 Candle + candle sheet 12 Front wheel 13 Air filter (not visible) 14 Air filter cover... - Page 13 Oil tank volume 600 ml Engine oil HD SAE 30 or 10W-30 Spark plug Torch F6RTC or LG F6RTC Cutting width 56 cm Cutting height 6 positions 25-75 mm Grass catcher volume 75 l Weight 38,4 kg Sound pressure level (L Max.
- Page 14 c. Bars assembly ( figure - Fasten the lower handlebar (4) with the fixing screws of the latter and with the wing nuts. To determine the desired inclination, choose one of the two possible screw positions. - Fold down the upper handlebar (1) (small image) and press the lock lever (20) in the direction of the bar.
- Page 15 d. Grass catcher (figure - Place the synthetic tabs (28) on the grass catcher (27). - Lift the flap. Insert the handle into the grass catcher. The hook must be on the bar of the grass catcher emplacement. NOTE: When using the grass catcher, do not use the mulching device and the lateral discharge in same time.
-
Page 16: Oil And Fuel Filling
g. Adjust the cutting height (Figure The device has 6 positions for adjusting the cutting height (from 25 to 75 mm): - Pull the lever (18) outward and push it to the desired position. - Press the lever inward again. - Set the corresponding height also on the front wheel. - Page 17 - Clean the gasoline if you have spilled. - Keep gasoline away from any spark, flame or other source of fire. - Do not use gasoline and oil mixture. - Use normal or super unleaded gasoline. - Use only fresh and clean gasoline. - Do not store gasoline for more than a month as its quality may be reduced.
-
Page 18: Maintenance
c. Mowing - Self-propeller function (Figure M) The self-propelled mechanism engages by pressing the safety lever on the handle. Self-propelled mechanism ceases when you release this bar. Pull the safety lever back towards the handle to mow without the self- propelled mechanism. - Page 19 the engine may be damaged. - Always keep the device clean. To clean it, use a brush or cloth but no cleaning agents or acidic solutions. Do not use water to clean the engine as it may clog the fuel system. - After mowing, remove the remains of plants stuck with a piece of wood or plastic.
- Page 20 d. Adjust the cable (fig. P) If the control cable for the transmission is out of sync and has too much play, you can fix it. - Loosen the small lock nut (32a). - Turn the adjusting nut (32b) counter clockwise: The control cable is shortened.
- Page 21 parts can cause serious damage to your mower and affect your safety. Contact our service agent to get specifications about the correct original spare parts. To remove the blade, loosen the screw, check the blade bracket, and replace all parts if they are worn or damaged. To sharpen the blade, place it in a clamp and file the sharp edges evenly, checking the balance of the blade.
- Page 22 b. Storage and storage for long periods without use Failure to follow the storage instructions may lead to start-up problems due to gasoline residues in the carburettor or permanent damage. - Empty the fuel tank into a well-ventilated place. Start the engine and let it run until it stops due to lack of fuel.
- Page 23 BUILDER SAS 32, rue Aristide Bergès -Z1 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below PETROL LAWN MOWER HTDT561ES-1 20210107101-20210107380 Serial number: 20210305027-20210305346 Complies with the following European Directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EU Emission directive (EU) 2016/1628 &...
-
Page 24: Warranty
10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 25: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 26: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 27 Responsible of technical file: M. Olivier Patriarca...
