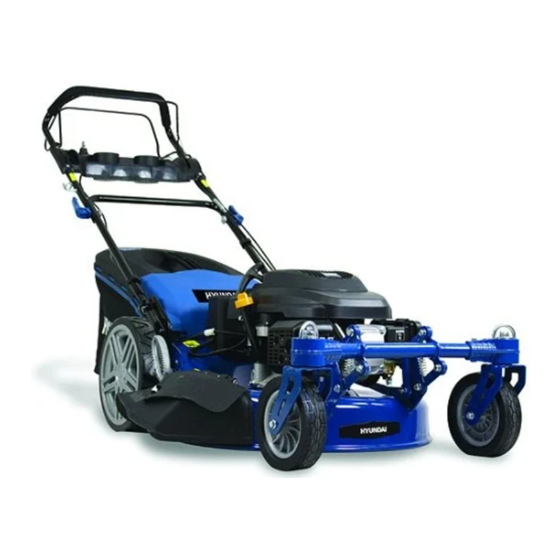

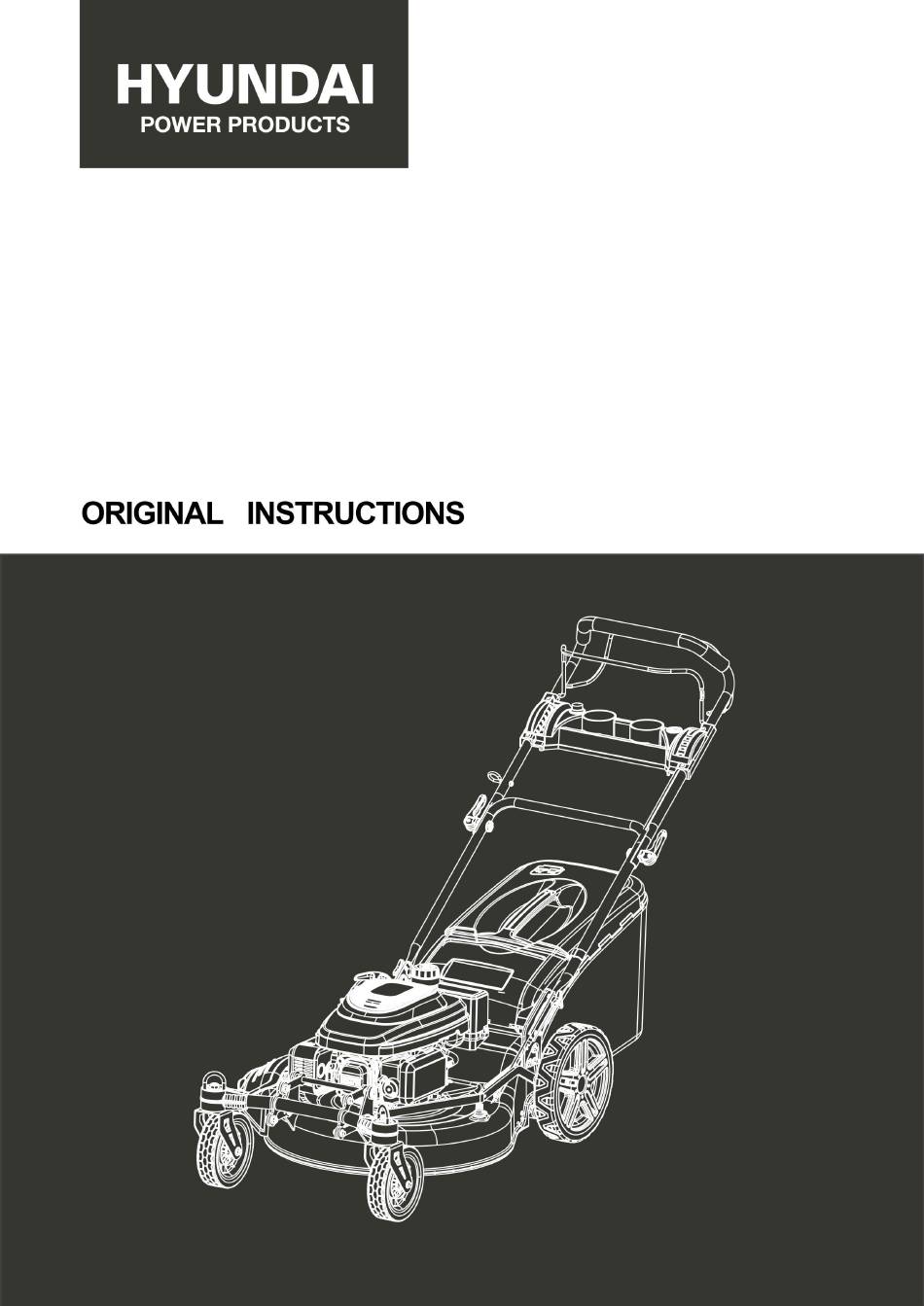

- Page 1 LAWN MOWER PETROL HTDT562ES-1 WARNING: Read thoroughly the instruction manual before use.
- Page 2 1. SAYETY INSTRUCTIONS Instructions Read the instructions carefully. Be familiar with the controls and proper use of the equipment. Never allow children to use this mower. If the mower is given to an other people, also give this manual. Also make ...
- Page 3 The controls must be always checked if they are functioning correctly. In case of malfunction, do not use the tool and bring to a service agent for inspection. Stop the engine immediately: o Every time you leave the tool alone and the working area o Before refuelling.
- Page 4 To avoid health issues, limit the time of operation. Take enough rest. Exposure to noise and vibrate can have bas consequences on health. WARNING: There is a danger about moving blade assemblies. Always handle blades when they are in a complete ...
- Page 5 The user is responsible for accidents or damage caused to people or their property. The manufacturer is not liable for damage caused by improper use or improper handling. Description Technical information Model HTDT562ES-1 Nominal power 3.5 kW Speed 2900/min Cutting width...
- Page 6 ASSEMBLY Handle Unfold handle carefully so as not to pinch or damage control cables. 1. Raise handles until lower handle section locks into place in mowing position. 2.Remove protective padding, raise upper handle section into place on lower handle and tighten both handle knobs. Adjust front wheels The lawn mower is extremely flexible and maneuverable thanks to the special construction of the front wheels.
-
Page 7: Adjust Cutting Height
Mulching kit Before using the mulching kit, the lateral discharge must be removed. Assembly Remove the grass catcher if installed. Lift the flap. Fully insert the mulching kit at the back of the tool. Press the kit to lock it in place. Disassembly Lift the flap. -
Page 8: Operation
Do not overfill. Wipe off any fuel that has overflowed before starting the engine. a. Engine oil Recommended oil: We recommend the use of high quality detergent oil classified such as SAE30. Do not use special additives. Filling oil tank Open the oil tank. -
Page 9: Maintenance And Storage
Work instructions Mow dry grass as much as possible to save grass. Adjust the cutting height so that the machine is not overworked. Drive the machine at moderate speed (walking) along the belt as straight as possible. For a perfect mowing result, the strips must always overlap for a few centimetres Do not back away. -
Page 10: Draining The Fuel Tank And Carburetor
Spark Plug Once the engine has cooled, remove the spark plug. Clean the plug with a wire brush. Using a feeler gauge, set the gap to 0.75 mm( 0.030"). Refit the spark plug taking care not to over tighten. Air Filter Unclip the air filter cover and remove the sponge filter element. -
Page 11: Maintenance Schedule
MAINTENANCE SCHEDULE After5 h After After Once Befor After SERVICE 50 h a year Mowing check and tighten nuts, bolts and screws Check the oil / fuel level and refill oil / fuel if necessary Clean control elements / ... -
Page 12: Declaration Of Conformity
32, rue Aristide Bergès -Z1 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below PETROL LAWNMOWER HTDT562ES-1 Serial number: 20220115392-20220115606 Complies with the following European Directives: Machine Directive 2006/42/EC EMC Directive 2014/30/EU Emission directive (EU) 2016/1628 &... -
Page 13: Warranty
WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 14: Product Failure
PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 15: Warranty Exclusions
WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
