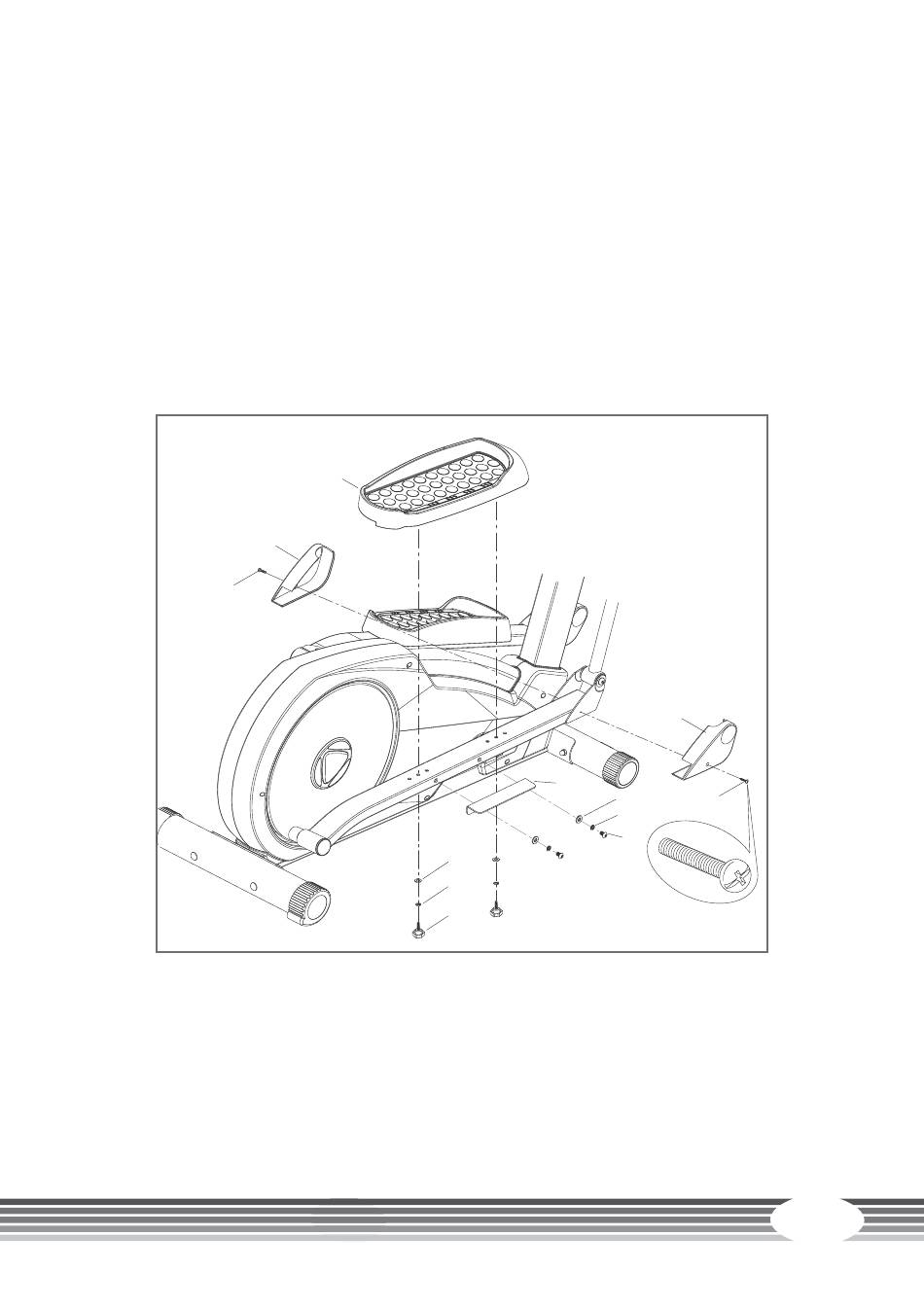

Step 8: Assembly of the pedal-arm covers
Mount the covers (U3 and U4) on the pedal arms using screw (W2). Repeat this process
for the other side.
Step 9: Assembly of the pedals
Fix the bracket (W10) to the pedal rod using screw (W7), spring washer (W9) and washers
(W8). Repeat the process on the other side. Install the right pedal (U6) using washers
(W4), spring washers (W5) and adjusting knobs (W6). The pedals can be mounted in any
of the three positions. Repeat this process for the left pedal (U5).
W2
After assembly carry out a further check to ensure that all of the screws are
tightly done up!
