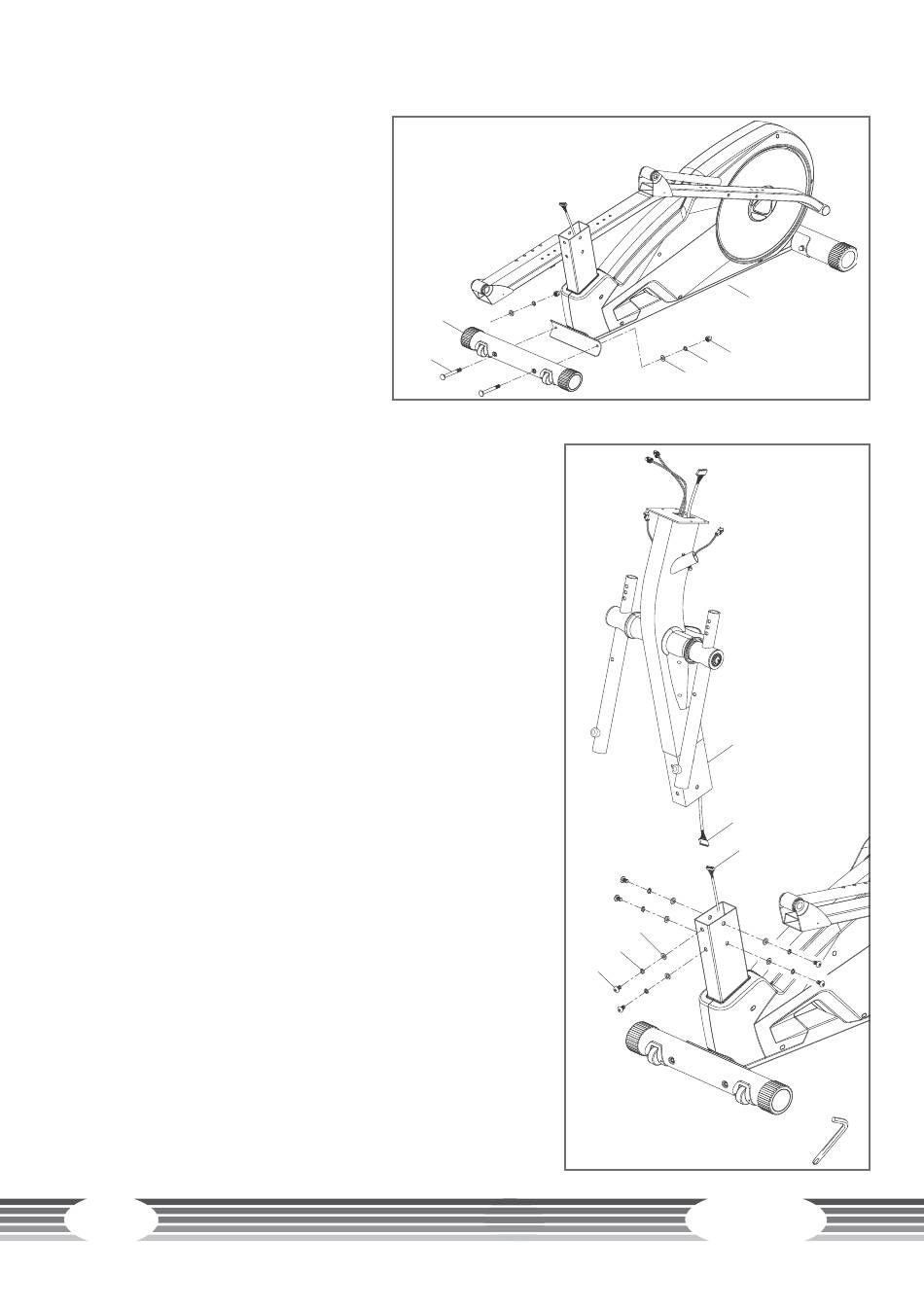

Step 2: Assembly of the front supporting foot
First remove the screws (Q7),
washers (Q8), spring washers
(Q9) and nuts (Q10) from the
rear supporting foot (Q). Put the
screws (Q7) through the front
supporting foot (Q) and the
bracket on the frame (N). Then
secure the supporting foot with
two washers (Q8), two spring
washers (Q9) and two nuts (Q10).
Stabilize the equipment:
If the equipment is not stable after assembly (after
Step 2), make adjustments to the adjusting screws
underneath the supporting foot (P2) accordingly.
Step 3: Assembly of the console mast
First, remove the bolts(O21), spring washers(O14)
and washer(O13) from the central support tube(B).
(1) Connect the cable(O5) & (N15).
(2) Assemble the central support tube(O)
onto the main frame(N) with bolts(O21), spring
washer(O14) and washer(O13).
Warning: Take care that the cable does not get
pinched when you push the parts together.
14
Q
Q7
O21
N
Q10
Q9
Q8
O
O5
N15
O13
O14
EX40
Use tool
