5. Connection description

Electrical
Connection
IN+ 4-20 mA set-point signal +
IN- 4-20 mA set-point signal -
Feedback signal module
OUT+
18-30 V DC +
Feedback signal module
OUT-
4-20 mA output
Remarks: For the separate type of the positioner, OUT1 and OUT2 are blocked and not used.
NOTES：

Electrical cables must use shielded twisted pair or shielded wires. Connect one end of the
cable shielding layer to the
So that the device is effectively grounded to prevent electromagnetic interference.

Keep electrical cables away from strong magnetic fields.

Must install or remove the electrical cable when the device is powered off.
HART communication wiring:
Connect the two signal wires of the HART modem or HART communicator to the positive and
negative poles of the 4-20 mA setting signal.
Intelligent Valve Positioner IP6000 Series User's Manual
-
+
IN OUT
IN

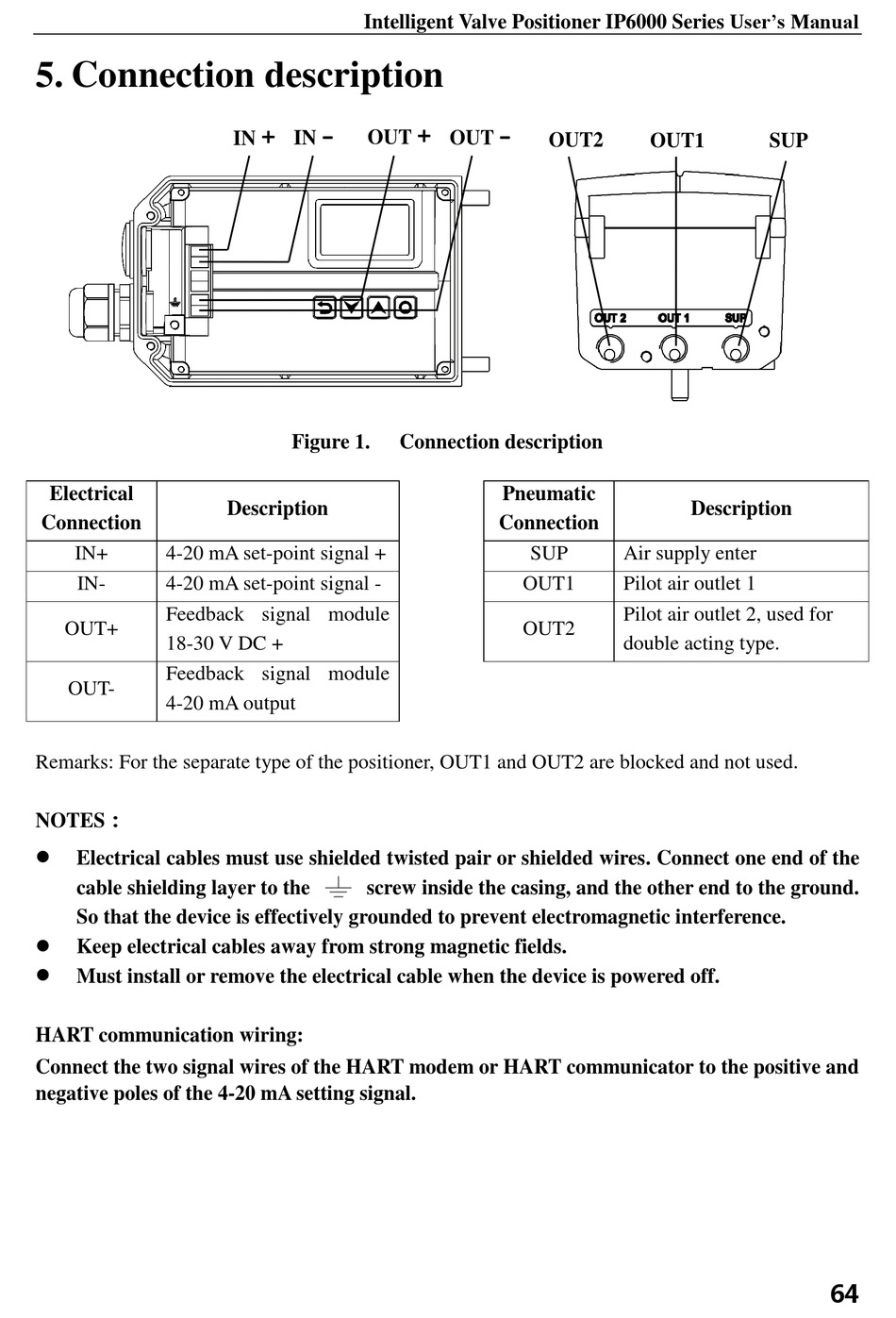

Figure 1.
Description
screw inside the casing, and the other end to the ground.
-
+
OUT
OUT2
Connection description
Pneumatic
Connection
SUP
OUT1
OUT2
OUT1 SUP
Description
Air supply enter
Pilot air outlet 1
Pilot air outlet 2, used for
double acting type.
