value of the displacement sensor. Otherwise, the positioner cannot match the actuator.
Maximum valve stroke
25 mm
 Raise the internal valve stem of the actuator to the highest position. Make the actuator
connection of the sensor entering into the thread connection of the actuator by NO.32 wrench.
Intelligent Valve Positioner IP6000 Series User's Manual
D range
46~54 mm

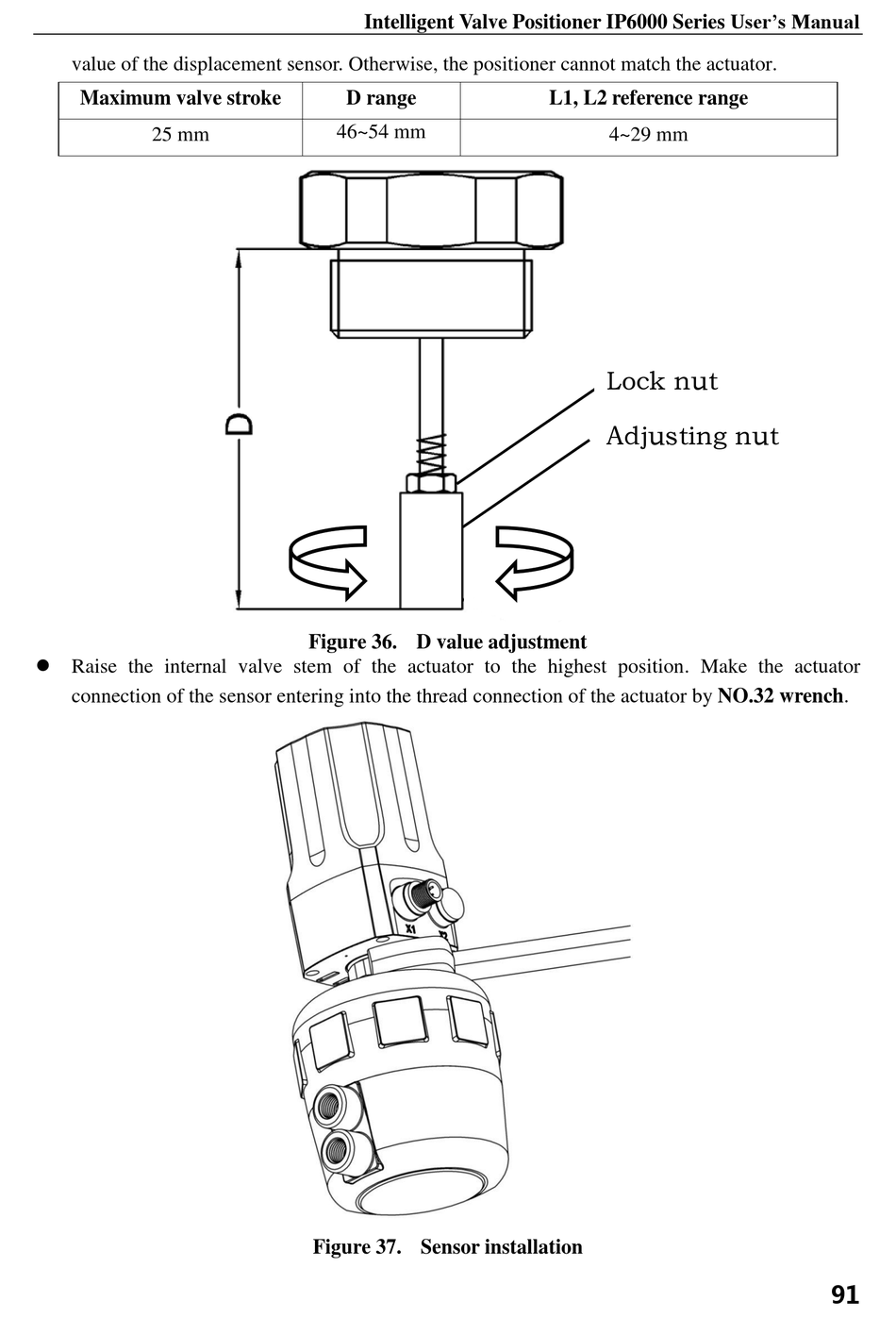

Figure 36. D value adjustment
Figure 37. Sensor installation
L1, L2 reference range
4~29 mm
Lock nut
Adjusting nut
91
