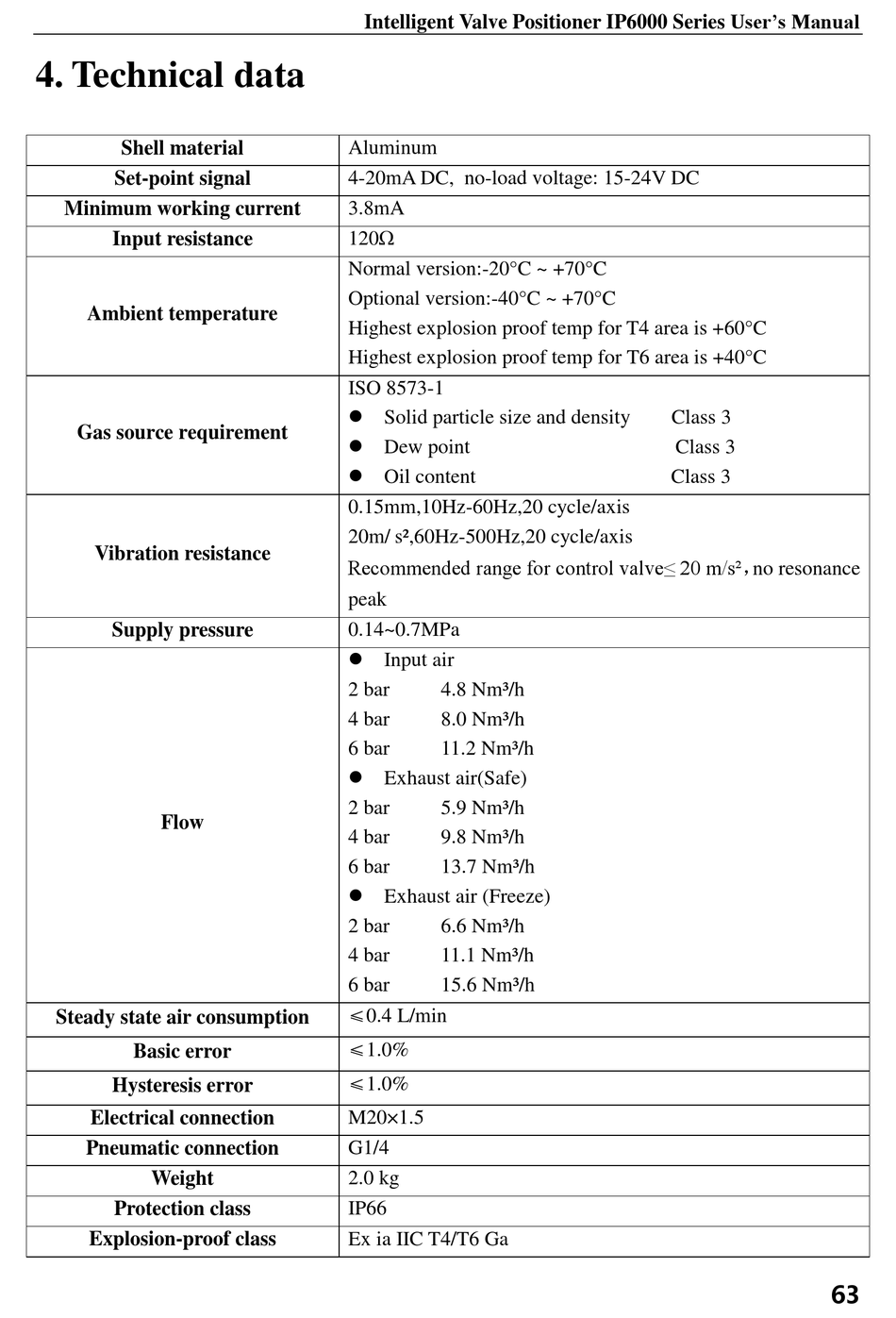

4. Technical data

Shell material
Set-point signal
Minimum working current
Input resistance
Ambient temperature
Gas source requirement
Vibration resistance
Supply pressure
Flow
Steady state air consumption
Basic error
Hysteresis error
Electrical connection
Pneumatic connection
Weight
Protection class
Explosion-proof class
Intelligent Valve Positioner IP6000 Series User's Manual
Aluminum
4-20mA DC, no-load voltage: 15-24V DC
3.8mA
120Ω
Normal version:-20°C ~ +70°C
Optional version:-40°C ~ +70°C
Highest explosion proof temp for T4 area is +60°C
Highest explosion proof temp for T6 area is +40°C
ISO 8573-1
 Solid particle size and density
 Dew point
 Oil content
0.15mm,10Hz-60Hz,20 cycle/axis
20m/ s²,60Hz-500Hz,20 cycle/axis
Recommended range for control valve≤ 20 m/s²， no resonance
peak
0.14~0.7MPa
 Input air
2 bar 4.8 Nm³ /h
4 bar 8.0 Nm³/h
6 bar 11.2 Nm³/h
 Exhaust air(Safe)
2 bar 5.9 Nm³ /h
4 bar 9.8 Nm³ /h
6 bar 13.7 Nm³ /h
 Exhaust air (Freeze)
2 bar 6.6 Nm³ /h
4 bar 11.1 Nm³/h
6 bar 15.6 Nm³ /h
≤
0.4 L/min
≤
1.0%
≤
1.0%
M20×1.5
G1/4
2.0 kg
IP66
Ex ia IIC T4/T6 Ga
Class 3
Class 3
Class 3
