 Pay attention to the difference between the remote type and the normal type. For the installation

of the remote type, please refer to the installation of the normal type.

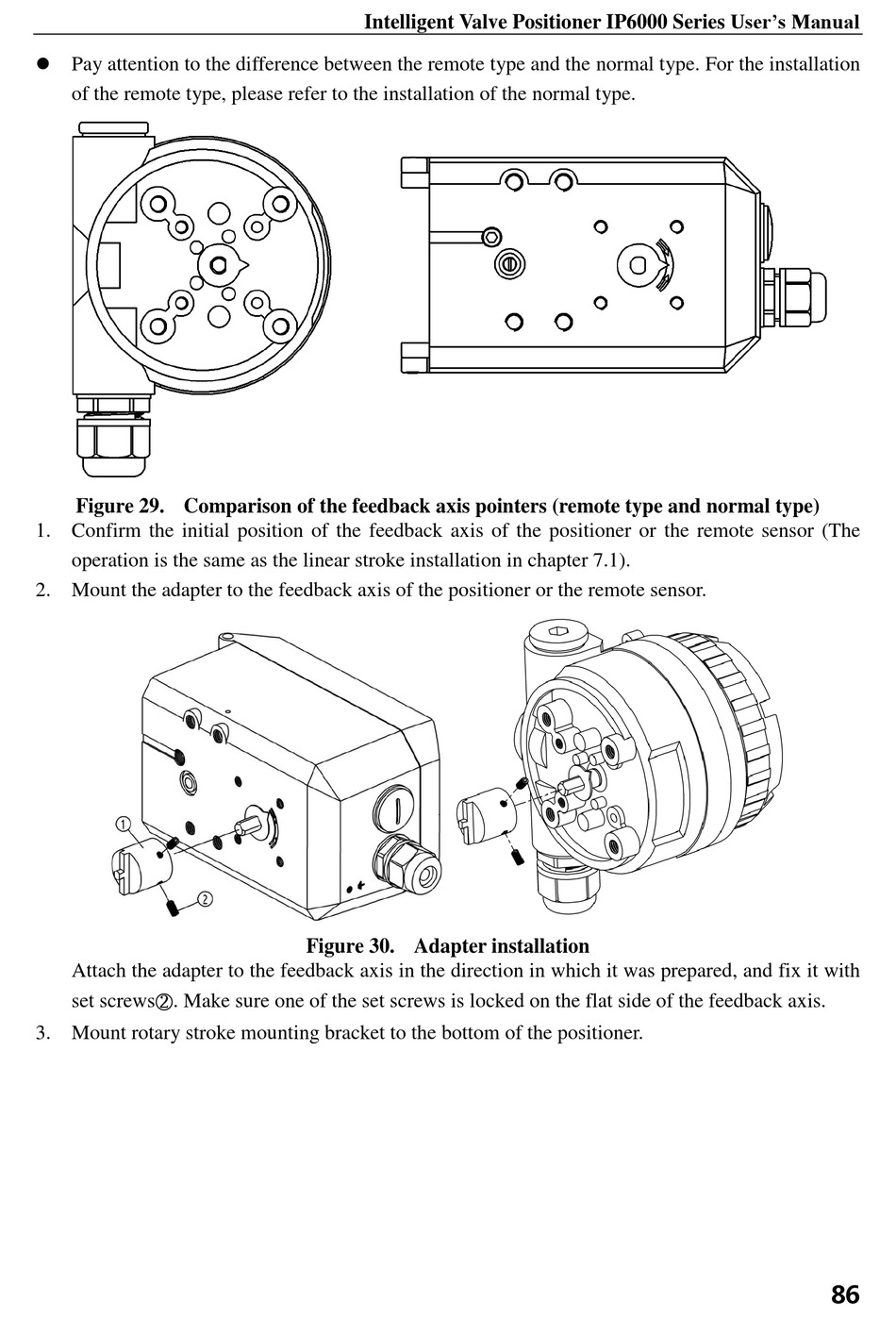

Figure 29. Comparison of the feedback axis pointers (remote type and normal type)

1. Confirm the initial position of the feedback axis of the positioner or the remote sensor (The

operation is the same as the linear stroke installation in chapter 7.1).

2. Mount the adapter to the feedback axis of the positioner or the remote sensor.

Attach the adapter to the feedback axis in the direction in which it was prepared, and fix it with

②

set screws

. Make sure one of the set screws is locked on the flat side of the feedback axis.

3. Mount rotary stroke mounting bracket to the bottom of the positioner.

Intelligent Valve Positioner IP6000 Series User's Manual

Figure 30. Adapter installation
