1. Overview

IP6000 series intelligent valve positioner is mounted on pneumatic actuators. It's used to
control air intake and exhaust of the pneumatic actuators to drive the valve position to the set point
by calculating both data from 4-20 mA DC signal and feedback position.

2. One-key automatic initialization

1. Please read the installation instructions in chapter 7 before installing the positioner. Install the
positioner according to the installation requirements described. Please pay attention to some
installation points. For example, confirm the initial position of the feedback axis of the
positioner or remote sensor before installation. Do not turn the feedback axis 360° during
installation. For the positioner of normal linear type, make the upper plane of the positioner
housing at a right angle to the main stem of the valve. Within the valve stroke range, the
rotation angle of the positioner feedback lever meets the installation requirements.
2. After installing the positioner on the valve, connect the air source and electrical cables. Ensure
that the air source pressure can fully open the valve. Power on the positioner by inputting a
4-20mA signal.
3. After the positioner is powered on, Positioner is in the uninitialized state before initialization.

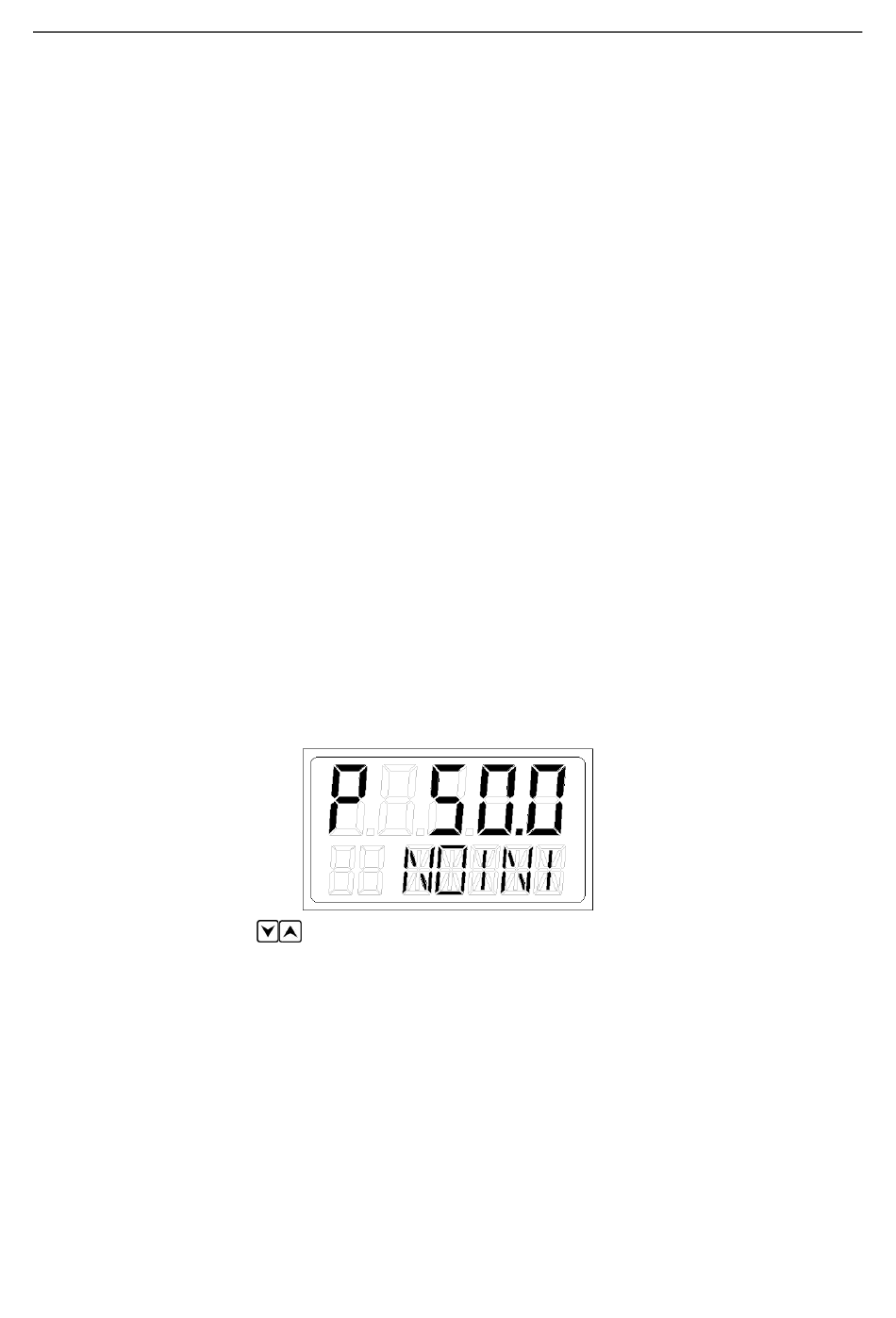

When LCD displays the sign NOINI, interface displays percentage value of sensor in the top
line. As shown below.
In this state, pressing
observe the percentage value of sensor displayed on the interface. For non-separate type, ensure
that within the entire valve stroke range, the minimum sensor percentage value
maximum sensor percentage value
installation position to make the linear stroke feedback lever or the angle stroke adapter move
within the effective range. For separate type, ensure that within the entire valve stroke range,
the minimum sensor percentage value
92%. Otherwise, the D value of the sensor needs to be adjusted. In addition, the minimum and
maximum percentage difference of the sensor is required to be greater than 20% (non-separate
type) or 10% (separate type).
Intelligent Valve Positioner IP6000 Series User's Manual
buttons can open and close valve. Open and close valve fully, and
≤
95%. Otherwise, it is necessary to re-adjust the
≥
12%, and the maximum sensor percentage value
≥
5%, and the
≤
