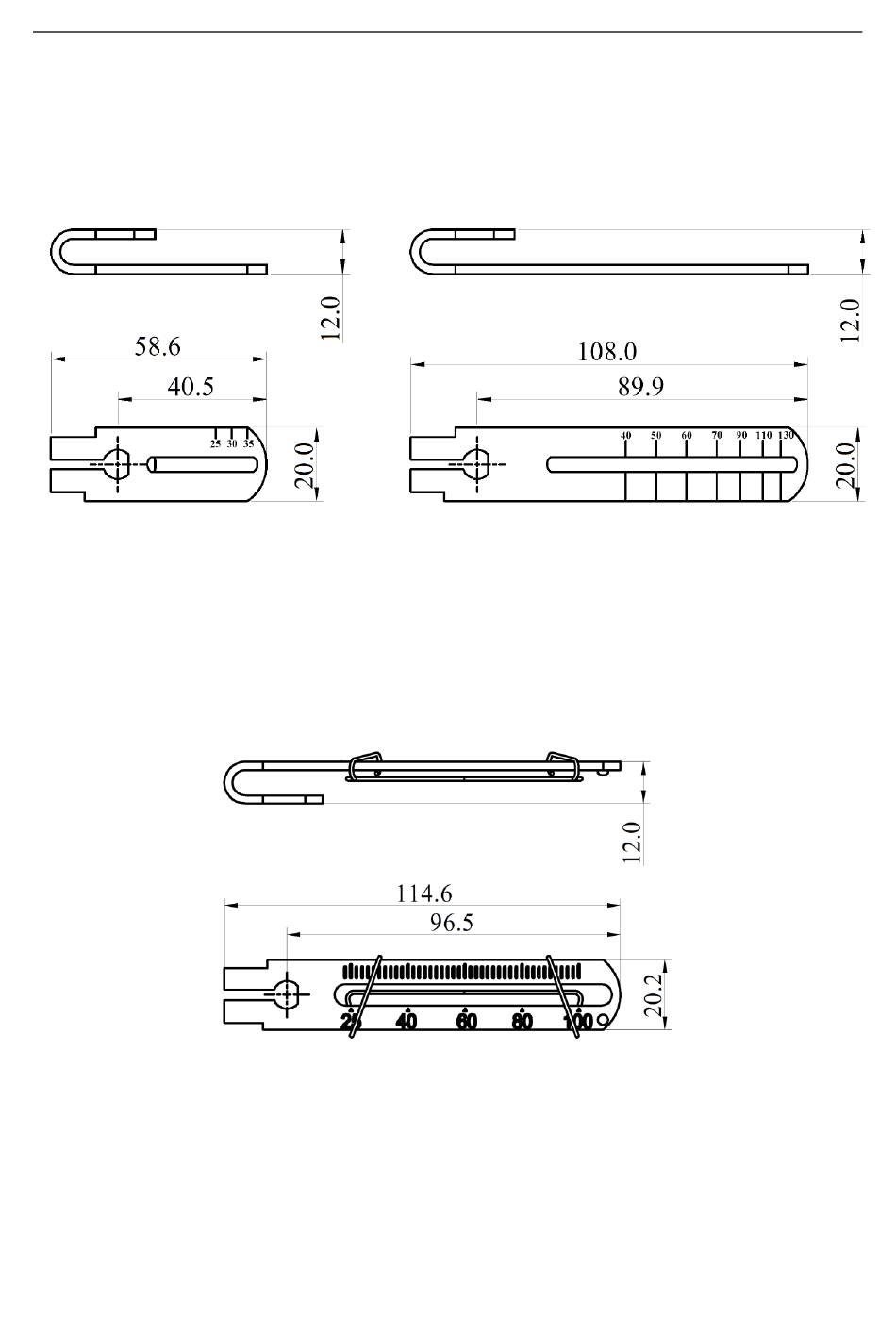

6.3. Dimension of linear stroke feedback lever

6.3.1. Feedback lever A (with driving pin)

Short feedback lever
(Suitable stroke: 10 ~ 35mm)

6.3.2. Feedback lever B (without driving pin)

Intelligent Valve Positioner IP6000 Series User's Manual
Figure 7.
Dimension of feedback lever A
(Suitable stroke: 25 ~ 100mm)
Figure 8.
Dimension of feedback lever B
Long feedback lever
(Suitable stroke: 35 ~ 100mm)
70
