requirements.
error minimum

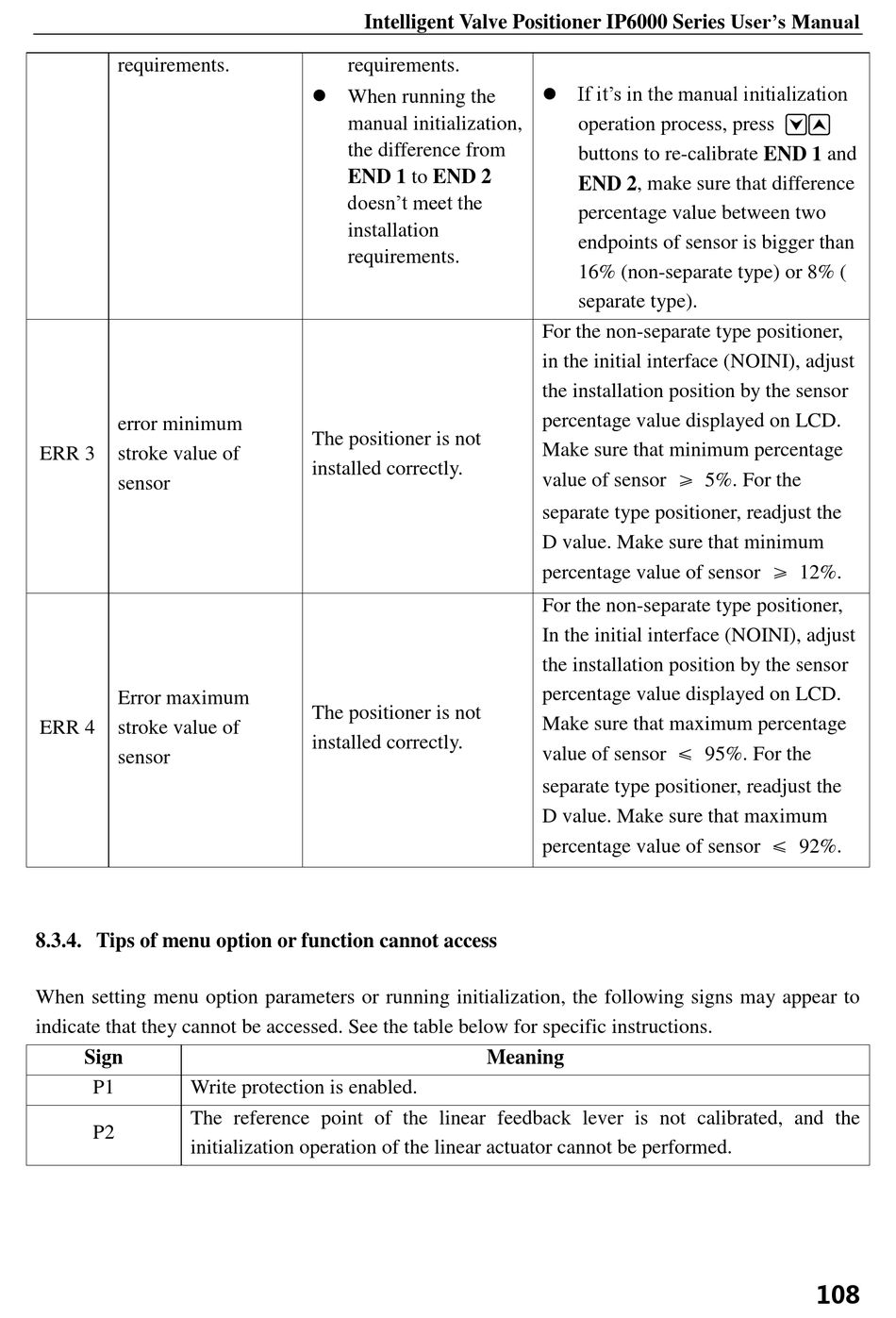

ERR 3
stroke value of
sensor
Error maximum
ERR 4
stroke value of
sensor
8.3.4. Tips of menu option or function cannot access
When setting menu option parameters or running initialization, the following signs may appear to
indicate that they cannot be accessed. See the table below for specific instructions.
Sign
P1
Write protection is enabled.
The reference point of the linear feedback lever is not calibrated, and the
P2
initialization operation of the linear actuator cannot be performed.
Intelligent Valve Positioner IP6000 Series User's Manual
requirements.
 When running the
manual initialization,
the difference from
END 1 to END 2
doesn't meet the
installation
requirements.
The positioner is not
installed correctly.
The positioner is not
installed correctly.
 If it's in the manual initialization
operation process, press
buttons to re-calibrate END 1 and
END 2, make sure that difference
percentage value between two
endpoints of sensor is bigger than
16% (non-separate type) or 8% (
separate type).
For the non-separate type positioner,
in the initial interface (NOINI), adjust
the installation position by the sensor
percentage value displayed on LCD.
Make sure that minimum percentage
value of sensor
separate type positioner, readjust the
D value. Make sure that minimum
percentage value of sensor
For the non-separate type positioner,
In the initial interface (NOINI), adjust
the installation position by the sensor
percentage value displayed on LCD.
Make sure that maximum percentage
value of sensor
separate type positioner, readjust the
D value. Make sure that maximum
percentage value of sensor
Meaning
5%. For the
12%.
95%. For the
92%.
108
