 Enter submenu, enable or confirm parameter modification in menu mode.
 Run initialization or reset to factory settings.
 Run initialization in initial interface (NOINI) or in operating mode.

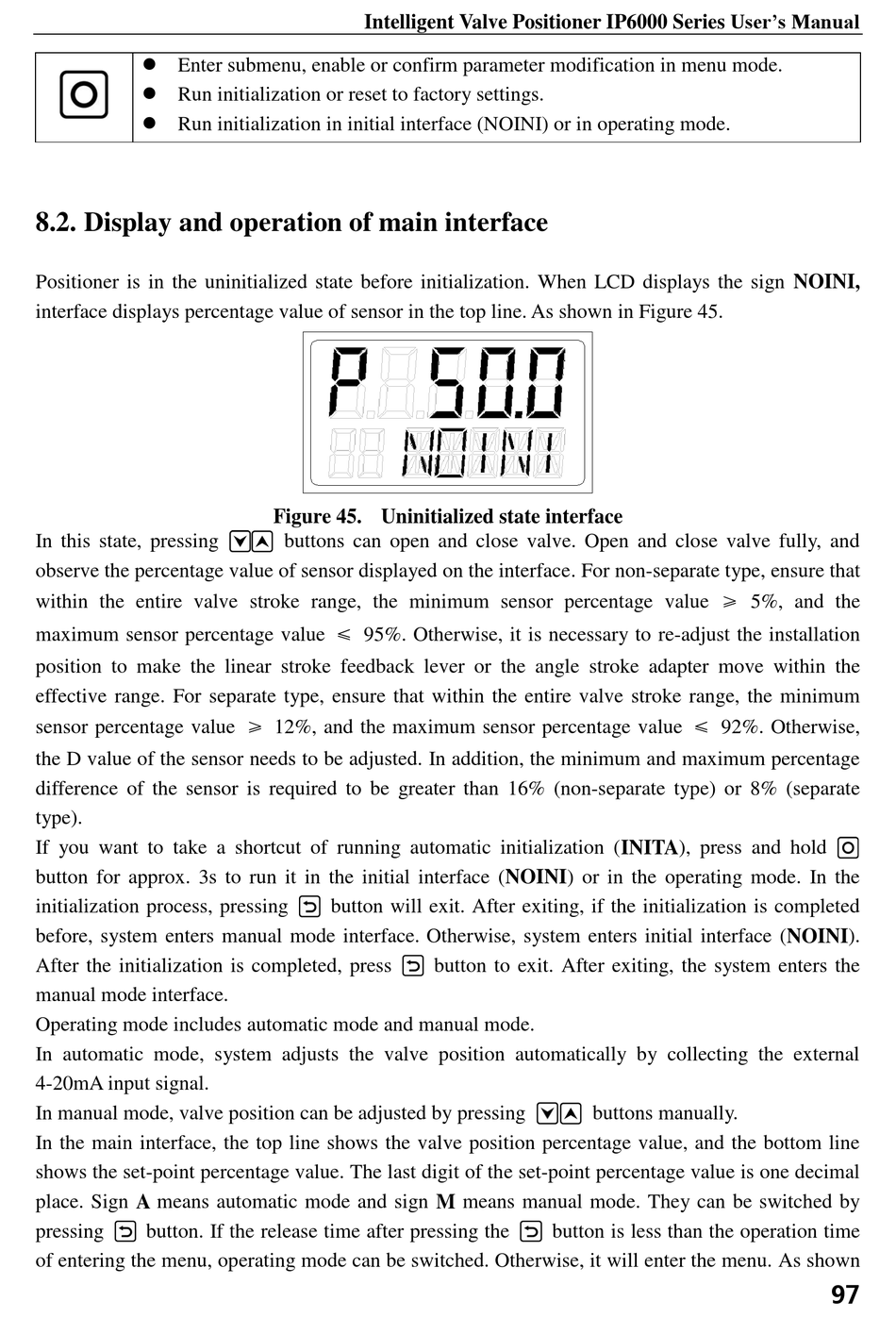

8.2. Display and operation of main interface

Positioner is in the uninitialized state before initialization. When LCD displays the sign NOINI,
interface displays percentage value of sensor in the top line. As shown in Figure 45.
In this state, pressing
observe the percentage value of sensor displayed on the interface. For non-separate type, ensure that
within the entire valve stroke range, the minimum sensor percentage value
maximum sensor percentage value
position to make the linear stroke feedback lever or the angle stroke adapter move within the
effective range. For separate type, ensure that within the entire valve stroke range, the minimum
sensor percentage value
the D value of the sensor needs to be adjusted. In addition, the minimum and maximum percentage
difference of the sensor is required to be greater than 16% (non-separate type) or 8% (separate
type).
If you want to take a shortcut of running automatic initialization (INITA), press and hold
button for approx. 3s to run it in the initial interface (NOINI) or in the operating mode. In the
initialization process, pressing
before, system enters manual mode interface. Otherwise, system enters initial interface (NOINI).
After the initialization is completed, press
manual mode interface.
Operating mode includes automatic mode and manual mode.
In automatic mode, system adjusts the valve position automatically by collecting the external
4-20mA input signal.
In manual mode, valve position can be adjusted by pressing
In the main interface, the top line shows the valve position percentage value, and the bottom line
shows the set-point percentage value. The last digit of the set-point percentage value is one decimal
place. Sign A means automatic mode and sign M means manual mode. They can be switched by
pressing button. If the release time after pressing the
of entering the menu, operating mode can be switched. Otherwise, it will enter the menu. As shown
Intelligent Valve Positioner IP6000 Series User's Manual
Figure 45. Uninitialized state interface
buttons can open and close valve. Open and close valve fully, and
≤
95%. Otherwise, it is necessary to re-adjust the installation
≥
12%, and the maximum sensor percentage value
button will exit. After exiting, if the initialization is completed
button to exit. After exiting, the system enters the
buttons manually.
button is less than the operation time
≥
5%, and the
≤
92%. Otherwise,
97
