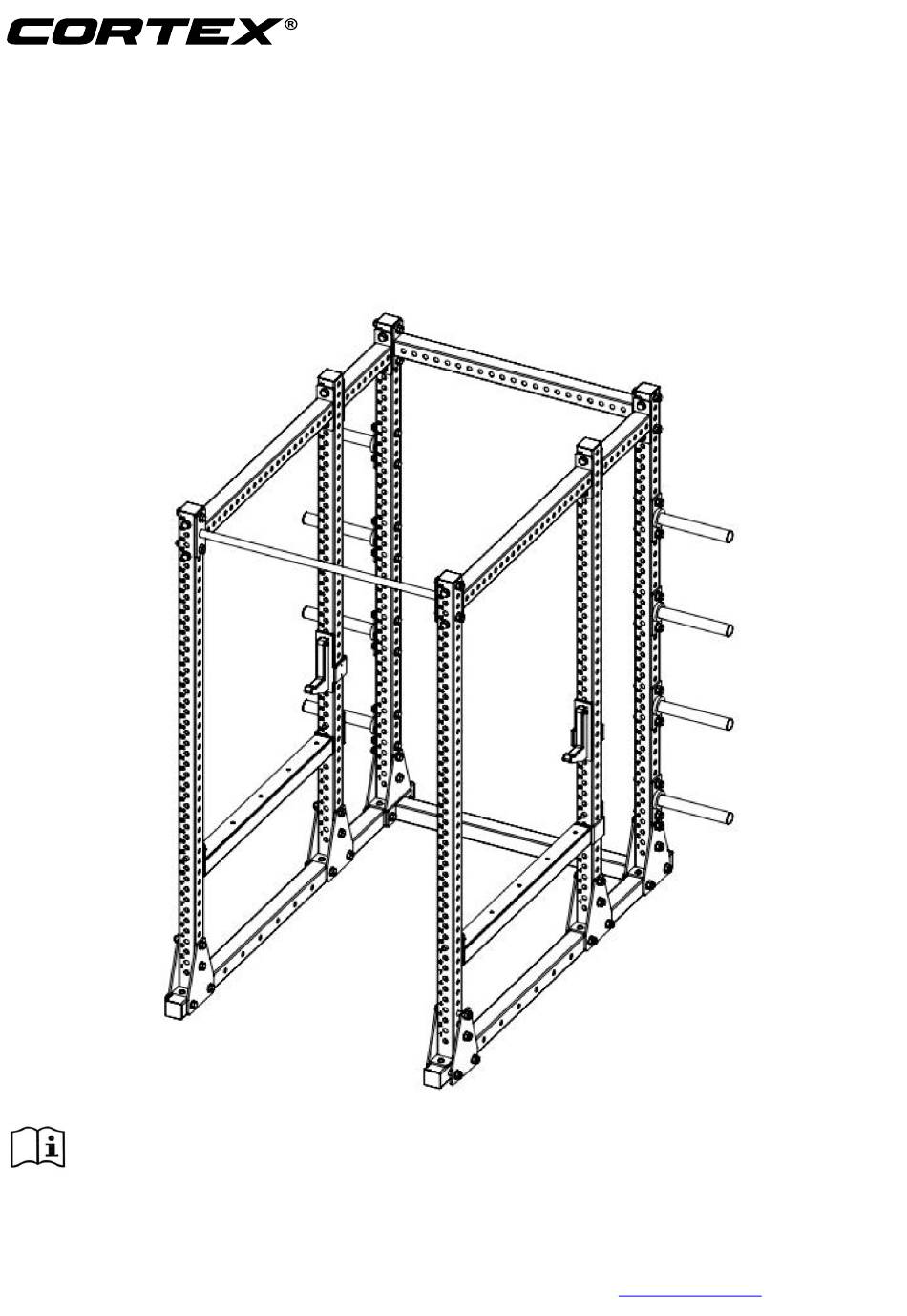

ALPHA SERIES ARK06
COMMERCIAL FULL RACK
WITH STORAGE
OWNER'S MANUAL
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner's manual for future
reference.
NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at
www.lifespanfitness.com.au
Advertisement
Table of Contents
Related Manuals for Cortex ARK06
Summary of Contents for Cortex ARK06
- Page 1 ALPHA SERIES ARK06 COMMERCIAL FULL RACK WITH STORAGE OWNER’S MANUAL Product may vary slightly from the item pictured due to model upgrades Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. IMPORTANT SAFETY INSTRUCTIONS ..........3 2. CARE INSTRUCTIONS ................ 4 3. PARTS LIST ..................5 4. ASSEMBLY INSTRUCTIONS ............... 6 5. WARRANTY ..................10... -
Page 3: Important Safety Instructions
1. IMPORTANT SAFETY INSTRUCTIONS WARNING - Read all instructions before using this machine. Please keep this manual with you at all times It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. Please note: It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. -
Page 4: Care Instructions
Always keep this instruction manual and assembly tools at hand for reference. The equipment is not suitable for therapeutic or commercial use. 2. CARE INSTRUCTIONS • Lubricate moving joints with silicon spray after periods of usage. • Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects. •... -
Page 5: Parts List
3. PARTS LIST Part Description QTY. The riser rack Top connection frame Short connection frame Long connection frame Top handle framework Right support hook Left support hook Right safety frame Left safety frame Bottom connection frame The barbell frame The bottom frame The fixed plate Flat washer φ20 Lock nut M20... -
Page 6: Assembly Instructions
4. ASSEMBLY INSTRUCTIONS Unpack the carton and place all parts on the floor. Carefully remove all packing material and check each part with the manual first. Remember, some parts are pre-fitted to larger components. IMPORTANT: Assemble with all nuts and bolts loose at first, only tighten after completing all assembly steps. - Page 7 STEP 2 1. Attach The riser rack (1) to The bottom tube (12) using Screw M12x25 (20), Spring washer Ф12 (19) and Flat washer Ф12 (16). 2. Attach The riser rack (1) to Long connection frame (4) and Short connection frame (3) using Screw M20x120 (17), Screw M20x110 (18), Flat washer Ф20 (14), Lock nut M20 (15).
- Page 8 STEP 3 1. Attach Top handle framework (5) to The riser rack (1), Using Screw M20x110(18), Flat washer Ф20 (14), Lock nut M20 (15). 2. Attach The bottom tube (12) to The riser rack (1), Using The fixed plate (13), Screw M20X120 (17), Screw M20X110 (18), Flat washer Ф20 (14), Lock nut M20 (15).
- Page 9 STEP 4 1. Attach The barbell frame (11) to The riser rack (1), Using Screw M20x110(18), Flat washer Ф20 (14), Lock nut M20 (15). 3. Attach Right support hook (6), Left support hook (7), Left safety frame (8) and Right safety frame (9) to The riser rack (1).
-
Page 10: Warranty
5. WARRANTY AUSTRALIAN CONSUMER LAW Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
