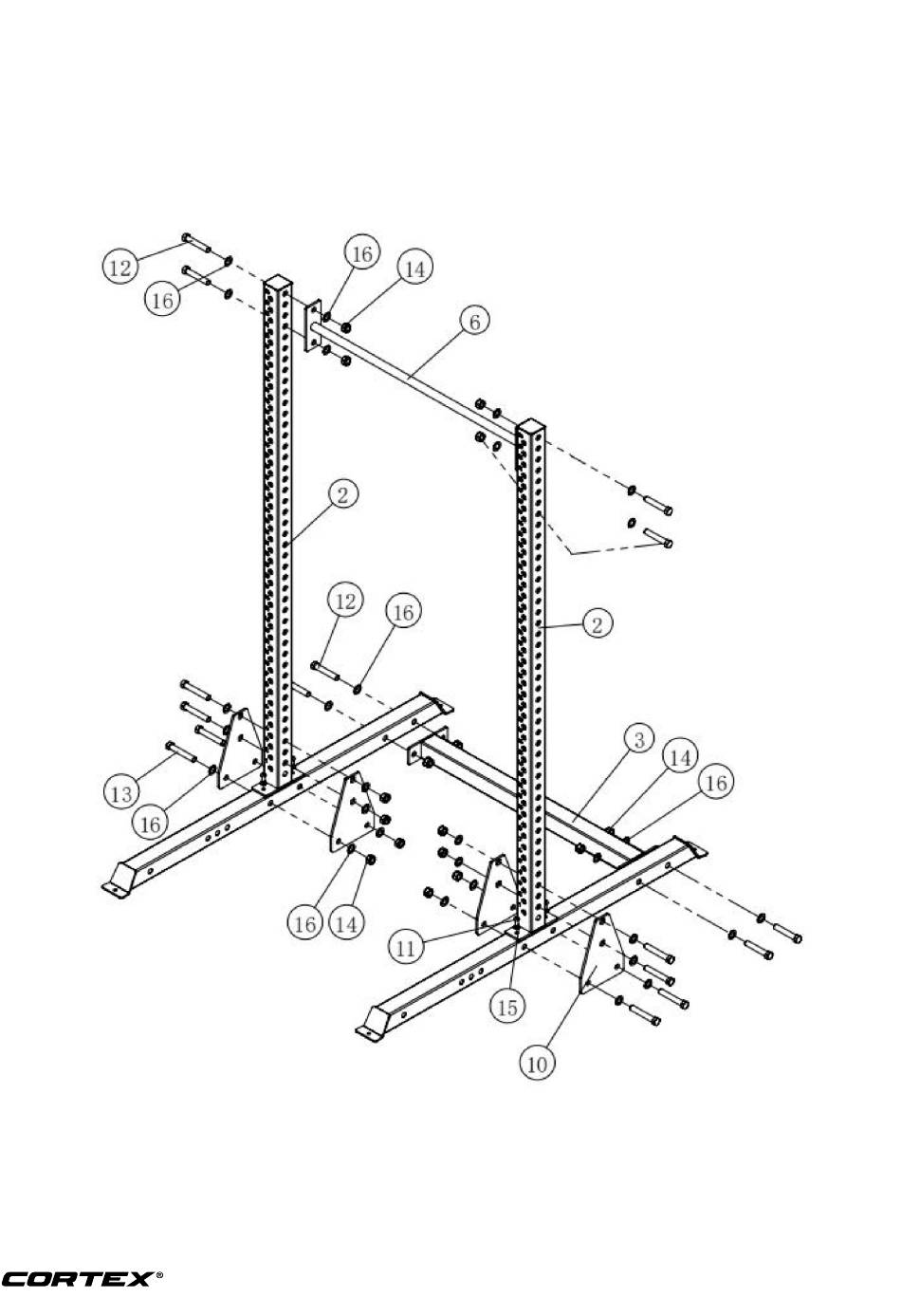

STEP 2
1. Attach Upright tube (2) to Bottom framework (1) using Connection plate (10), Screw M12x125
(11), Flat washer Ф12 (15), Screw M20X120(13), Flat washer Ф20 (16) and Lock nut M20 (14).
2. Attach Upper connection frame (6) to Upright tube (2) using Screw M20X110(12), Flat washer
Ф20 (16) and Lock nut M20 (14).
7
