7.2 EVM GUI Global Settings for ADC Control

Figure 7-3 shows that the EVM global controls are located on the left side of the GUI. These controls include
the filter type, data rate, PGA gain, input channels, number of samples, and others. The Pages control in the
upper-left allows access to the other pages in the GUI.
registers can be used to set the different device modes such as power, PGA, and ADC selection. Change the
register settings by clicking on each bit, typing a value directly into the Value column, or by selecting from the
drop-down menus in the Field View control.

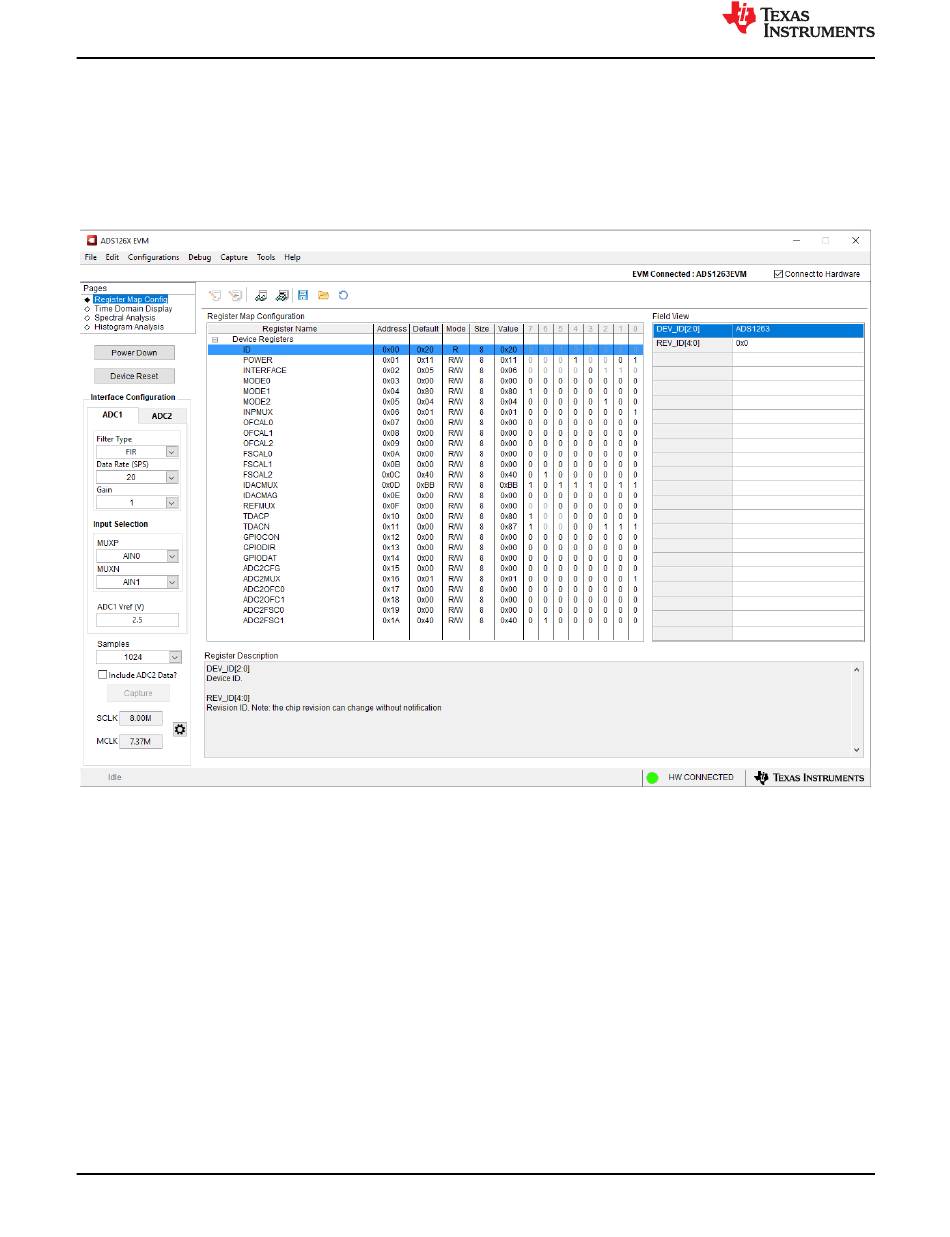

Figure 7-3. ADS1263EVM GUI Global Settings for the ADC Control Page
