7 EVM Operation and GUI

7.1 Connecting the EVM Hardware

After installing the EVM software, connect the EVM as shown in
steps:
1. Physically connect P2 of the PHI to J1 of the ADS1263EVM. Install the screws to provide a robust
connection.
2. Connect the USB cable from the computer to the PHI.
a. LED D5 on the PHI lights up, indicating that the PHI is powered up.
b. LEDs D1 and D2 on the PHI start blinking to indicate that the PHI is booted up and communicating with
the PC. Figure 7-1
3. Start the software GUI as shown in
PHI. This loading takes a few seconds and then the AVDD and DVDD power supplies turn on, as indicated
by LEDs D1, D2, and D3 on the ADS1263EVM.
4. Connect external sensors to terminal blocks J3-J6 in accordance with the examples given in
SBAU206B – APRIL 2015 – REVISED MAY 2023
Submit Document Feedback
shows the resulting LED indicators.
Figure 7-2. The LEDs blink slowly as the FPGA firmware is loaded on the

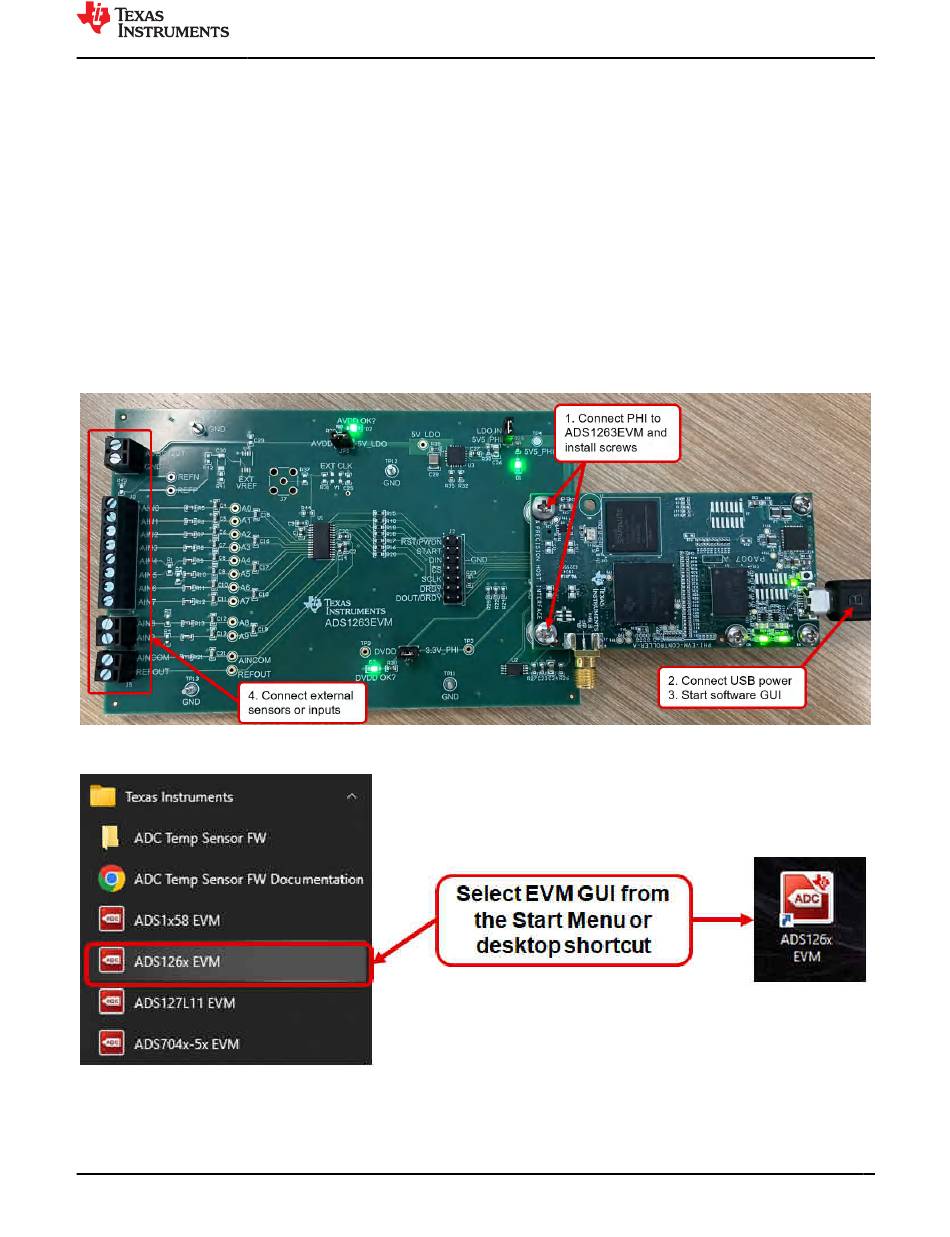

Figure 7-1. ADS1263EVM Hardware Connections
Figure 7-2. Launch the EVM GUI Software
Copyright © 2023 Texas Instruments Incorporated
Figure 7-1 and as described in the following
ADS1263EVM-PDK Evaluation Module
EVM Operation and GUI
Section 3.1.2.
