www.ti.com

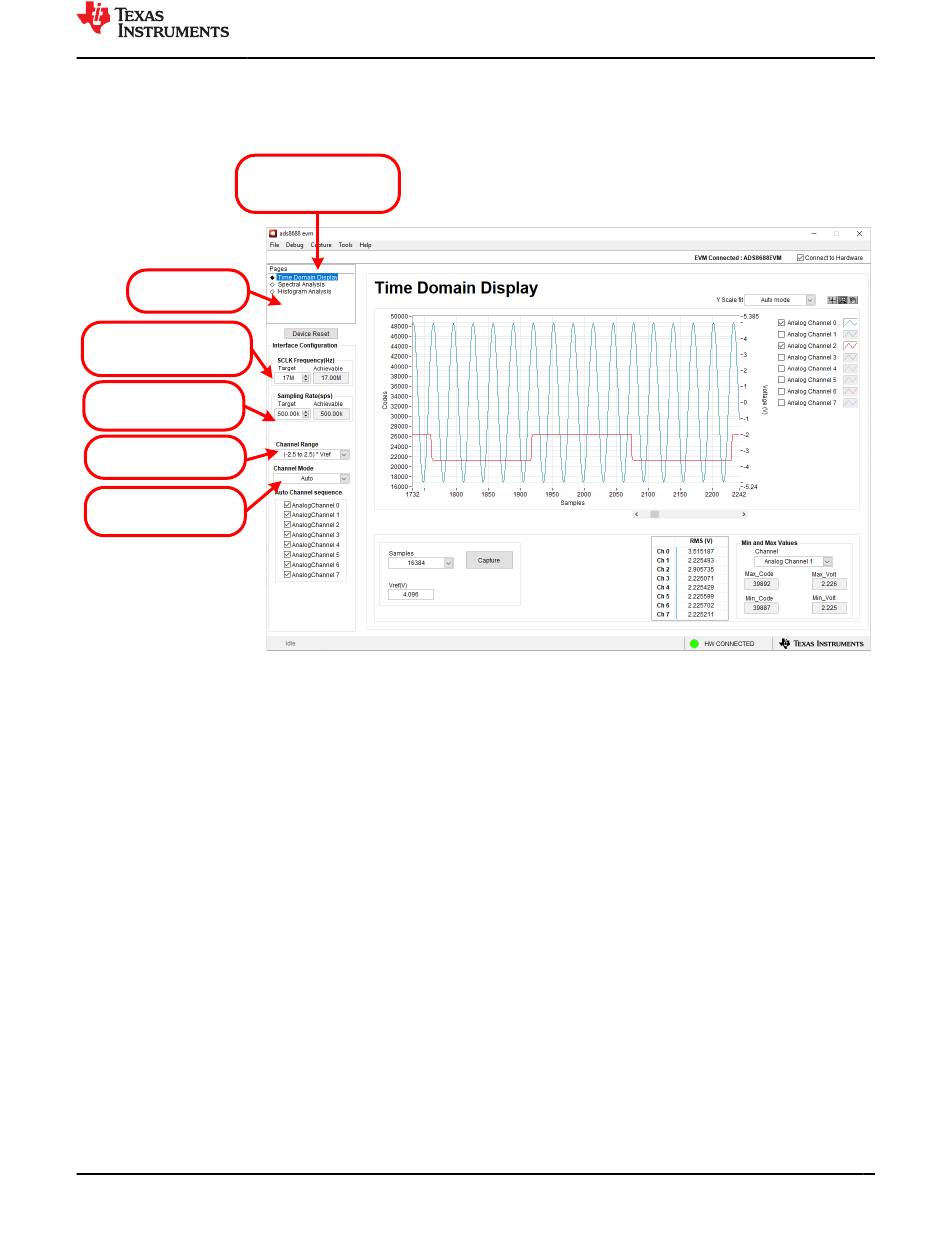

7.3 EVM GUI Global Settings for ADC Control
Figure 7-5
shows that the EVM Global controls are located on the right hand side of the GUI. These controls
choose the page display, SPI Mode, SCLK frequency, and sampling frequency.
EVM GUI Global Settings for ADC
Control are on the left hand side
Pages selects the
analysis display.
The SCLK frequency is set here. It is
limited by the ^Sampling Rate_
below.
The maximum sampling rate is
500kHz for this device.
The ^Channel Range_ sets the
input voltage range.
Auto mode will scan the selected
channels below. Manual allows
selection of one channel.
SBAU230C – AUGUST 2014 – REVISED MARCH 2021
Submit Document Feedback
of the GUI.
Figure 7-5. EVM GUI Global Input Controls
Copyright © 2021 Texas Instruments Incorporated
EVM Operation
ADS8688EVM-PDK Evaluation Module
13
