7.3 Time Domain Display

The time domain display tool allows visualization of the ADC response to a given input signal. This tool is useful
for both studying the behavior of and debugging any gross problems with the ADC or drive circuits. Trigger a
data capture of the selected number of samples from the ADS1263EVM by using the Capture button in
7-4. The captured data are subject to the current interface mode settings. The time-domain plot has Samples
on the x-axis and by default shows the corresponding Codes on the y-axis relative to the specified reference
voltage. The y-axis units can be changed to Voltage/Temp using the Unit control in the bottom right. The Temp
units are only used with the Temp channel selection.
The Measurements control on the bottom of
standard deviation. Switching pages to any of the Analysis tools described in the subsequent sections causes
calculations to be performed on the same set of data.
SBAU206B – APRIL 2015 – REVISED MAY 2023
Submit Document Feedback
Figure 7-4

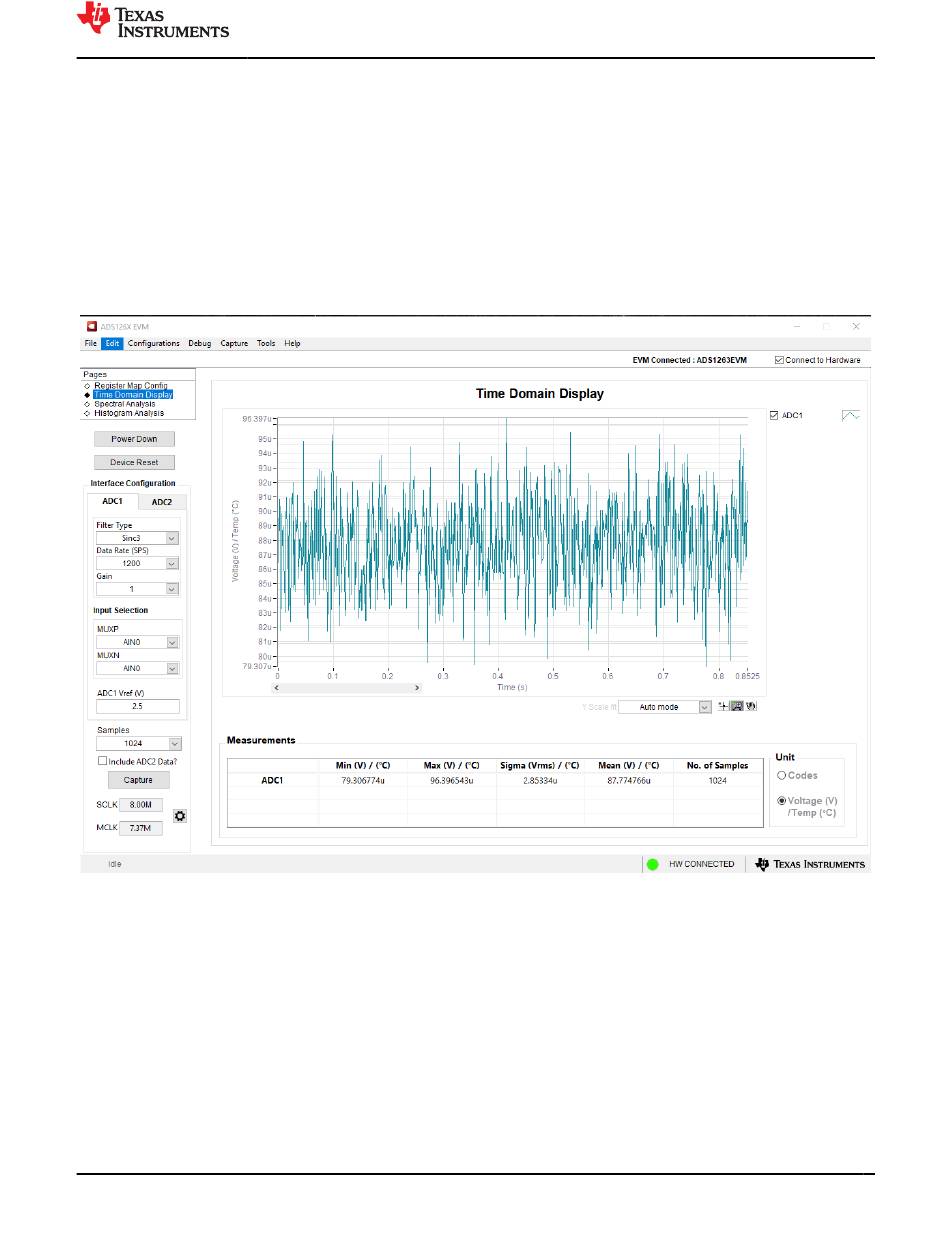

Figure 7-4. ADS1263EVM GUI Time Domain Display Page
Copyright © 2023 Texas Instruments Incorporated
calculates the code range, the mean code, and the code
