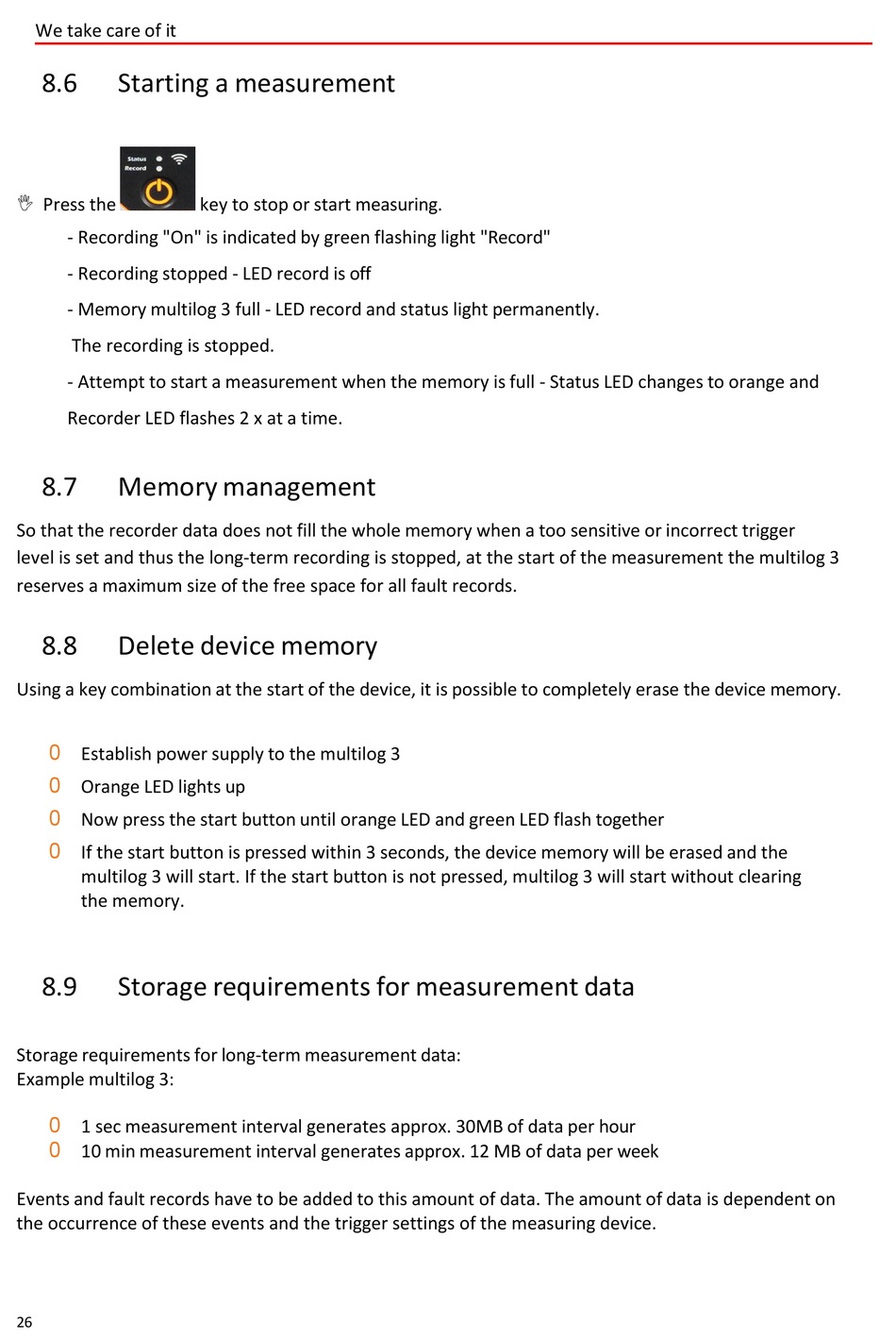

8.6

Starting a measurement

 Press the
- Recording "On" is indicated by green flashing light "Record"
- Recording stopped - LED record is off
- Memory multilog 3 full - LED record and status light permanently.
The recording is stopped.
- Attempt to start a measurement when the memory is full - Status LED changes to orange and
Recorder LED flashes 2 x at a time.
8.7

Memory management

So that the recorder data does not fill the whole memory when a too sensitive or incorrect trigger
level is set and thus the long-term recording is stopped, at the start of the measurement the multilog 3
reserves a maximum size of the free space for all fault records.
8.8

Delete device memory

Using a key combination at the start of the device, it is possible to completely erase the device memory.
0
Establish power supply to the multilog 3
0
Orange LED lights up
0
Now press the start button until orange LED and green LED flash together
0
If the start button is pressed within 3 seconds, the device memory will be erased and the
multilog 3 will start. If the start button is not pressed, multilog 3 will start without clearing
the memory.
8.9

Storage requirements for measurement data

Storage requirements for long-term measurement data:
Example multilog 3:
0
1 sec measurement interval generates approx. 30MB of data per hour
0
10 min measurement interval generates approx. 12 MB of data per week
Events and fault records have to be added to this amount of data. The amount of data is dependent on
the occurrence of these events and the trigger settings of the measuring device.
26
key to stop or start measuring.
