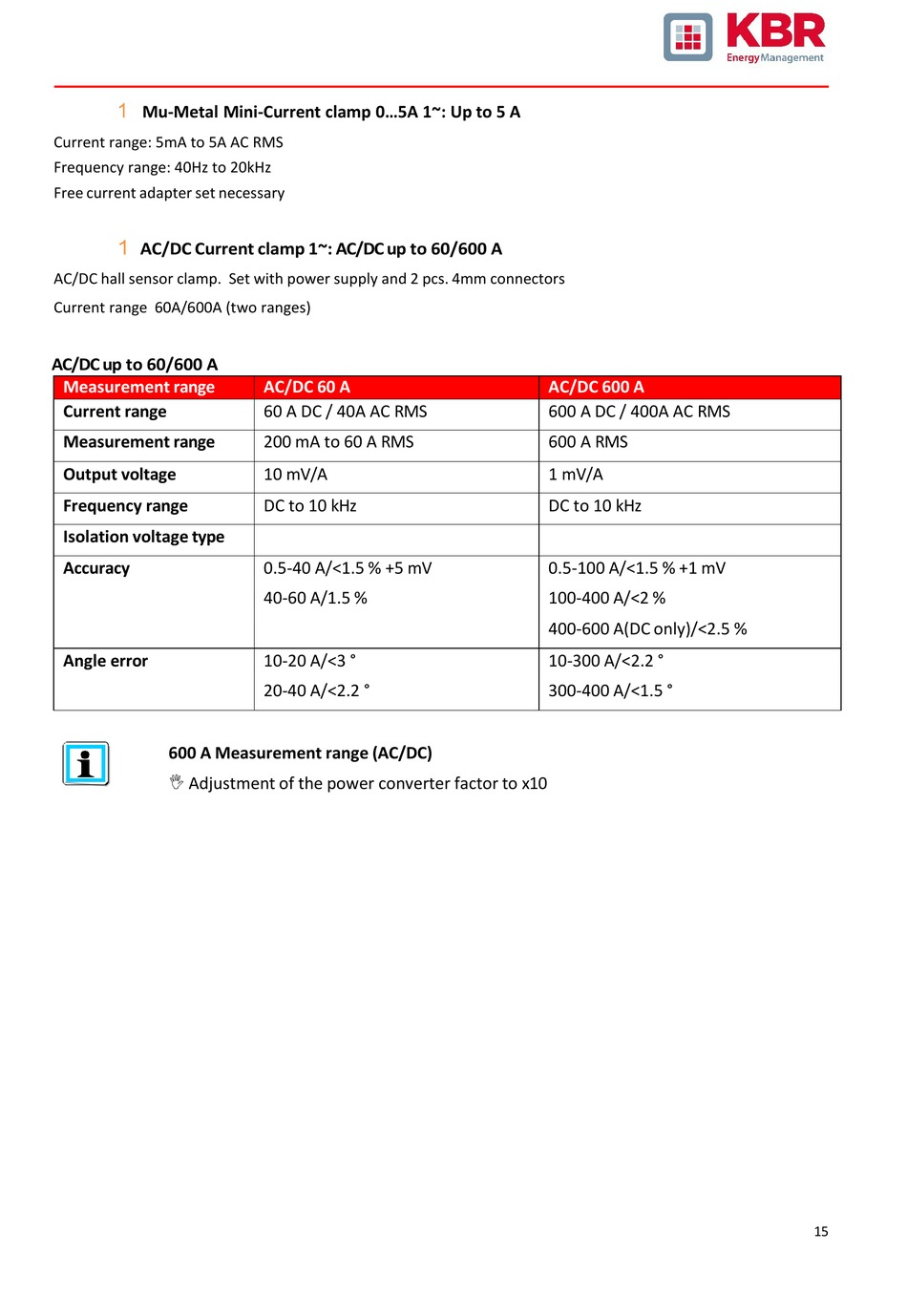

KBR multilog 3 Operating Manual page 15

1
Mu-Metal Mini-Current clamp 0...5A 1~: Up to 5 A
Current range: 5mA to 5A AC RMS
Frequency range: 40Hz to 20kHz
Free current adapter set necessary
1
AC/DC Current clamp 1~: AC/DC up to 60/600 A
AC/DC hall sensor clamp. Set with power supply and 2 pcs. 4mm connectors
Current range 60A/600A (two ranges)
AC/DC up to 60/600 A
Measurement range
Current range
Measurement range
Output voltage
Frequency range
Isolation voltage type
Accuracy
Angle error
600 A Measurement range (AC/DC)
 Adjustment of the power converter factor to x10
AC/DC 60 A
60 A DC / 40A AC RMS
200 mA to 60 A RMS
10 mV/A
DC to 10 kHz
0.5-40 A/<1.5 % +5 mV
40-60 A/1.5 %
10-20 A/<3 °
20-40 A/<2.2 °
AC/DC 600 A
600 A DC / 400A AC RMS
600 A RMS
1 mV/A
DC to 10 kHz
0.5-100 A/<1.5 % +1 mV
100-400 A/<2 %
400-600 A(DC only)/<2.5 %
10-300 A/<2.2 °
300-400 A/<1.5 °
15
