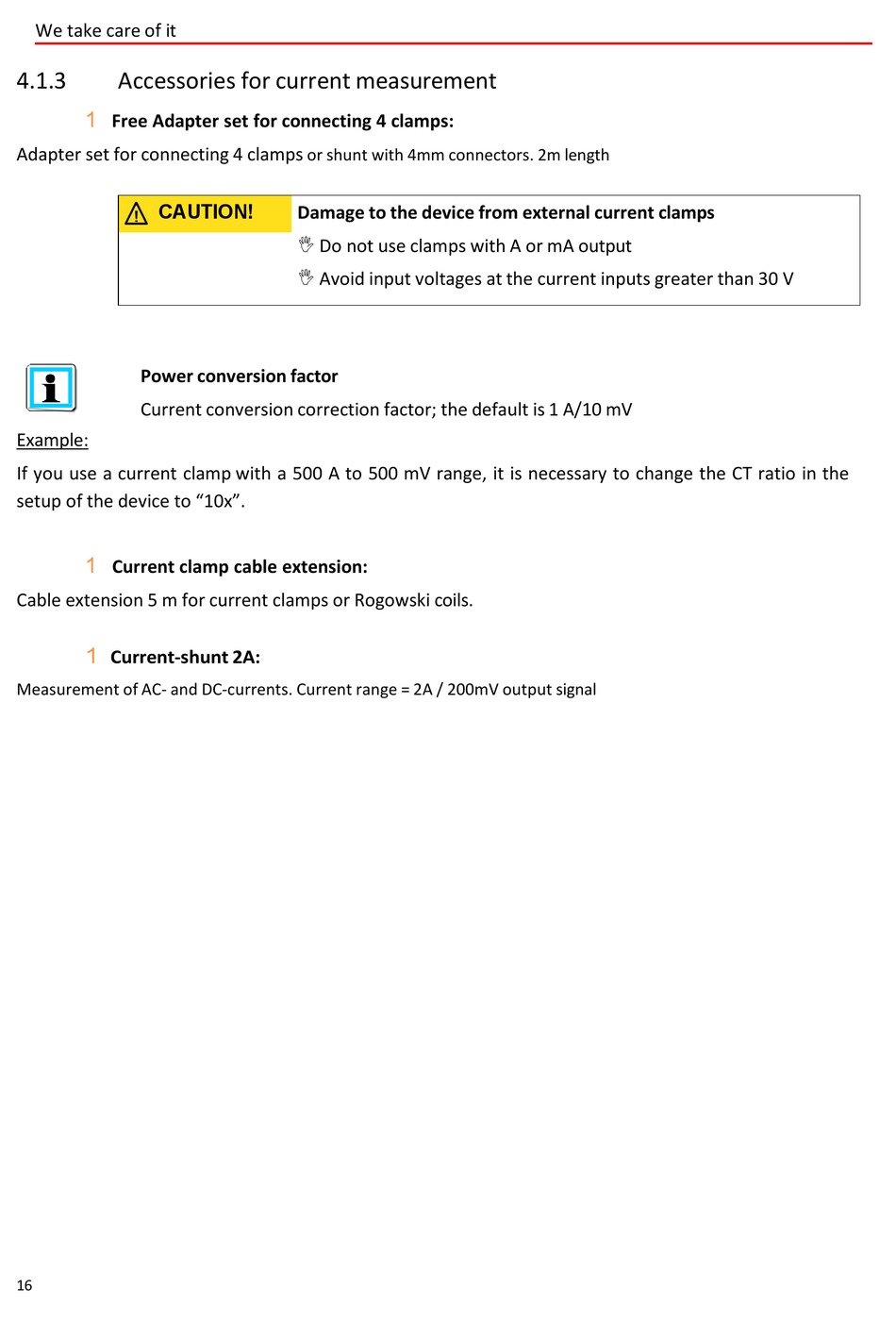

4.1.3

Accessories for current measurement

1
Free Adapter set for connecting 4 clamps:
Adapter set for connecting 4 clamps
CAUTION!
Power conversion factor
Current conversion correction factor; the default is 1 A/10 mV
Example:
If you use a current clamp with a 500 A to 500 mV range, it is necessary to change the CT ratio in the
setup of the device to "10x".
1
Current clamp cable extension:
Cable extension 5 m for current clamps or Rogowski coils.
1
Current-shunt 2A:
Measurement of AC- and DC-currents. Current range = 2A / 200mV output signal
16
or shunt with 4mm connectors. 2m length
Damage to the device from external current clamps
 Do not use clamps with A or mA output
 Avoid input voltages at the current inputs greater than 30 V
