8.3

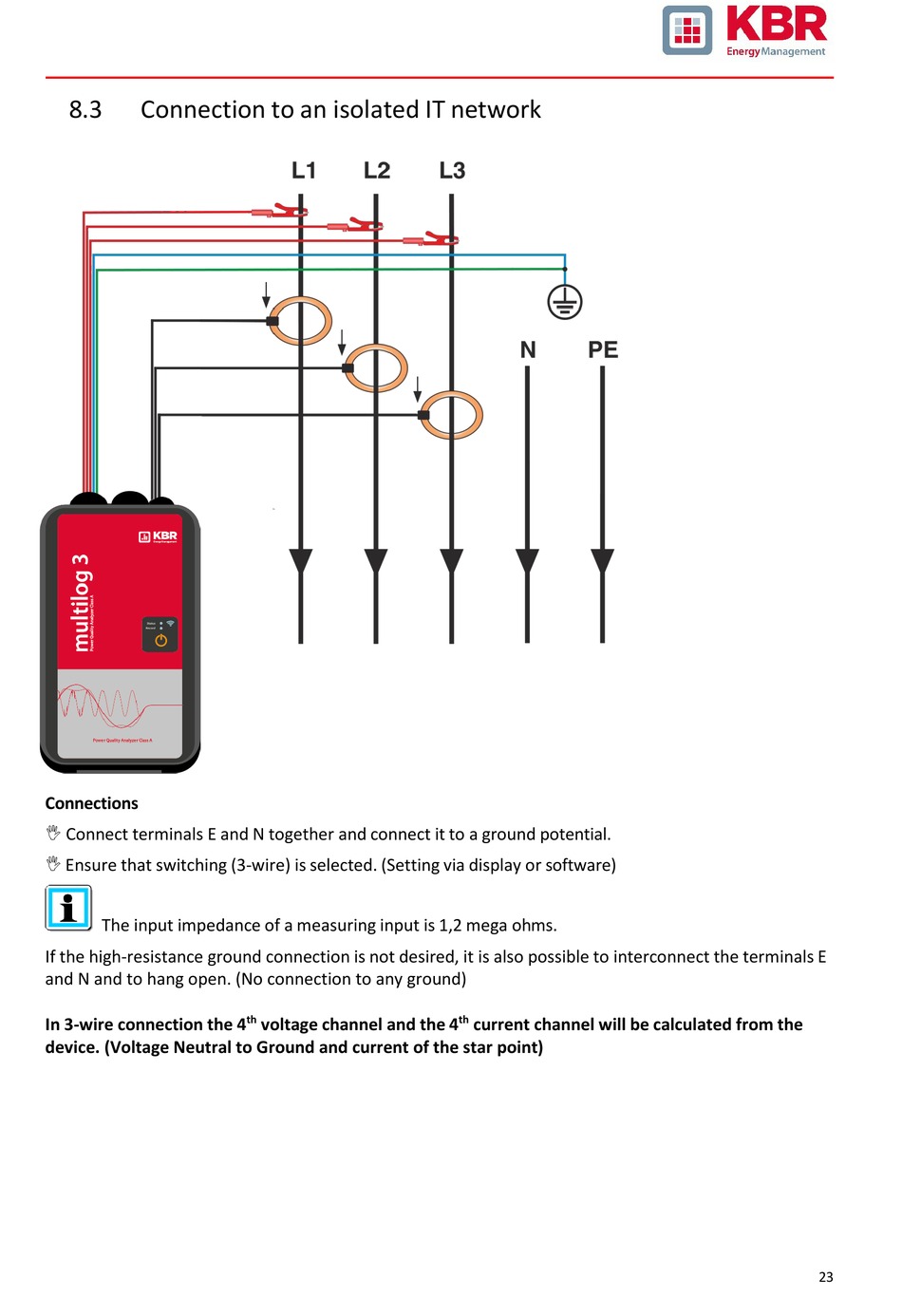

Connection to an isolated IT network

Connections
 Connect terminals E and N together and connect it to a ground potential.
 Ensure that switching (3-wire) is selected. (Setting via display or software)
The input impedance of a measuring input is 1,2 mega ohms.
If the high-resistance ground connection is not desired, it is also possible to interconnect the terminals E
and N and to hang open. (No connection to any ground)
In 3-wire connection the 4 th voltage channel and the 4 th current channel will be calculated from the
device. (Voltage Neutral to Ground and current of the star point)
