A 2 B Interrupt ( Ds2); Power Status Indicator ( Ds1, Ds3, Ds5) - Analog Devices EVAL-AD2437B1MZ Manual

LEDs
DS6
DS4

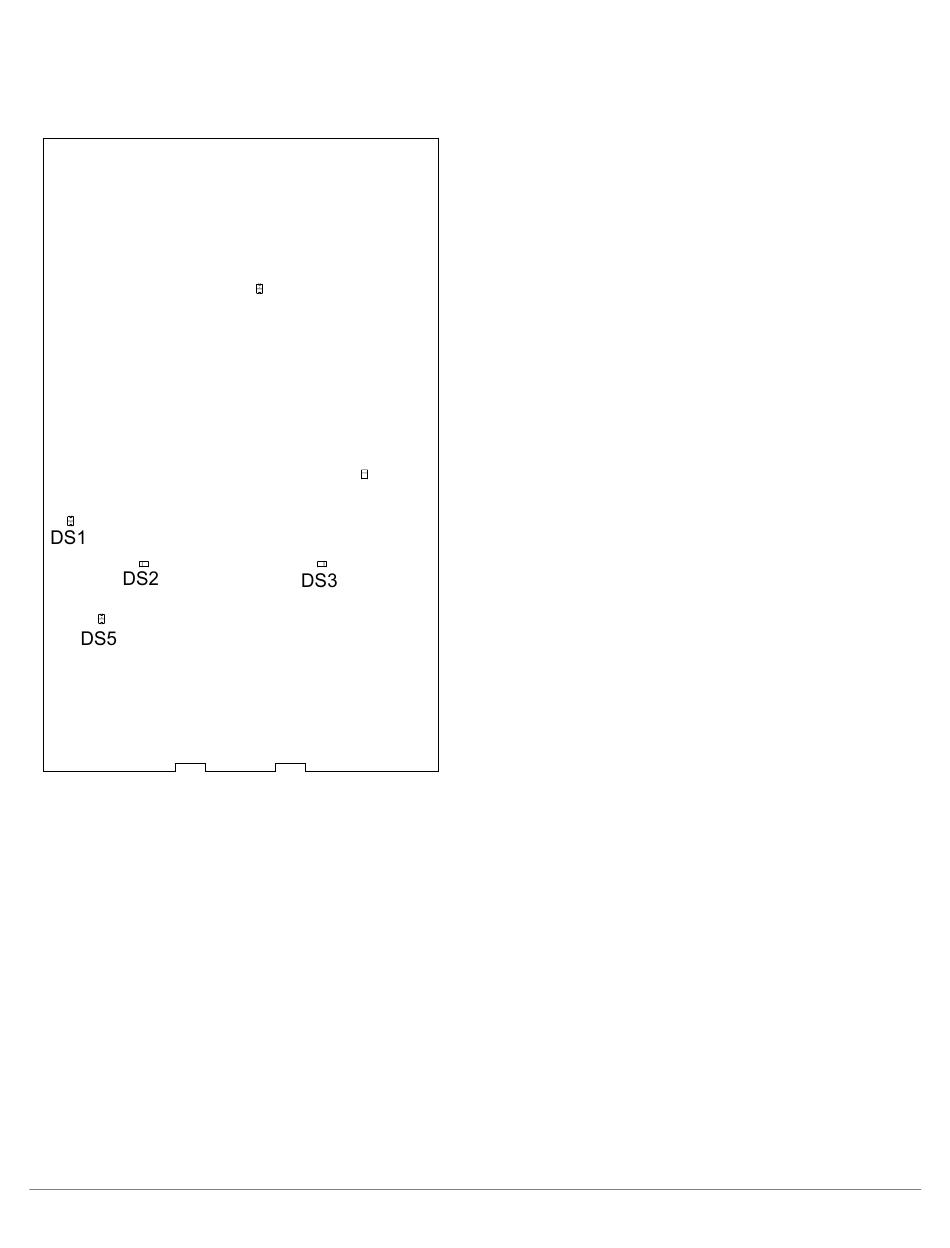

Figure 3-3: LED Locations
2
A B Interrupt ( DS2)
2
The A B interrupt LED is driven by the AD2437. The LED is turned on when the IRQ pin drives it high.

Power Status Indicator ( DS1, DS3, DS5)

The Status Indicators indicate Supplies health i.e. They will be on when the respective supply will be available on
board.
DS5 : +5.0V
DS1 : +3.3V
DS3 : Power ON
3–6 EVAL-AD2437B1MZ Manual
