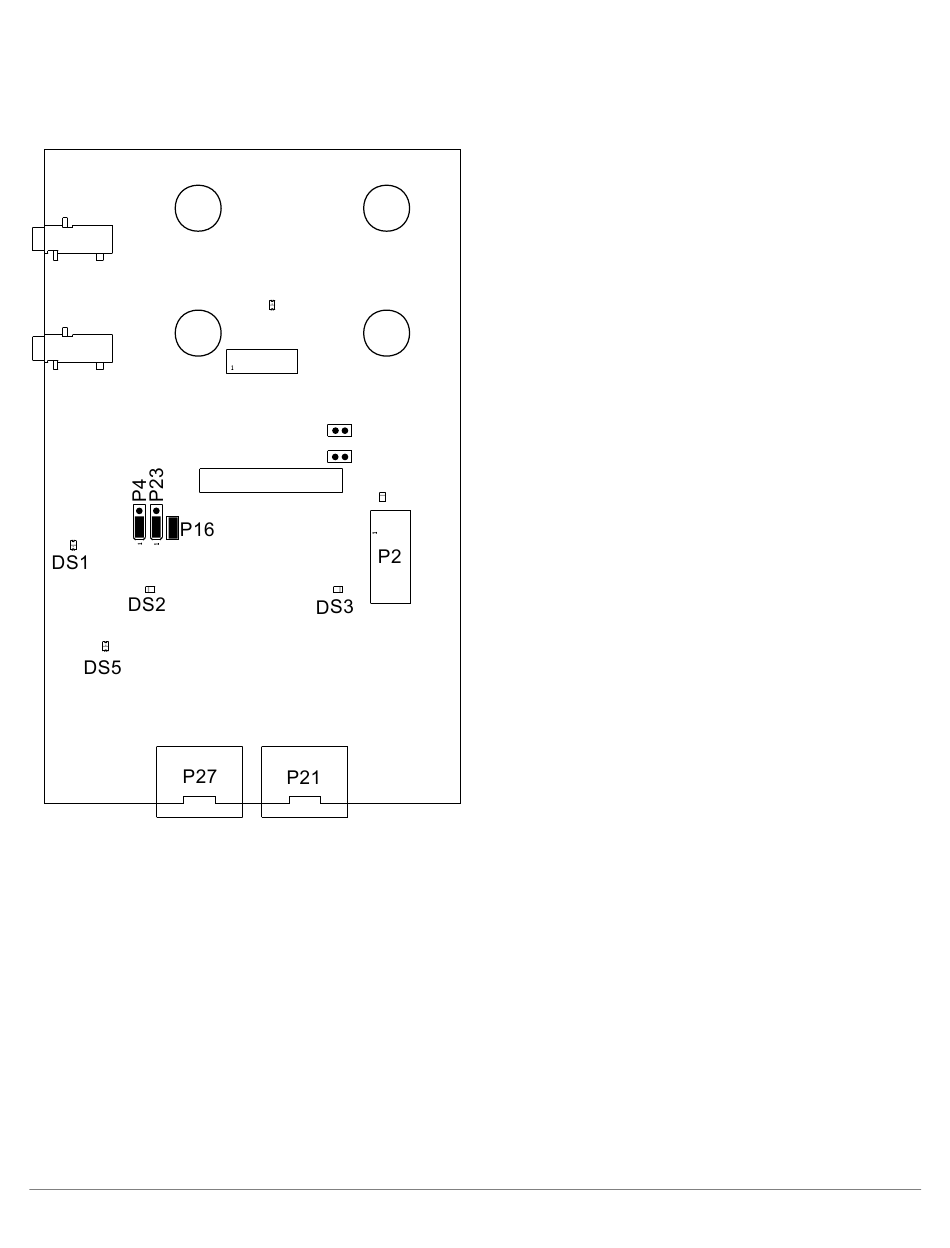

Figure 2-1: Default Hardware Setup

Reference Design Information

A reference design info package is available for download on the Analog Devices Web site. The package provides
information on the schematic design, layout, fabrication, and assembly of the board.
The information can be found at:
https://www.analog.com/en/design-center/evaluation-hardware-and-software/evaluation-boards-kits/EVAL-
AD2437B1MZ.html
