Connectors
P46
P7
P45
P20

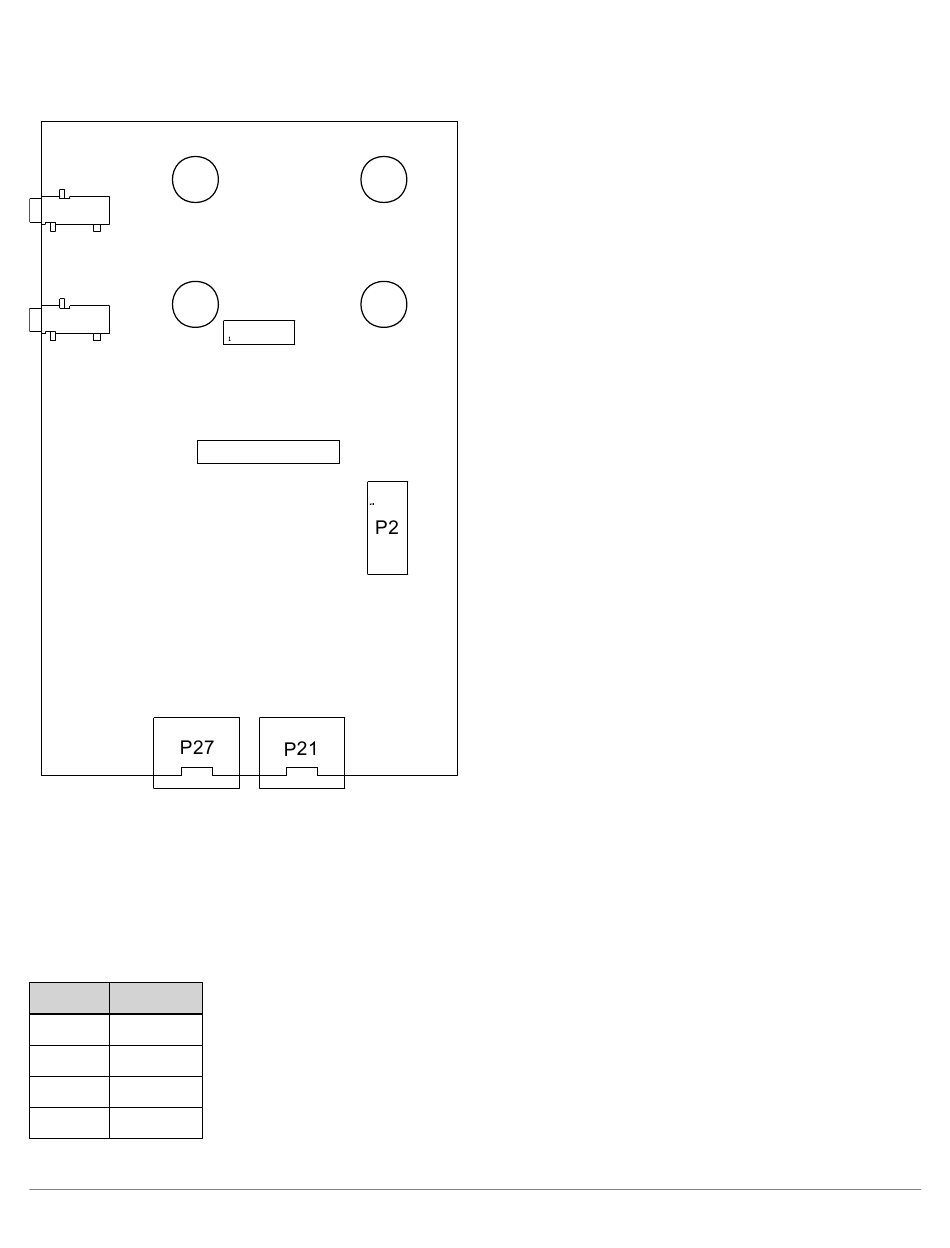

Figure 3-1: Connector Locations
Stereo Connectors( TP5-TP8 )
TP5-TP8are used to connect stereo speakers to the board. It is not recommended that speaker impedance be lower
than 8 Ohms.
Connector Speaker Side
TP5
SPKR L-
TP6
SPKR L+
TP7
SPKR R-
TP8
SPKR R+
3–2
P47
P48
P5
P1
