Chapter 2: Jumpers and Connectors

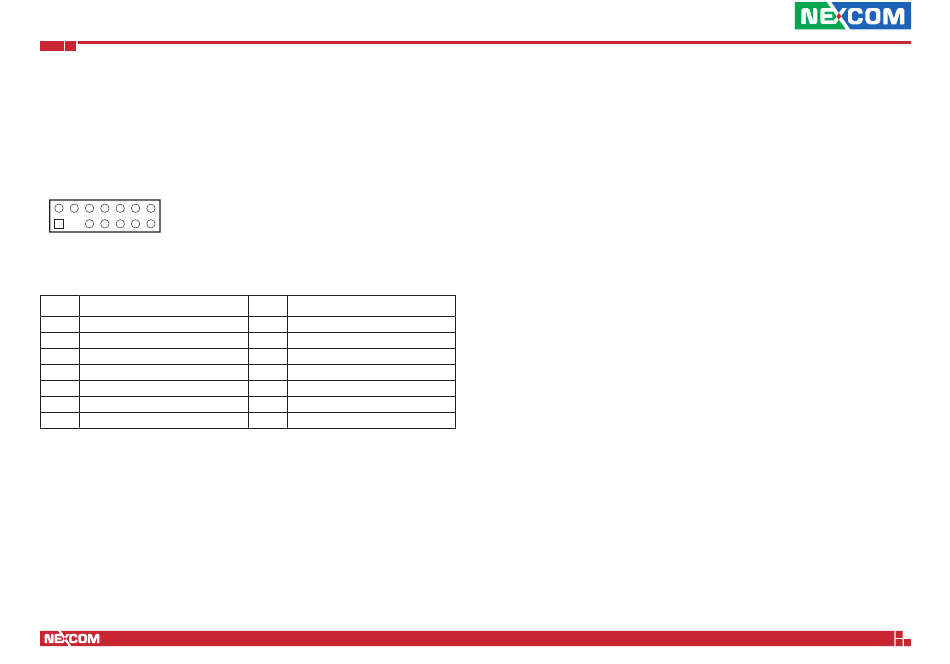

TPM Header
Connector type: 2x7 14-pin header
Connector location: JP15
2
14
1
13
Pin
Definition
1
GND
3
NC
5
LPC_LAD2_ESPI_IO2_TPM
7
LPC_LAD1_ESPI_IO1_TPM
9
GND
11
IRQ_LPC_SERIRQ_ESPI_CS1_N_TPM
13
GND
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
CLK_24M_66M_LPC0_ESPI_TPM
4
LPC_LFRAME_N_ESPI_CS0_N_TPM
6
RST_R1_N_TPM
8
LPC_LAD3_ESPI_IO3_TPM
10
LPC_LAD0_ESPI_IO0_TPM
12
P3V3
14
GND
16
