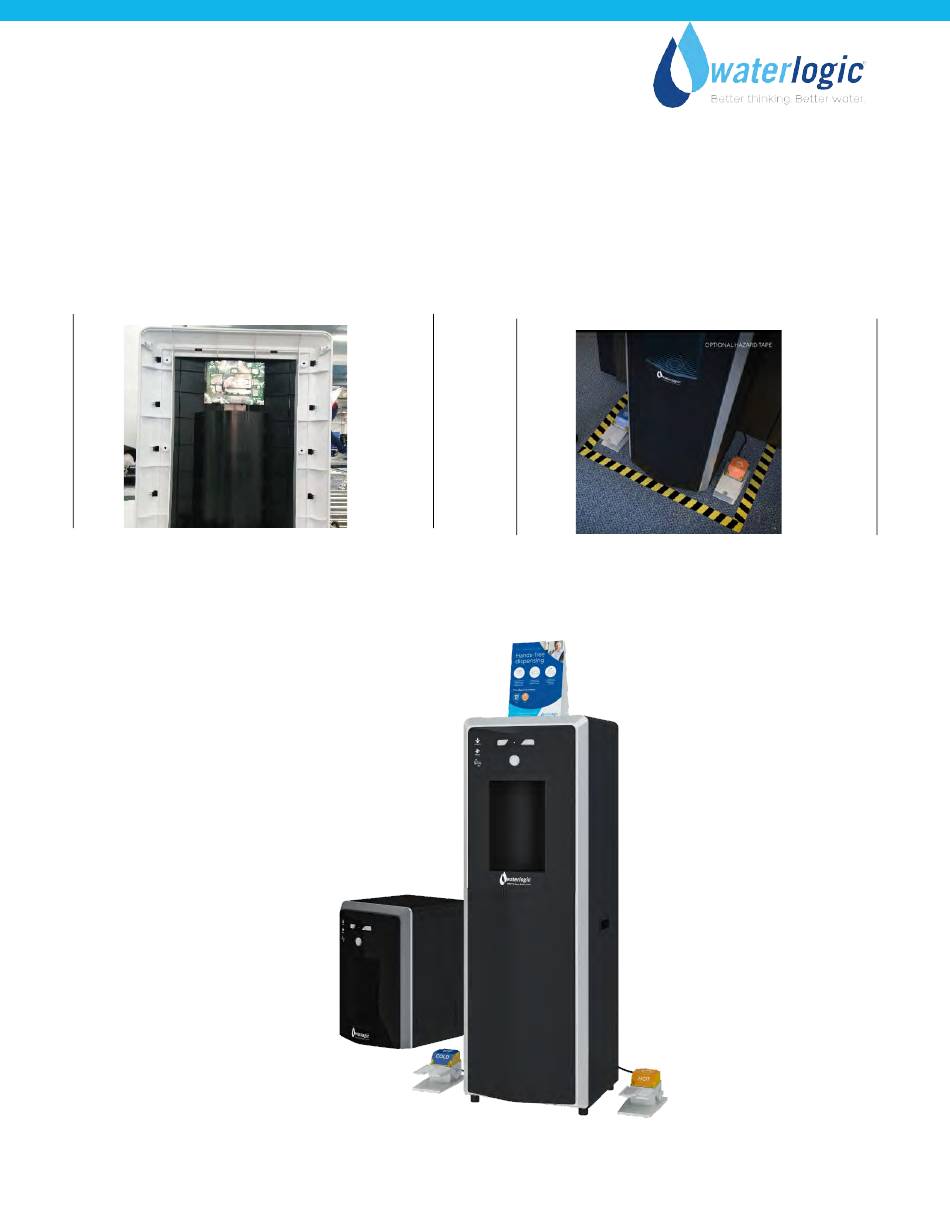

If required, remove existing UI PCB and replace with the new pedal kit PCB (Ensure the correct PCB
kit number us used for your market). Place the appropriate labels on the pedals to ensure the correct
pedal matches with the correct water option. Place the pedals either side of the machine and
carefully feed the foot pedal harnesses through the grommet. Connect the pedal harness to the
correct water option at the PCB. It is recommended that the pedals are located in such a way that
they do not pose any trip hazard or safety risk and the location of the pedals is cornered off by hazard
tape.
WL2FL Manual
Page 78 – Revision AUS-04-23
