Module Programming For Convenience Only (Skip Transponder) - Directed DB3 Installation Manual

Module programming for convenience features only (skip transponder programming)
Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.
1

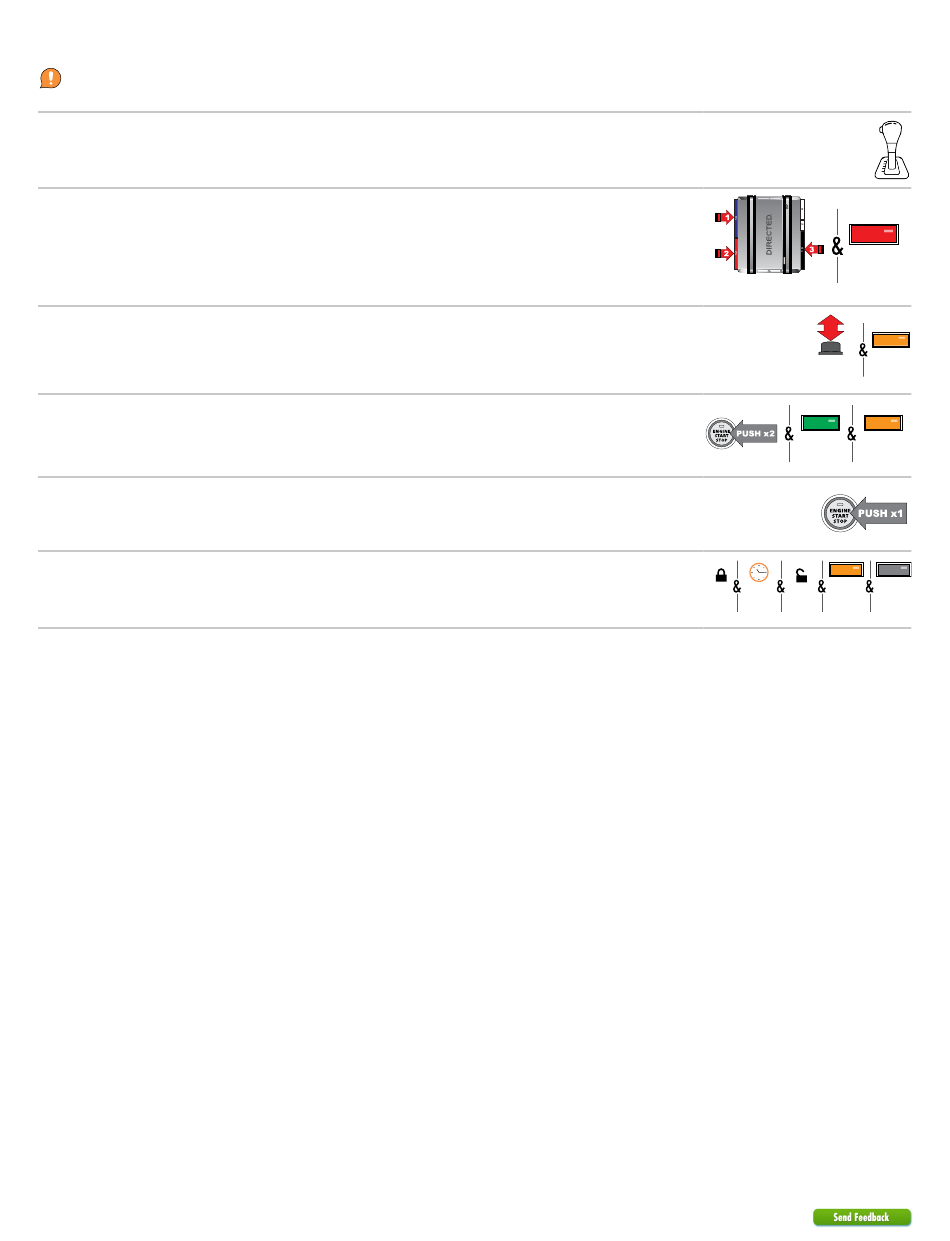

Ensure vehicle is in a safe location and cannot move forward during programming.
The harnesses must be connected in this exact order:
1. Connect the 14-pin.
2
2. Connect the 12-pin.
3. Connect the 10-pin.
When the LED turns on solid red, proceed with the next step.
Press the programming button five (5) times.
3
The LED turns ON solid orange.
Press the Push-to-Start (PTS) button twice (2) to turn the ignition ON.
4
The LED will flash green then orange.
5
Press the PTS button once (1) more to turn the ignition OFF.
Close all doors including trunk/tailgate then press Lock on the OEM remote.
6
Wait two (2) seconds then press Unlock.
The LED turns ON solid orange for 3 seconds then shuts OFF.
You have successfully completed the module programming sequence.
