Module Programming For Convenience Only (Skip Transponder) - Directed Directechs DB3 Installation Manual

Module programming for convenience features only (skip transponder programming)
Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.
To connect the module:
Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles
1
equipped with a manual transmission, make sure the gearshift is in the neutral position.

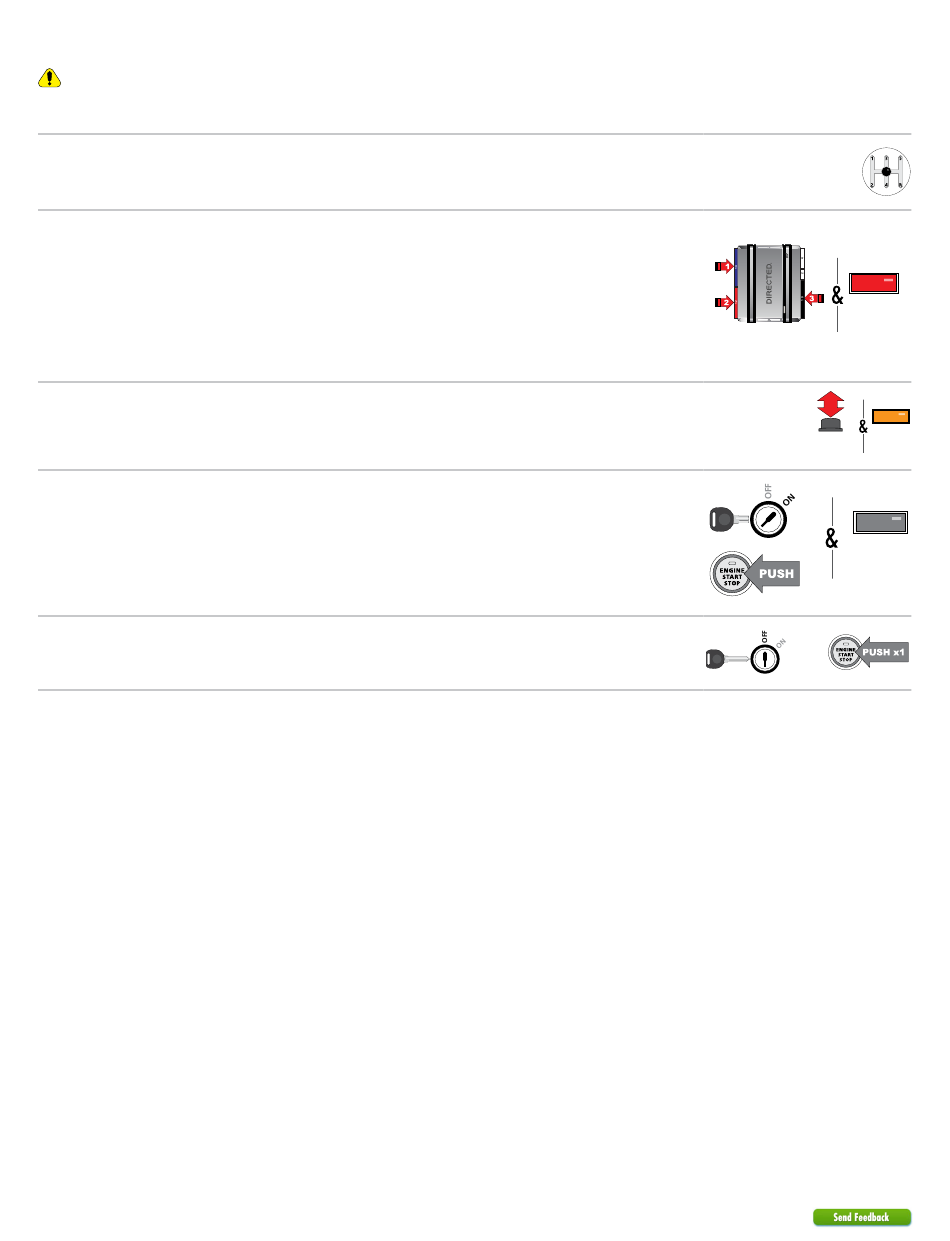

The harnesses must be connected in this exact order:
1. Connect the 14-pin.
2. Connect the 12-pin.
2
3. Connect the 10-pin.
When the LED turns on solid red, proceed with the next step.
Press the programming button five (x5) times.
3
The LED turns ON solid orange.
4
Turn ignition ON and wait until the LED turns OFF.
5
Turn ignition OFF.
You have successfully completed the module programming sequence.
13
403.MIT4 2.07 2012 Mitsubishi Galant
