QUICK START GUIDE - V-SCALE PLUS

ANALOG WAY
CONNECTIONS:
Turn OFF all of your equipment before connecting.
Connect your video sources to the inputs 1, 2, 3 & 4 of the V-SCALE PLUS.
Connect your computer source to the input 5 of the V-SCALE PLUS.
Connect your display device (projector, plasma screen...) to the DISPLAY OUTPUTS (HD15 or DVI-I female
connectors) of the V-SCALE PLUS.
Connect the AC power supply cord to the V-SCALE PLUS and to an AC power outlet.
Turn ON the V-SCALE PLUS (rear panel switch). Then turn ON all your input sources and then your display device.

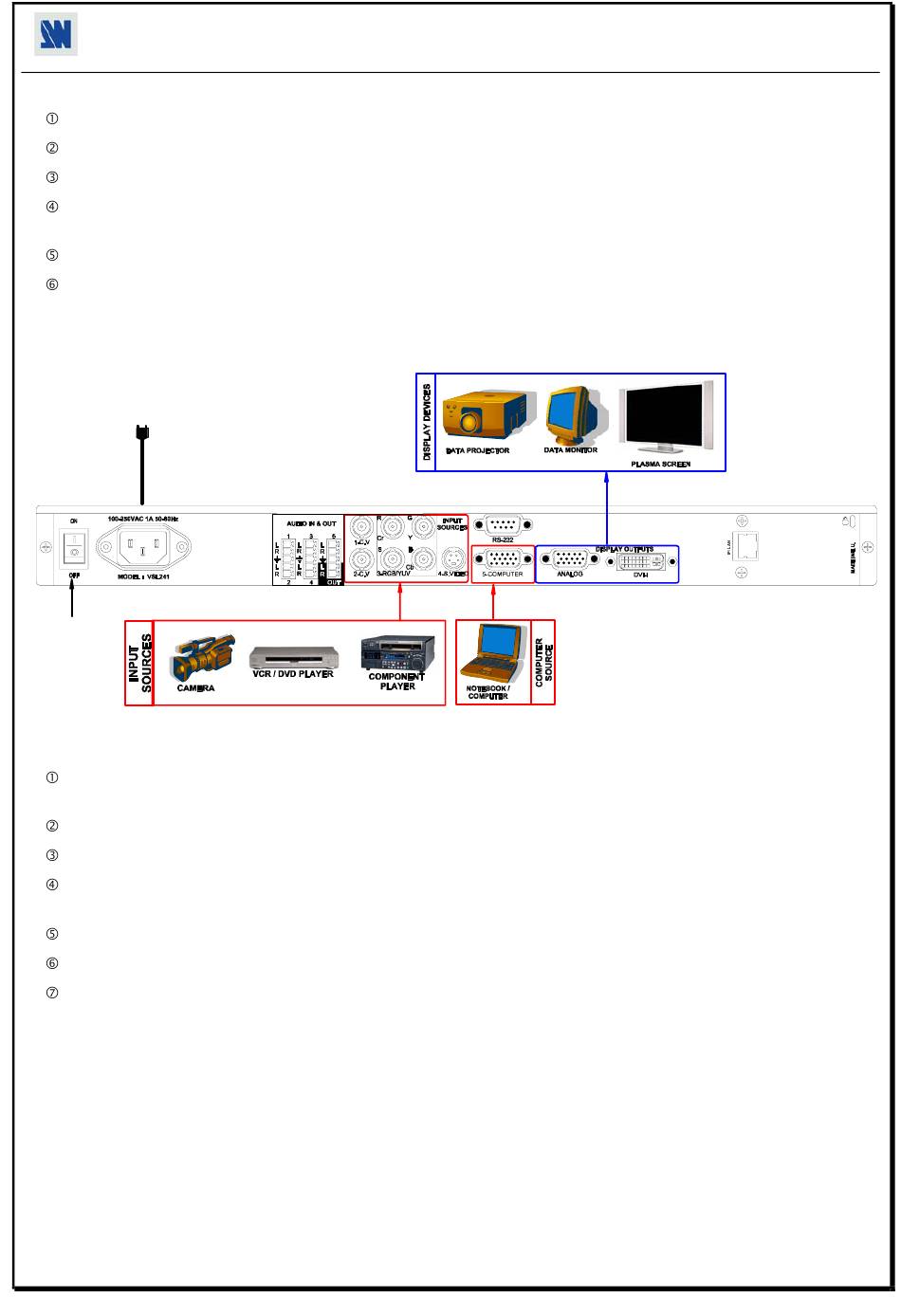

• V-SCALE PLUS connection diagram:
5
6
SETTINGS:
We recommend resetting the V-SCALE PLUS to all of its default values, with the front panel display menu
(CONTROL > default value > yes) before proceeding.
Select the input type connected to the INPUTS with the front panel display menu (INPUT > input type).
Select the output type with the front panel display menu (OUTPUT > output type).
Select the output format which corresponds to your display device with the front panel display menu (OUTPUT >
output format).
Select one of the output rate available with the front panel display menu (OUTPUT > output rate).
Select the output sync type with the front panel display menu (OUTPUT > output sync).
For each VIDEO source connected to the V-SCALE PLUS, make the following adjustments:
- Select the source you want to adjust (with the front panel "INPUT SELECTION" buttons).
- Select the aspect ratio of your input source with the front panel display menu (IMAGE > aspect ratio in).
- Adjust the image in your display device with the position & size functions (IMAGE > pos settings).
- If needed, make the others adjustments, available in the IMAGE menu (color, brightness...).
3
2
TM
4
EDITION : 05/07
