Chapter 5 : UPDATING THE DEVICE

The V-SCALE, V-SCALE C & V-SCALE PLUS can be updated thanks a computer (PC) via its RS-232 communication port
(or via its LAN communication port for the VSL241 with the OPT-LAN option).

5-1. CONNECTIONS

Connect the device to the computer used for the update via the desired communication port.
• For the RS232 communication port: Connect the RS232 connector of the device to the serial port of your
computer with a DB9 M/F straight cable.
• For the LAN communication port: Connect the RJ45 connector of the device to your network according to your
installation. Then with the front panel display menu configure the LAN communication port (CONTROL > LAN
setup) and activate the LAN communication port (CONTROL > RS232/LAN port > LAN).
Power ON the device.

5-2. UPDATE INSTRUCTIONS

Power ON the device.

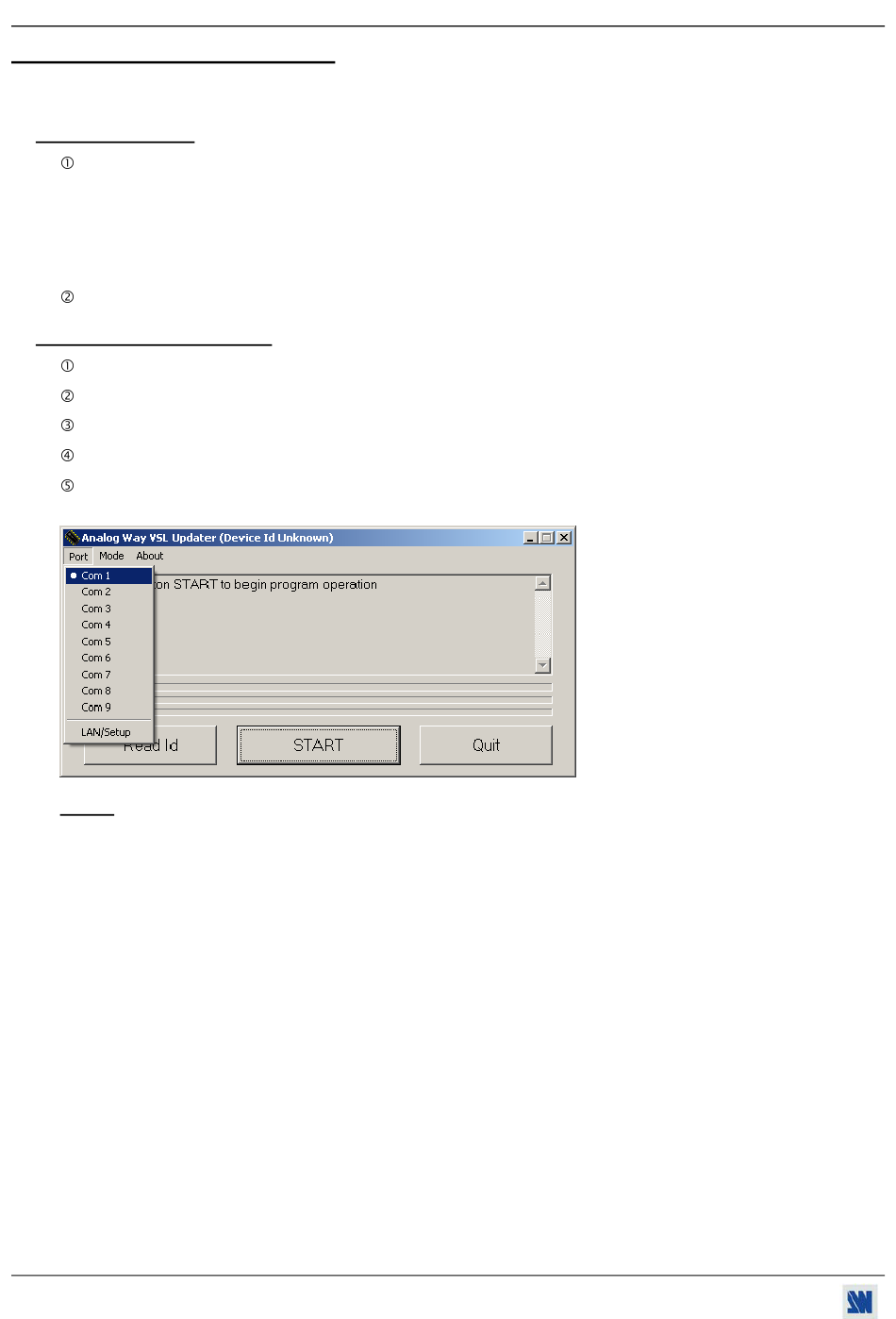

Open the file: VSL Update.exe (in Start > Program > ANALOGWAY > VSL updater).
In the Port menu select the Com port connected to the device.
Click on START on the software. The update will start.
When the software displays: Program operation completed, click on the Quit button to close the update software.
Your device is now ready to work.
NOTE: The updater files are available on our web site: www.analogway.com
